(06-21) - AXLE - MOUNTING, -JEE0123289

Запчасти Case 721C (06-21) - AXLE - MOUNTING, -JEE0123289 (06) - POWER TRAIN

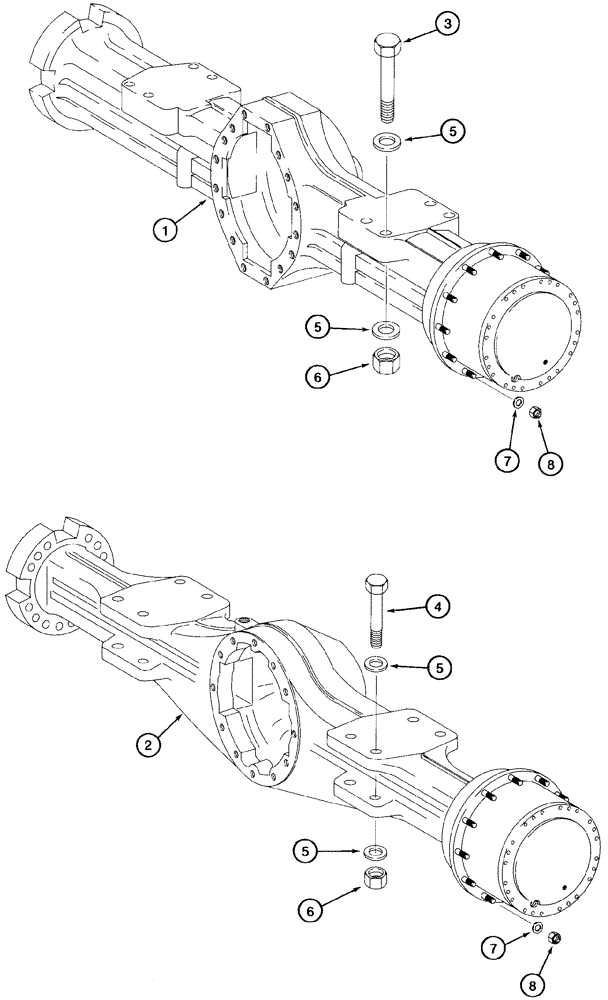

Схема запчастей Case 721C - (06-21) - AXLE - MOUNTING, -JEE0123289 (06) - POWER TRAIN
5
5
5
8
6
6
1
2
8
7
7
5
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

313143A1

AXLE HOUSING

ZF No 4474 605 051, See Figure 06-22, 06-32, 06-37 If Used

1шт.

2

313144A1

AXLE HOUSING

ZF No 4474 604 030, See Figure 06-22, 06-32, 06-37, If Used

1шт.

3

328-1688

BOLT,Hex, 1" - 14 x 5-1/2", Gr 8

Front Axle

8шт.

4

328-1696

BOLT,Hex, 1" - 14 x 6", Gr 8

Rear Axle

8шт.

5

496-21106

WASHER,1 1/16" x 2" x .209", HDN

32шт.

6

232-24416

NUT,1"-14, GC

16шт.

7

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

64шт.

8

429-1712

NUT,3/4"-16, G8, Hvy

64шт.
