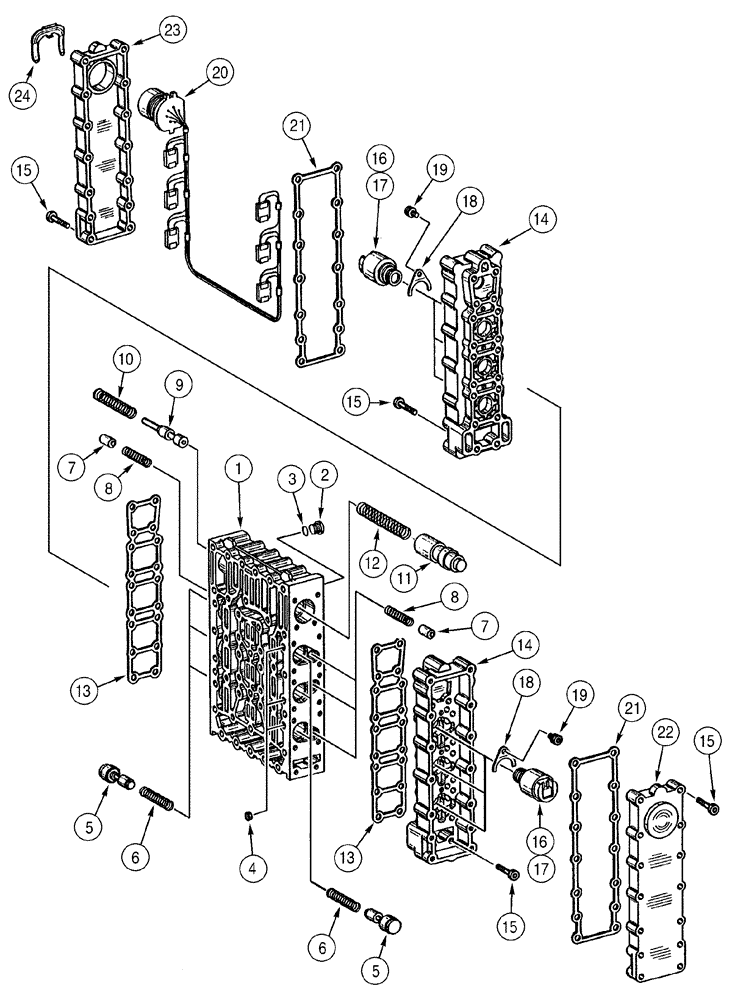

Запчасти Case 721C (06-16) - TRANSMISSION - VALVE, CONTROL (06) - POWER TRAIN

196173A1

REMAN-TRANSMISSION

Incl. See Figure 06-04, 06-20, 07-01

1шт.

196173A1R

REMAN-TRANSMISSION

721C CASE WHEEL LOADER

1шт.

196173A1C

CORE-TRANSMISSION

Return Number

1шт.

331759A1

SHIFTING UNIT

Incl. 1-24, Also Incl. See Figure 06-17

1шт.

1

330970A1

VALVE BODY

1шт.

2

330971A1

PLUG

Incl. 3

8шт.

3

S300491

O-RING,8mm ID x 1.5mm Width

8шт.

4

330972A1

PORT

6шт.

5

330973A1

SPOOL

6шт.

6

330974A1

COMPRESSION SPRING

6шт.

7

330975A1

SPOOL

6шт.

8

330976A1

COMPRESSION SPRING

6шт.

9

330978A1

SPOOL

1шт.

10

330981A1

COMPRESSION SPRING

1шт.

11

330979A1

SPOOL

1шт.

12

330982A1

COMPRESSION SPRING

1шт.

13

330983A1

SEAL

2шт.

14

330984A1

LARGE PLATE

PLATE, LARGE

2шт.

15

330986A1

CAPSCREW,Flg, 5/16" - 18 x .625", Gr 8

64шт.

16

330987A1

REGULATOR

Pressure Regulator, Incl. 17, No Longer Used, Order 387558A1

6шт.

16

387558A1

REGULATOR

Pressure Regulator, Incl. 17, Replaces 330987A1

6шт.

17

335600A1

O-RING,13.5mm ID x 2mm Width

6шт.

18

S300554

LARGE PLATE

PLATE, LARGE Locating

6шт.

19

330955A1

CAPSCREW,M10 x 1.25 x 20mm

6шт.

20

330960A1

HARNESS

1шт.

21

330961A1

GASKET

2шт.

22

330962A1

COVER

Closed

1шт.

23

330963A1

COVER

Harness Adapter

1шт.

24

330964A1

SHIN

1шт.
