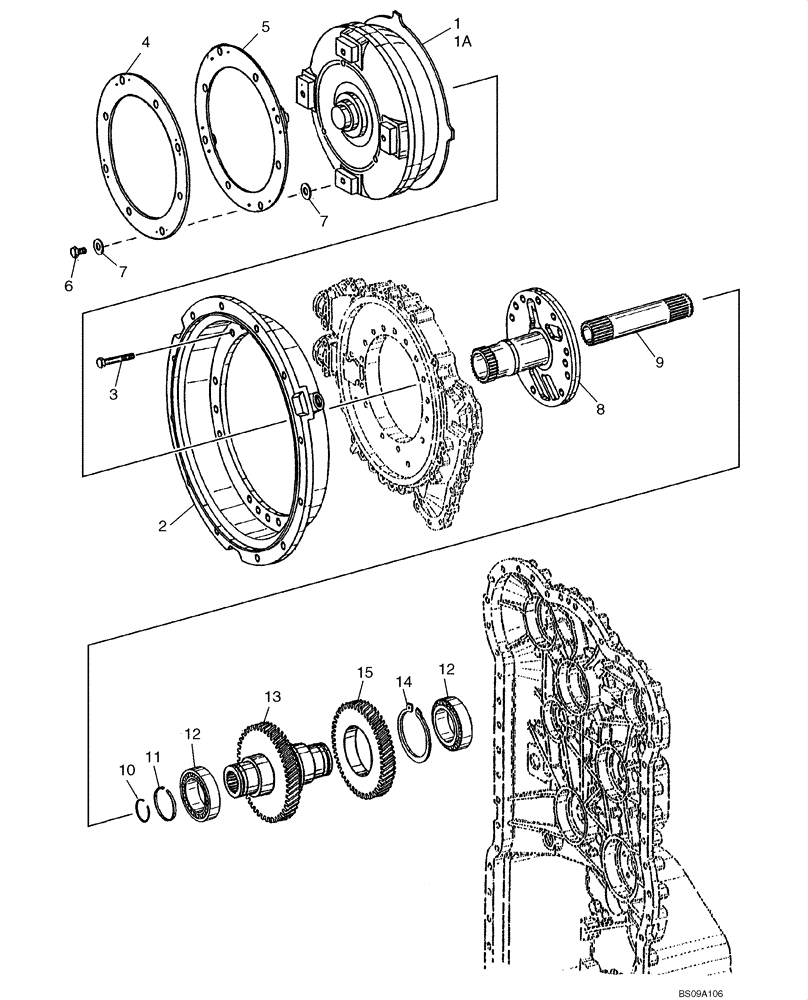

Запчасти Case 721C (06-04) - TRANSMISSION - CONVERTER, COVER AND INPUT SHAFT (06) - POWER TRAIN

196173A1

REMAN-TRANSMISSION

Incl. See Figure 06-04, 06-20, 07-01

1шт.

196173A1R

REMAN-TRANSMISSION

721C CASE WHEEL LOADER

1шт.

196173A1C

CORE-TRANSMISSION

Return Number

1шт.

84133228

REPAIR KIT

Torque Converter; Incl. Refs. 1A, 4A, 4B, 5

1шт.

1

331633A1

CONVERTER

No Longer Available, Order 84149615 Converter, Ref. 1A

1шт.

1a

84149615

TORQUE CONVERTER

1шт.

1a

84149615R

REMAN-TORQUE CONVERT

ER 721C

1шт.

1a

84149615C

CORE-TORQUE CONVERTR

CORE-TORQUE CONVERTER Return Number

1шт.

2

330783A1

CONVERTER

For Bolts and Washer for Cover See 16 and 17

1шт.

3

330784A1

CAPSCREW,Hex, M10 x 65mm

M10 x 65

18шт.

4

331504A1

DIAPHRAGM

1шт.

4a

87561065

PLATE

Not Illustrated; For Service Replacement of 331504A1 Diaphragm

1шт.

4b

87561066

PLATE

Not Illustrated; For Service Replacement of 331505A1 Diaphragm

1шт.

5

331505A1

DIAPHRAGM

1шт.

6

330788A1

SCREW

M12 x 18

4шт.

7

330789A1

WASHER

8шт.

8

330799A1

SHAFT

Stator

1шт.

9

330792A1

SHAFT

Turbine

1шт.

10

330793A1

SNAP RING

1шт.

11

330798A1

RING

1шт.

12

330796A1

BEARING, ROLLER

2шт.

13

331639A1

SHAFT

Input

1шт.

14

331641A1

RETAINER

1шт.

15

331640A1

GEAR

Input

1шт.

16

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

12шт.

17

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

12шт.
