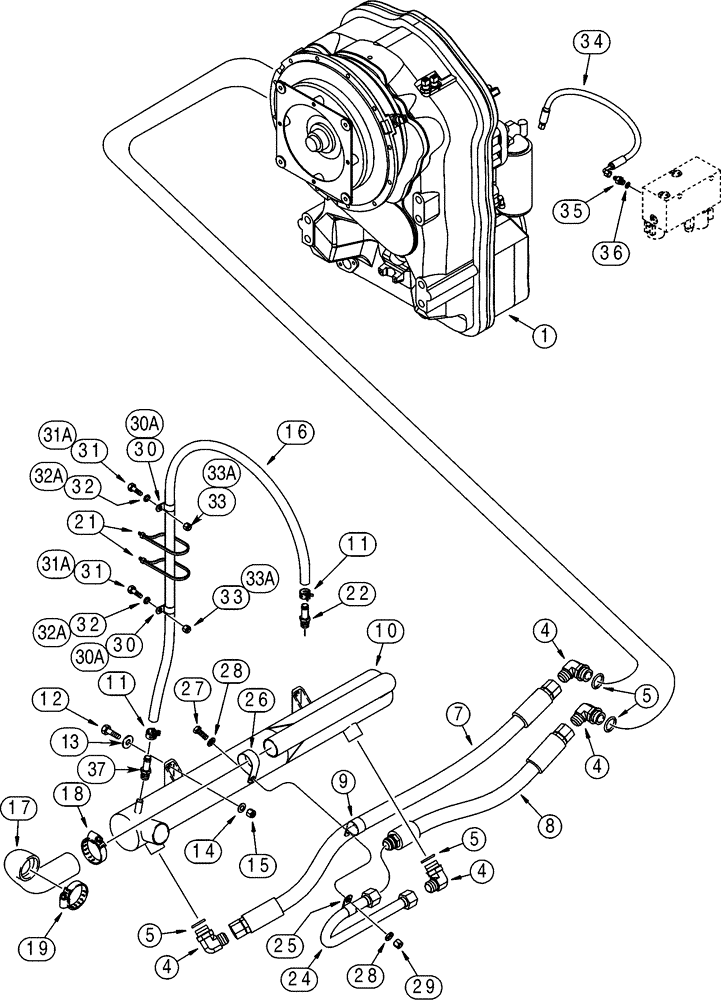

Запчасти Case 621C (06-004) - HYDRAULICS TRANSMISSION, NORTH AMERICA ONLY (06) - POWER TRAIN

1

196172A1

TRANSMISSION

ASSY., ZF No 4656 054 012, See Fig. 6-15 - 6-61, 7-3

1шт.

1

196172A1R

REMAN-TRANSMISSION

621C CASE WHEEL LOADER, ASSY (1/99-)

1шт.

1

196172A1C

CORE-TRANSMISSION

Return Number

1шт.

1

318999A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

1

318999A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

4

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 5

4шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

258762A1

HOSE ASSY.

46-1/2 in, (1181 mm)

1шт.

8

304824A1

HOSE ASSY.,25.4mm ID x 644mm L, SAE 100R1

25-1/8 in, (638 mm)

1шт.

9

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

1шт.

10

L128093

RADIATOR

COOLER oil

1шт.

11

1954736C1

HOSE CLAMP,#24

2шт.

12

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

13

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

2шт.

14

R52337

WASHER

Belleville

2шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

16

31-1293

HOSE,0.63" ID x 55.00"

5/8 ID x 57 in, cut from 97252CX, no longer used, Order: P/N 381861A1

1шт.

16

381861A1

HOSE,15.90 mm ID x 2086.00 mm

Cut from 97252CX, Replaces P/N 31-1293

1шт.

17

338481A1

LARGE HOSE

HOSE,LARGE

1шт.

18

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

1шт.

19

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

22

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

24

305275A1

TUBE,25.4 mm OD, 310, 102 mm Length

1шт.

25

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

26

515-25508

CLAMP,2", Insul, 1/2" Bolt

1шт.

27

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

No longer used, Order P/N 627-12040

1шт.

27

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

28

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

29

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

30

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

No longer used, Order P/N 515-22254

2шт.

30a

515-22254

CLAMP,1", Insul, 5/16" Bolt

Replaces P/N 515-23222

2шт.

31

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Used with Ref. 30

2шт.

31a

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

Used with Ref. 30A

2шт.

32

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

Used with Ref. 30

2шт.

32a

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Used with Ref. 30A

2шт.

33

832-10410

NUT,M10 x 1.5, Cl 8

Used with Ref. 30

2шт.

33a

832-10408

NUT,M8 x 1.25, Cl 8.8

Used with Ref. 30A

2шт.

34

300941A1

HOSE ASSY.

parking brake

1шт.

35

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. Ref. 36

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

37

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

CONNECTOR

1шт.
