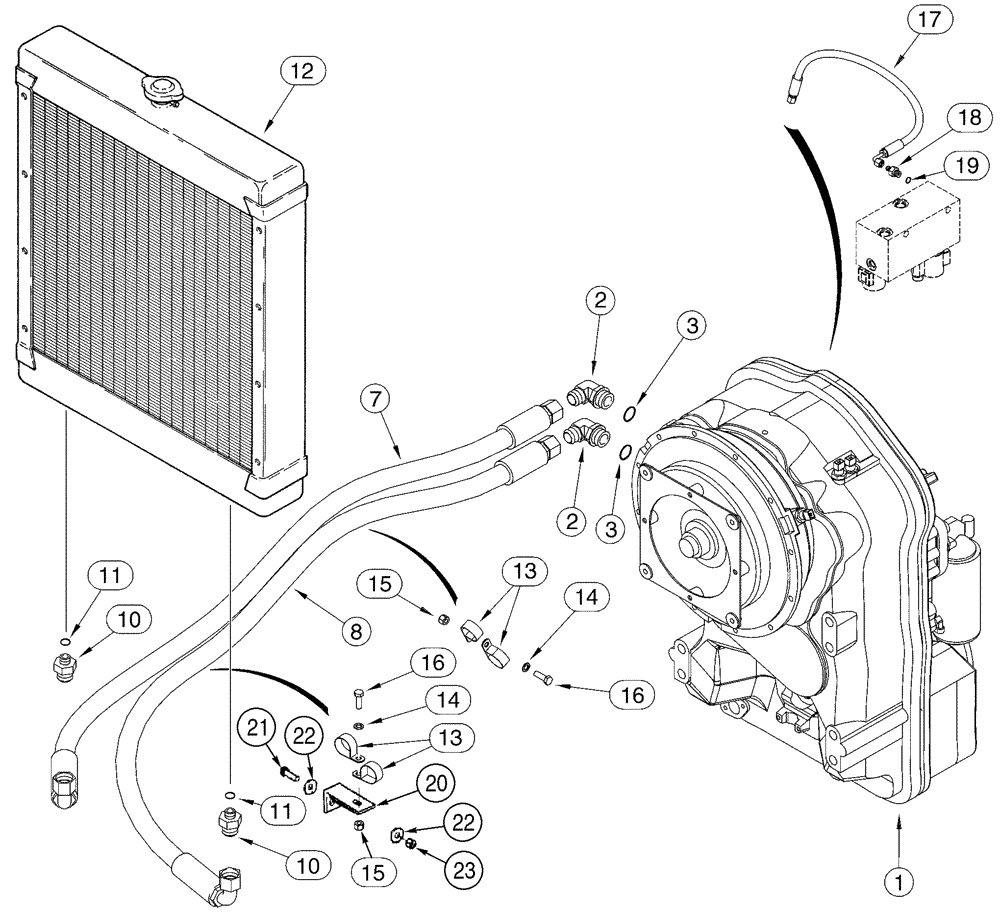

Запчасти Case 621C (06-002) - HYDRAULICS TRANSMISSION, NORTH AMERICA ONLY (06) - POWER TRAIN

1

196172A1

TRANSMISSION

ASSY., ZF No. 4656 054 012, See figures 6-15 - 6-61, 7-3

1шт.

1

196172A1R

REMAN-TRANSMISSION

621C CASE WHEEL LOADER, ASSY (1/99-)

1шт.

1

196172A1C

CORE-TRANSMISSION

Return Number

1шт.

1

318999A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only

1шт.

1

318999A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

2

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

258612A1

HOSE ASSY.,25.4mm ID x 1576mm L, SAE 100R1

cooler to transmission, 62-1/16 in, (1576 mm)

1шт.

8

258611A1

HOSE ASSY.,25.4mm ID x 1821mm L, SAE 100R1

transmission to cooler, 71-3/4 in, (1821 mm)

1шт.

10

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

REF

INSTRUCTION

RADIATOR, See figure 02-002, 02-002A

1шт.

13

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

Rear Chassis

4шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

17

300941A1

HOSE ASSY.

parking brake

1шт.

18

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. Ref. 19

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

L129275

SUPPORT

BRACKET S/N JEE0093372 to

1шт.

21

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

S/N JEE0093372 to

1шт.

22

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64 S/N JEE0093372 to

2шт.

23

832-10412

NUT,M12 x 1.75, Cl 8

S/N, Start Serial: JEE0093372

1шт.
