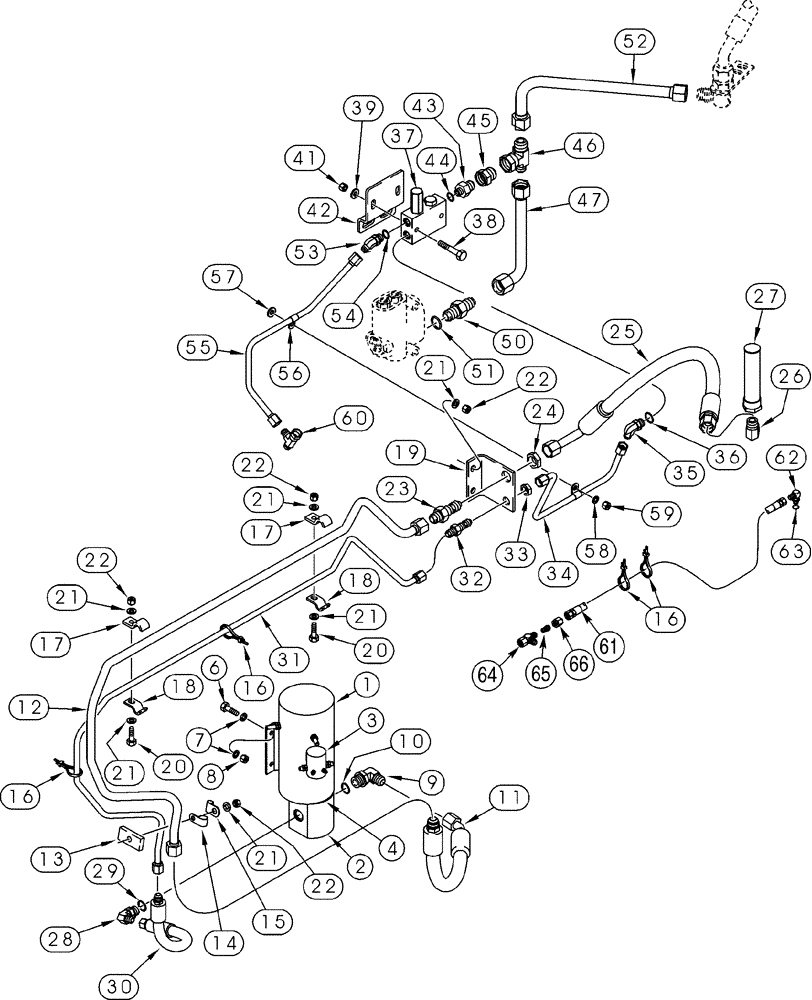

Запчасти Case 621C (05-028) - HYDRAULICS STEERING, AUXILIARY BSN JEE0122759 (05) - STEERING

197540A1

PUMP, HYDRAULIC

ASSY., motor, auxiliary steering, Consists of Refs. 1-5

1шт.

1

258042A1

MOTOR, ELECTRIC

drive

1шт.

2

258041A1

PUMP, HYDRAULIC

1шт.

3

258043A1

SOLENOID SWITCH

24V

1шт.

4

258044A1

GASKET

mounting

1шт.

5

258045A1

SEAL KIT

seal, component parts not serviced separately, Includes: (1) Retaining Ring, (1) Shaft Seal, (2) O-Rings, (2) E-Seals and (2) Backup Rings, Not Illustrated

1шт.

6

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

7

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

9

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

279726A1

HOSE ASSY.

suction, 21 in, (532 mm)

1шт.

12

279605A2

TUBE,19.05 mm OD, 1190, 233 mm Length

Replaces: P/N 279605A1

1шт.

13

L119350

SPACER

1шт.

14

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

15

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

17

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

2шт.

18

S79585

CLAMP

2шт.

19

280583A1

SUPPORT

BRACKET

1шт.

20

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

21

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

7шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

23

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

Adapter

1шт.

24

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

25

296101A2

HOSE ASSY.

916 mm, 36-1/16 in, tank to auxiliary steering pump

1шт.

26

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1шт.

27

L129303

FILTER SCREEN

1шт.

28

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

321847A1

HOSE ASSY.

pressure, 16-1/8 in, (409 mm)

1шт.

31

279603A1

TUBE,12.7 mm OD, 1200, 228 mm Length

1шт.

32

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

33

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

34

321743A1

TUBE,12.7 mm OD, 310, 197 mm Length

pressure

1шт.

35

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 36

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

37

311652A2

VALVE

repair, component parts not serviced separately, Replaces: P/N 311652A1

1шт.

38

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

39

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

41

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

42

321846A1

SUPPORT

BRACKET

1шт.

43

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

Includes Ref 44

1шт.

44

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

45

218-728

REDUCER,37 Degree, 1 1/16"-12, Fem x 1 5/16"-12 Male

REDUCER, 3/4 fl male x 1 female

1шт.

46

218-846

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12 x1 5/16"-12 Fem Sw Br

1шт.

47

321801A2

TUBE,19.05 mm OD, 205, 58.7 mm Length

1шт.

50

321727A1

CHECK VALVE

Includes: Ref. 51

1шт.

51

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

52

321803A1

TUBE,25.4 mm OD, 380, 120 mm Length

relief valve to P/N 277528A1 hose, See figure 5-13

1шт.

53

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 54

1шт.

54

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

55

321776A1

TUBE

1шт.

56

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

57

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

1шт.

58

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

59

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

60

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Attaches to P/N 314884A1 and P/N 314854A1 tubes, brakes to tank

1шт.

61

101501A1

HOSE ASSY.

1170 mm, 46-1/8 in, pressure sensing, 218-5222 tee to L126826 pressure switch

1шт.

62

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

ELBOW 90 Deg., 1/4 PT x 7/16 fl, Includes: Ref. 63, attaches to L126826 pressure switch

1шт.

63

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

64

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Attaches to 218-980 elbow beneath main pump

1шт.

65

218-790

REDUCER,37 Degree, 3/8" x 1/4" Tube

3/8 tube O.D. x 7/16 fl

1шт.

66

218-343

TUBE NUT,37 Degree, 9/16"-18, Type B

1шт.
