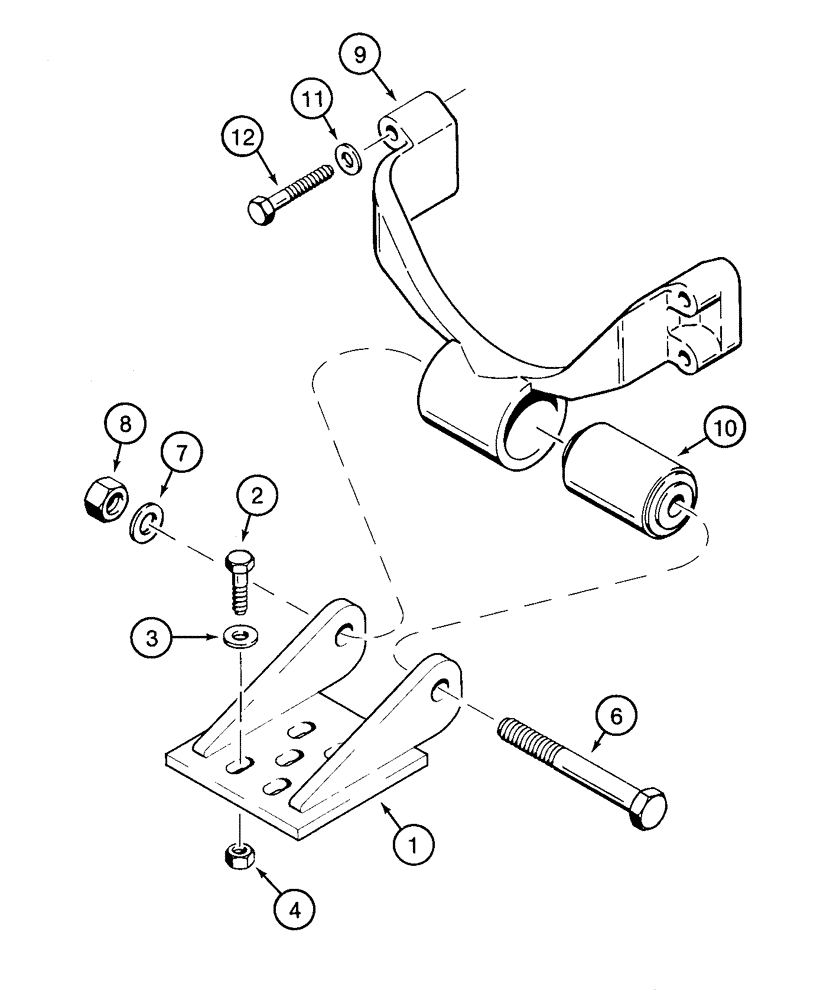

Запчасти Case 621C (02-001) - MOUNT, ENGINE (02) - ENGINE

1

L128273

SUPPORT

1шт.

2

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

4шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

6

426-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

1шт.

7

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

1шт.

8

131-1400

LOCK NUT,Jam, 3/4"-16

1шт.

L127411

SUPPORT ASSY.

Includes: Refs. 9, 10

1шт.

9

J916664

SUPPORT

1шт.

10

L124020

SHOCK ABSORBER

1шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

12

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.
