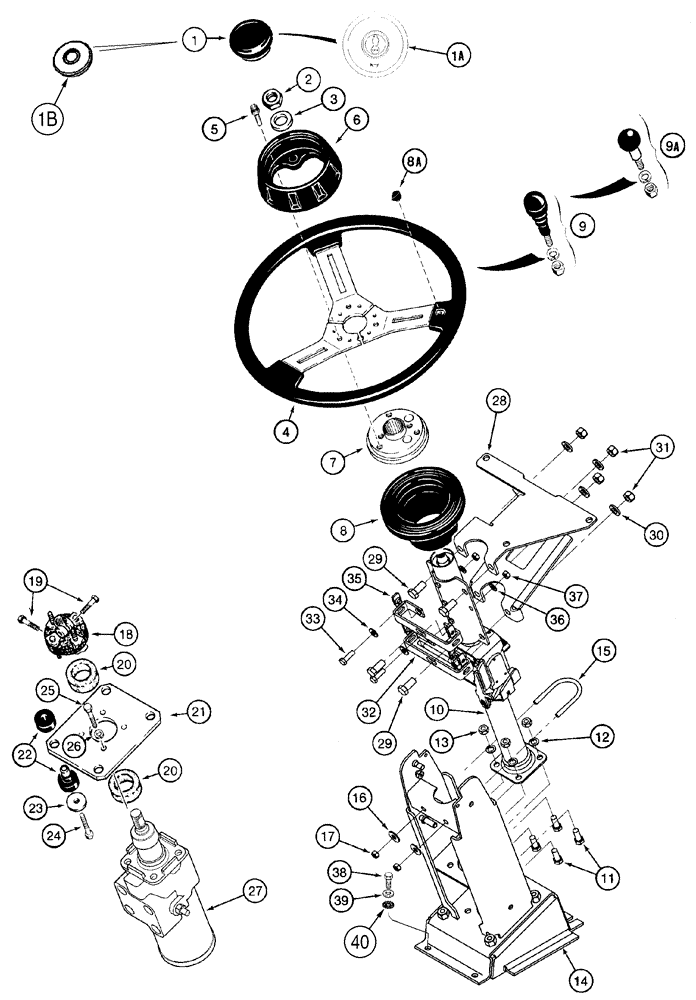

Запчасти Case 621C (05-002) - STEERING WHEEL COLUMN (05) - STEERING

1

195277A1

PLUG

Includes: 1A S/N, Start Serial: JEE012

1шт.

1a

A180055

CAP ASSY.

case globe and eagle

1шт.

1b

384985A1

CAP

Includes: 1C to S/N JEE0123273

1шт.

1c

1342054C1

PLASTIC PLUG

insert, not illustrated

1шт.

2

NSS

NOT SOLD SEPARAT

NUT, M14, See figure 5-5

1шт.

3

895-11014

WASHER,M14 x 28 x 2.5

15.5 x 28 x 2.5 mm

1шт.

283484A1

STEERING WHEEL

Consists of: Refs. 4-8A

1шт.

4

D147465

STEERING WHEEL

not serviced separately, Order: P/N 283484A1, See below

1шт.

283484A1

STEERING WHEEL

includes spacer ring, Wheel Hub, Bolts, Washers and Wheel, not illustrated; Replaces D148204

1шт.

5

S301434

SCREW

3шт.

6

S301399

CAP

1шт.

7

329105A1

HUB

1шт.

8

S301400

BOOT

1шт.

8a

S301435

PLUG

remove to use spinner knob

1шт.

9

L127996

KNOB

spinner, includes Washer and Nut, no longer available, Order: Ref. 9A, P/N 97400C1

1шт.

9a

97400C1

HANDLE

spinner, includes Washer and Nut

1шт.

226107A2

STEERING COLUMN

tilt, Includes: Refs. 2 and 10

1шт.

10

318936A1

PACKAGE

KIT repair, locking, tilt

1шт.

10

339490A1

REPAIR KIT

Spring

1шт.

10

339499A1

REPAIR KIT

Lever

1шт.

10

339500A1

REPAIR KIT

Shaft

1шт.

10

NSS

NOT SOLD SEPARAT

COLUMN steering, housing, shaft

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

12

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

14

251715A3

SUPPORT

Replaces: P/N 251715A2

1шт.

15

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

Replaces P/N 414-620

1шт.

16

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

2шт.

17

425-105

NUT,5/16"-18, G5

2шт.

18

L100096

ISOLATOR

1шт.

19

7807271

SCREW,3/8" - 24 x 1.22"

3/8 x 1-1/4

2шт.

20

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

2шт.

21

237344A1

BASE PLATE

1шт.

22

A141515

ISOLATOR

4шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

24

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

4шт.

25

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

26

892-11010

LOCK WASHER,M10

2шт.

27

276368A2

VALVE, CONTROL

steering, See figure 5-9, Replaces: P/N 276368A1

1шт.

28

251730A3

SUPPORT ASSY.

BRACKET, instrument cluster, Replaces: P/N 251730A2

1шт.

29

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

30

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

31

829-1412

NUT,M12, Cl 10.9

4шт.

32

251725A2

SUPPORT

BRACKET

2шт.

33

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

34

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

35

833-40306

SPRING NUT,M6, U

4шт.

36

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

37

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

38

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

39

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

40

893-11010

LOCK WASHER,Ext Tooth, M10

4шт.
