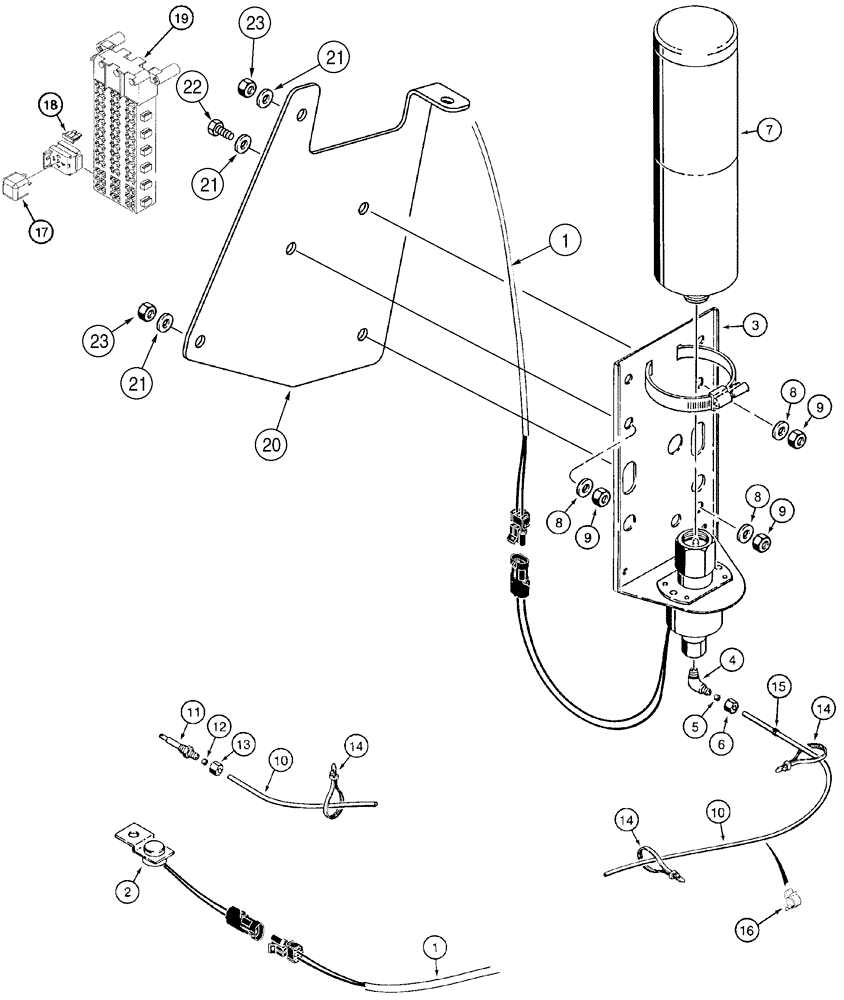

Запчасти Case 621C (04-100) - COLD START SYSTEM, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS

1

284513A2

HARNESS

engine and transmission, no longer used, Order: P/N 284513A4

1шт.

1

284513A4

HARNESS

engine and transmission, Replaces: P/N 284513A2, P/N 284513A3

1шт.

2

L126191

THERMOSTATIC SWITCH

circuit breaking, use existing hardware

1шт.

L126094

VALVE

Consists of: Refs. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE solenoid

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Consists of Refs 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BODY

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

7

A171940

CYLINDER

starting fluid

1шт.

8

S95569

WASHER

hardened

3шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

Replaces P/N 231-1446

3шт.

10

A172361

TUBE

72 in, (1829 mm), cut from P/N 1954063CX

1шт.

A172900

NOZZLE CAP

starting fluid, Consists of: Refs. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

15

L77834

GROMMET

rubber

1шт.

16

L100659

CLIP

TUBE

1шт.

17

326845A1

RELAY,24V

24V

1шт.

18

A149800

FUSE,10 Amp

10 amp

1шт.

19

242101A4

HARNESS

cab main, Replaces: P/N 242101A2, P/N 242101A3

1шт.

20

355918A1

LARGE PLATE

PLATE, LARGE

1шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

5шт.

22

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

23

425-105

NUT,5/16"-18, G5

2шт.
