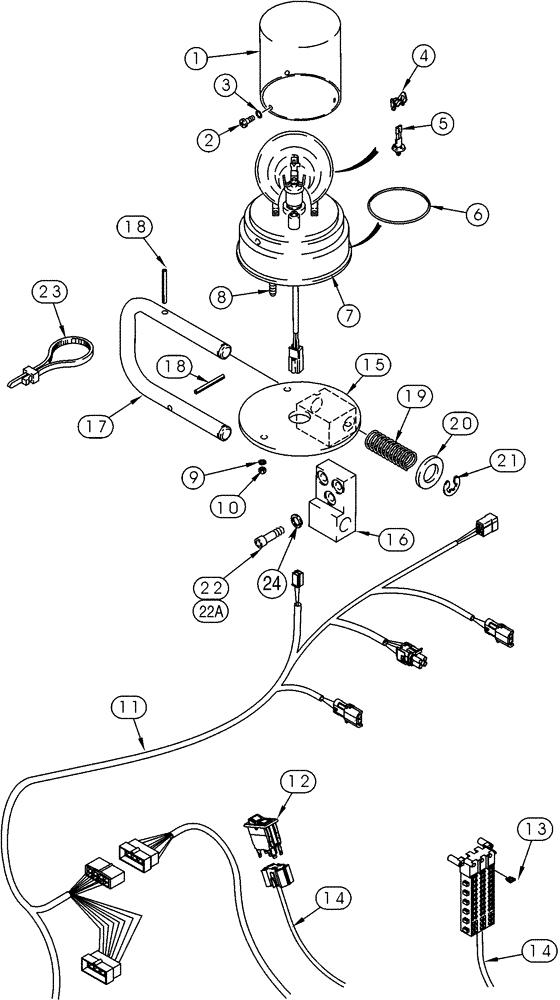

Запчасти Case 621C (04-090) - BEACON ASSEMBLY, ROTATING MOUNTING, EUROPE ONLY (04) - ELECTRICAL SYSTEMS

A187528

LIGHT ASSY.

LAMP, rotating beacon, Consists of: Refs. 1 - 8, no longer used, Order: P/N 367751A1

1шт.

367751A1

BEACON ROTATING

BEACON LAMP ASSY., rotating, Consists of: Refs. 1 - 8, Replaces: P/N A187528

1шт.

1

A187542

LENS

amber, if used

1шт.

1

127158A1

LENS

blue, if used

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

Lens mounting

3шт.

3

238-5005

O-RING,0.094" ID x 0.062" Width

3шт.

4

NSS

NOT SOLD SEPARAT

CLIP

1шт.

5

P40533

LAMP

Halogen

1шт.

6

A187575

O-RING

Drive Motor

1шт.

7

NSS

NOT SOLD SEPARAT

BASE, includes drive motor

1шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

9

892-11006

LOCK WASHER,M6

3шт.

10

825-1406

NUT,M6, Cl 8

3шт.

11

238764A2

WIRE HARNESS

cab roof, Replaces: P/N 238764A1

1шт.

12

234194A1

SWITCH

rocker, rotating beacon

1шт.

13

A149799

FUSE

7.5 amp

1шт.

14

242101A4

HARNESS

cab main, Replaces: P/N 242101A2 and 242101A3

1шт.

15

313215A1

SUPPORT

BRACKET beacon mounting

1шт.

16

313213A2

SUPPORT

BRACKET beacon mounting, at cab, Replaces: P/N 313213A1

1шт.

17

313216A2

ARM

pivoting, beacon mounting, Replaces: P/N 313216A1

1шт.

18

38-31620

PIN,6.35mm OD x 31.75mm L

Replaces 138-2053

2шт.

19

1986722C1

SPRING

2-1/4, Return, if used

2шт.

19

373596A1

SPRING

return, if used

2шт.

20

495-11081

WASHER,3/4", SAE

2шт.

21

100-3375

SNAP RING,#75, .574" Dia, E-Type

2шт.

22

863-8016

HEX SOC SCREW,M8 x 16mm, Cl 12.9

No longer used, Order P/N 864-8020

3шт.

22a

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

Replaces 863-8016

3шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

24

892-11008

LOCK WASHER,8mm ID

3шт.
