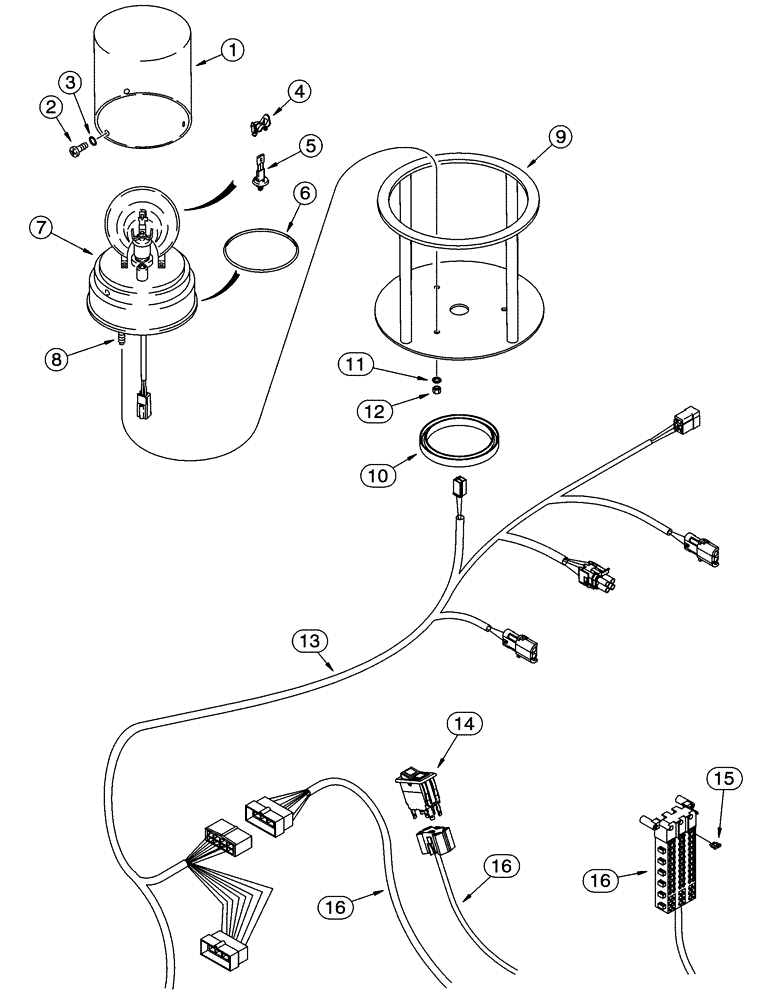

Запчасти Case 621C (04-088) - BEACON ASSEMBLY, ROTATING MOUNTING, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS

A187528

LIGHT ASSY.

LAMP, rotating beacon, Consists of: Refs. 1 - 8, if used

1шт.

367751A1

BEACON ROTATING

BEACON LAMP ASSY., rotating, Consists of: Refs. 1 - 8, if used

1шт.

1

A187542

LENS

amber, if used

1шт.

1

127158A1

LENS

blue, if used

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

Lens mounting

3шт.

3

238-5005

O-RING,0.094" ID x 0.062" Width

3шт.

4

NSS

NOT SOLD SEPARAT

CLIP

1шт.

5

P40533

LAMP

Halogen

1шт.

6

A187575

O-RING

Drive Motor

1шт.

7

NSS

NOT SOLD SEPARAT

BASE, includes drive motor

1шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

9

193897A1

CAGE

rotating beacon

1шт.

10

L109042

GASKET

TRIM, 13-13/16 in, (350 mm), edge, cut from P/N F42827

1шт.

11

892-11006

LOCK WASHER,M6

3шт.

12

825-1406

NUT,M6, Cl 8

3шт.

13

238764A2

WIRE HARNESS

cab roof, Replaces: P/N 238764A1

1шт.

14

234194A1

SWITCH

rocker, rotating beacon

1шт.

15

A149799

FUSE

7.5 amp

1шт.

16

242101A4

HARNESS

cab main, Replaces: P/N 242101A2, 242101A3

1шт.
