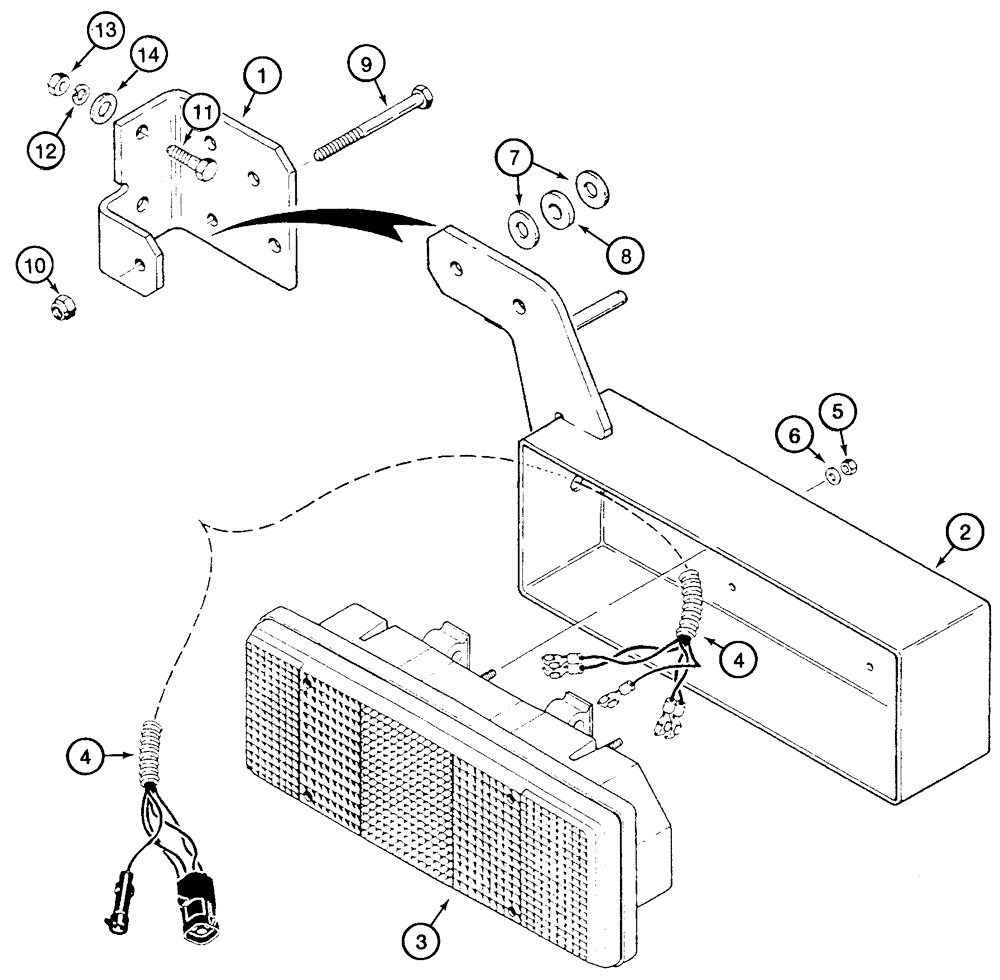

Запчасти Case 621C (04-076) - MOUNTING LAMPS, REAR COMBINATION, EUROPE ONLY (04) - ELECTRICAL SYSTEMS

1

E137360

SUPPORT

combination lamp, right hand

1шт.

1

E137357

SUPPORT

combination lamp, left hand, not shown

1шт.

2

E137359

SUPPORT

combination lamp, right hand

1шт.

2

E137361

SUPPORT

combination lamp, left hand, not shown

1шт.

3

E133218

LAMP, TAIL

LIGHT, TAIL combination, right hand, See figure 4-79

1шт.

3

E133219

LAMP, TAIL

LIGHT, TAIL combination, left hand, See figure 4-79, not shown

1шт.

4

E132941

HARNESS

LAMP combination

2шт.

5

825-1408

NUT,M8, Cl 8

4шт.

6

892-11008

LOCK WASHER,8mm ID

4шт.

7

495-81238

WASHER,13/16" x 3" x .238", HDN

4шт.

8

120841A1

WASHER

rubber

2шт.

9

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

2шт.

10

231-14412

LOCK NUT,3/4"-10, GB

2шт.

11

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

No longer used, Order P/N 827-12045

4шт.

11

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

Replaces: P/N 426-824

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

12

892-11012

LOCK WASHER,M12

Replaces P/N 492-11050

4шт.

13

425-108

NUT,1/2" - 13, Gr 5

No longer used, Order: P/N 829-1412

4шт.

13

829-1412

NUT,M12, Cl 10.9

Replaces P/N 425-108

4шт.

14

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), No longer used, Order P/N 896-15012

4шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, Replaces: P/N 495-11053

4шт.
