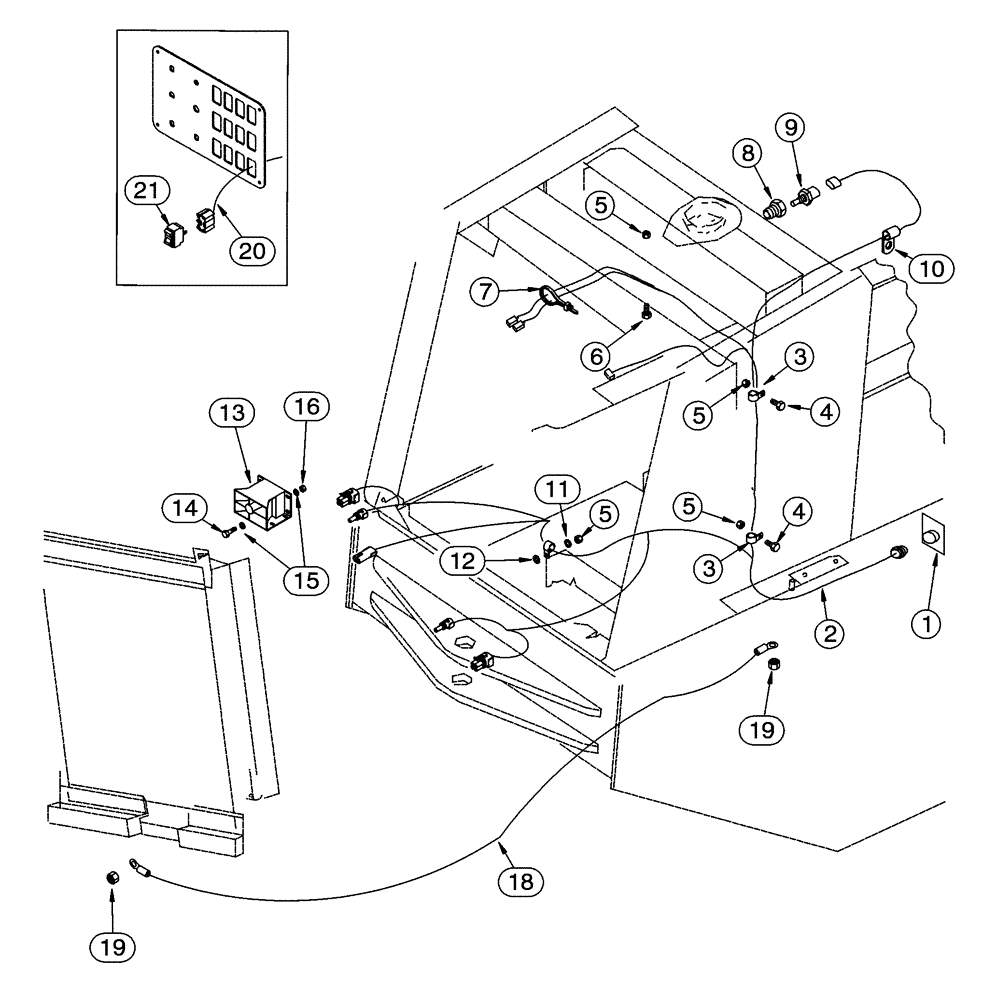

Запчасти Case 621C (04-074) - MOUNTING BACKUP ALARM AND REAR LAMP, EUROPE ONLY (04) - ELECTRICAL SYSTEMS

1

284514A2

HARNESS

rear chassis, no longer used

1шт.

1

284514A4

rear chassis, Replaces: P/N 284514A2 and P/N 284514A3

1шт.

2

292083A2

HARNESS

rear lamp

1шт.

3

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

8

217-41

REDUCER,3/8"-18 NPTF x 1/8"-27 Fem NPTF

No longer used, Order: P/N 391763A1

1шт.

8

391763A1

ADAPTER

REDUCER, 3/8 x 1/8 PT, Replaces: P/N 217-41

1шт.

9

143417A2

SENSOR

coolant level, no longer used, Order: P/N 143417A3

1шт.

9

143417A3

SENSOR

coolant level, Replaces: P/N 143417A2

1шт.

10

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

11

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

13

D121972

ALARM

backup

1шт.

14

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

15

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

8шт.

16

832-10406

NUT,M6 x 1, Cl 8

4шт.

18

253186A2

HARNESS

ground

1шт.

19

253347A1

NUT,Hex, M10 x 1.5

special, brass, M10 - 1.5

2шт.

20

242101A1

HARNESS

cab main, no longer used, Order: P/N 242101A4

1шт.

20

242101A4

HARNESS

cab main, Replaces: P/N 242101A2, 242101A3

1шт.

21

284291A1

SWITCH

rocker, backup alarm disable

1шт.
