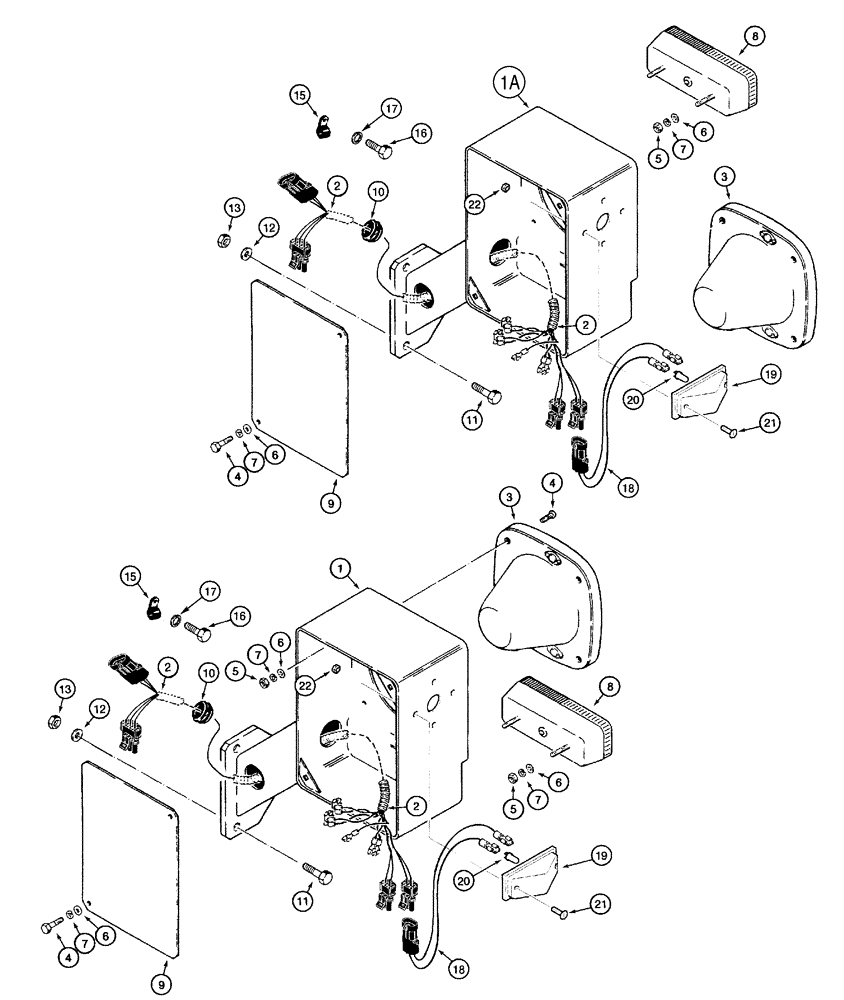

Запчасти Case 621C (04-064) - MOUNTING LAMP, FRONT, EUROPE ONLY, XT AND Z-BAR LOADER (04) - ELECTRICAL SYSTEMS

1

E132215

SUPPORT

front lamp, right hand, no longer used, Order: P/N 349447A2

1шт.

1a

349447A2

SUPPORT

front lamp, right hand, Replaces: P/N E132215

1шт.

1

E132216

SUPPORT

front lamp, left hand, not shown, no longer used, Order: P/N 349448A2

1шт.

1a

349448A2

SUPPORT

front lamp, left hand, not shown, Replaces: P/N E132216

1шт.

2

279524A3

HARNESS

front lamp, Replaces: P/N 279524A2

2шт.

3

E133214

HEADLIGHT,Halogen, 24V, 70W

See figure 4-67

2шт.

4

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

4-12шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

4-12шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8-16шт.

7

892-11006

LOCK WASHER,M6

8-16шт.

8

E133215

TAIL LAMP

turn signal, See figure 4-69

2шт.

9

E132226

LARGE PLATE

PLATE, LARGE cover

2шт.

10

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

Replaces: P/N E133199

4шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

12

892-11012

LOCK WASHER,M12

2шт.

13

829-1412

NUT,M12, Cl 10.9

2шт.

15

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

16

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

6шт.

17

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

6шт.

18

195166A1

HARNESS

side flasher lamp, if used

2шт.

19

195164A1

LIGHT

LAMP ASSY., side flasher lamp, Includes: Ref. 20, if used

2шт.

20

197102A1

BULB

1шт.

21

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

4шт.

22

832-10404

NUT,M4 x 0.7, Cl 8.8

4шт.
