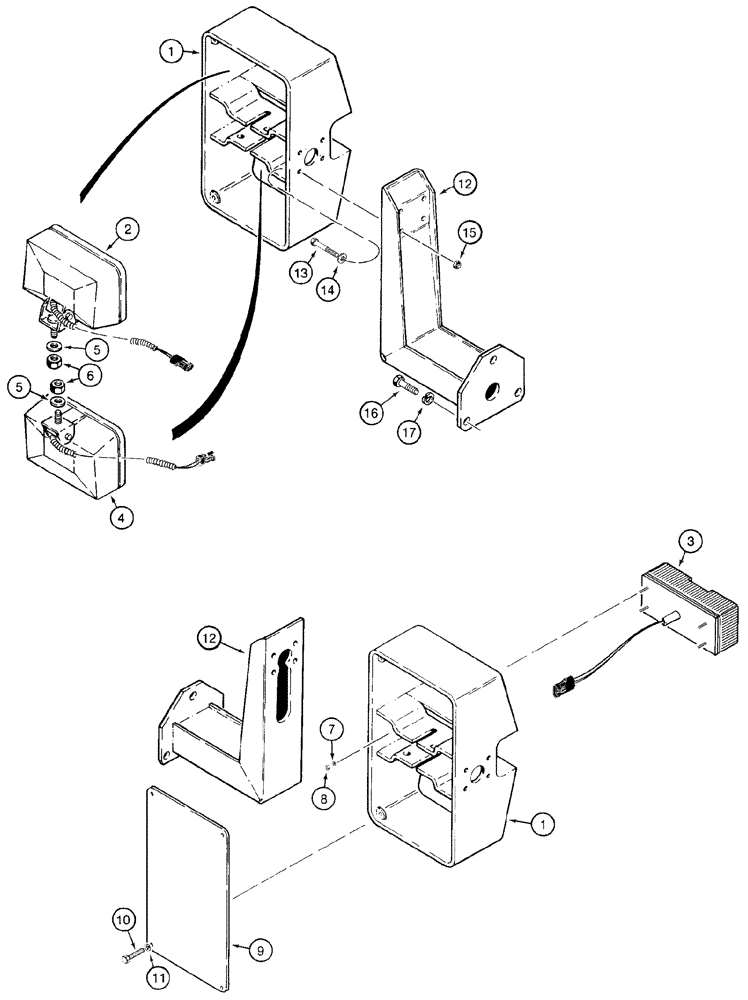

Запчасти Case 621C (04-056) - MOUNTING LAMP, FRONT, NORTH AMERICA ONLY, Z-BAR LOADER (04) - ELECTRICAL SYSTEMS

1

L126951

HOUSING

LAMP

2шт.

2

A187519

LIGHT ASSY.,24V, 70W, Clear

Driving, See figure 4-85

2шт.

3

A187992

LIGHT ASSY.,24V, 27W, Amber/Clear

Turn signal and flasher, right hand, See figure 4-87

1шт.

3a

A187993

LIGHT ASSY.,24V, 27W, Amber/Clear

Turn signal and flasher, left hand, See figure 4-87, not shown

1шт.

4

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood, See figure 4-85

2шт.

5

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

12шт.

6

131-1402

THIN NUT,1/2"-13, GB, Thin

4шт.

7

892-11005

LOCK WASHER,M5

8шт.

8

825-1405

NUT,M5, Cl 8

8шт.

9

L126959

COVER

LAMP

2шт.

10

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

8шт.

11

492-11025

LOCK WASHER,1/4"

8шт.

12

L126955

BRACKET

LAMP

2шт.

13

426-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

8шт.

14

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

8шт.

15

231-1445

NUT,5/16"-18, GB

8шт.

16

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

6шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

6шт.
