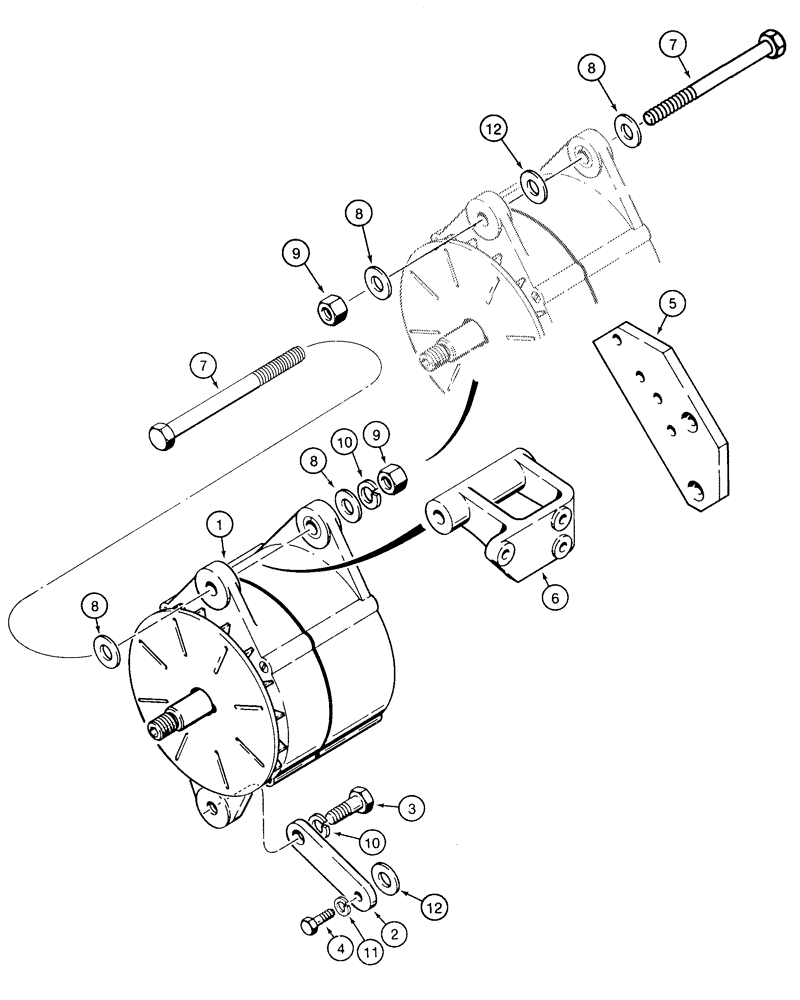

Запчасти Case 621C (04-054) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

24V, 65 amp, See figure 4-3

1шт.

1

1964860C1GV

ALTERNATOR

Value

1шт.

1

1964860C1R

REMAN-ALTERNATOR

621C CASE WHEEL LOADER, 24V, 65 amp, ALTERNATOR MOUNTING (1/99-)

1шт.

1

1964860C1C

CORE-ALTERNATOR

Return Number

1шт.

2

J910924

PLATE

Supplied with Engine

1шт.

3

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Supplied with Engine

1шт.

5

J919736

SUPPORT

Supplied with Engine

1шт.

6

J910923

BRACE

Supplied with Engine

1шт.

7

426-896

BOLT,Hex, 1/2" - 13 x 6", Gr 8

1шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

9

231-4248

NUT,1/2"-13, GB

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

1-2шт.

11

892-11008

LOCK WASHER,8mm ID

Supplied with Engine

1шт.

12

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.
