Запчасти Case 621C (04-050) - BATTERY CABLES (04) - ELECTRICAL SYSTEMS

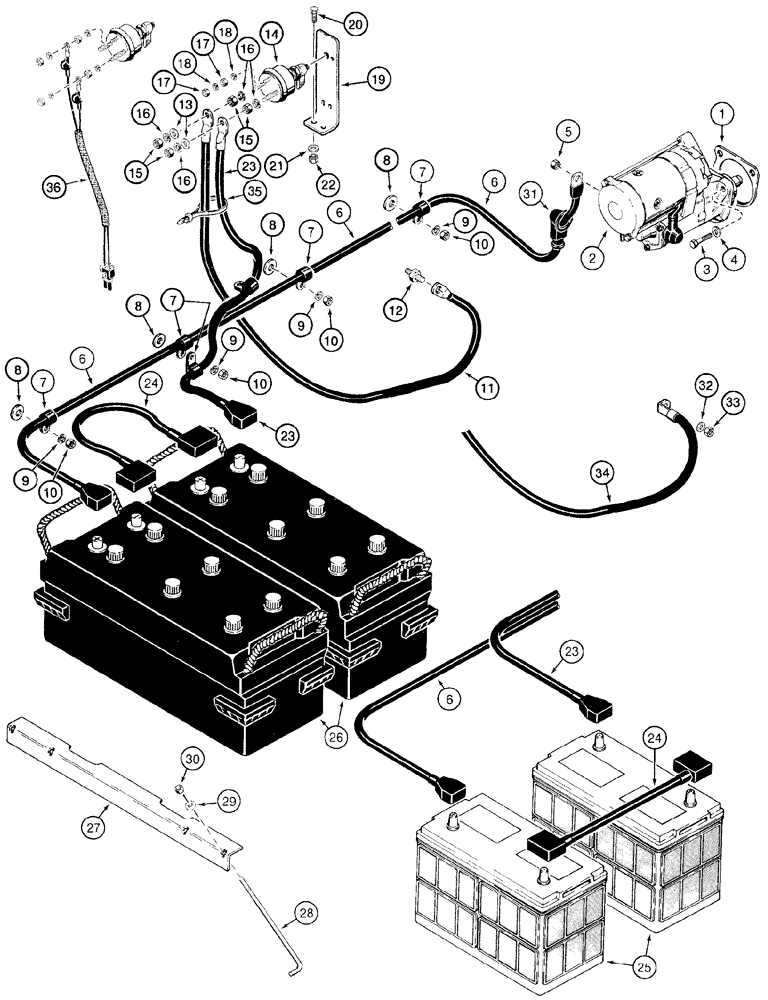

Схема запчастей Case 621C - (04-050) - BATTERY CABLES (04) - ELECTRICAL SYSTEMS
9
19
15
24
10
7
30
17
23
7
15
35
7
10
18
1
22
11
36
34
13
25
8
18
6
26
9
29
33
21
4
16
6
14
24
23
7
9
8
5
6
12
3
9
17
8
20
16
2
10
31
6
27
10
28
8
32
16
23

Артикул

Название

Примечание

Количество

1

L112209

GASKET,0.79mm Thk

mounting

1шт.

2

1987566C1

STARTER MOTOR,24V, 5.5kW

ASSY., See figures 4-5, 4-7, if used

1шт.

2

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

2

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

2

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

2

332443A1

STARTING MOTOR

ASSY., See figures 4-5, 4-7, if used

1шт.

3

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

3шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

3шт.

5

825-1410

NUT,M10, Cl 8

1шт.

6

284522A1

CABLE ASSY.

battery to starter, positive terminal, 82-11/16 in, (2100 mm)

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Battery cable

9шт.

8

S95569

WASHER

hardened

6шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

11

284524A1

CABLE ASSY.

ground, disconnect switch, 19-11/16 in, (500 mm), no longer used, Order: P/N 359444A1

1шт.

11

359444A1

CABLE ASSY.

ground, disconnect switch, 29-1/2 in, (750 mm), Replaces: P/N 284524A1

1шт.

12

L127553

STUD

1шт.

13

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

L126256

SWITCH

master, disconnect switch, Includes: Refs. 14-18

1шт.

14

NSS

NOT SOLD SEPARAT

BODY

1шт.

15

129-187

NUT,5/16"-24, Brass

6шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

131-573

NUT,#10-32

4шт.

18

492-11010

LOCK WASHER,#10

4шт.

19

185389A2

LARGE PLATE

PLATE, LARGE BRACKET, disconnect switch, Replaces: P/N 185389A1

1шт.

20

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

No longer used, Order: P/N 627-10035

2шт.

20

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

Replaces P/N 627-10030

2шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

23

284523A1

CABLE ASSY.

ground, disconnect switch, 55-1/8 in, (1400 mm), no longer used, Order: P/N 359445A1

1шт.

23

359445A1

CABLE ASSY.

ground, disconnect switch, 64-15/16 in, (1650 mm), Replaces: P/N 284523A1

1шт.

24

239952A1

CABLE ASSY.

jumper, battery to battery, 15-3/4 in, (400 mm)

1шт.

25

BMF31E

DRY BATTERY

12V, Standard, service replacement

2шт.

26

BHC4DA

BATTERY, DRY

BATTERY DRY 12V, heavy duty, service replacement

2шт.

27

L124221

SUPPORT

BRACKET, hold down

2шт.

28

L124224

BOLT

BOLT special, hold down

4шт.

29

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

30

231-1445

NUT,5/16"-18, GB

4шт.

31

L126713

BOOT

cable at starter, cable at disconnect

3шт.

32

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

special, brass

1шт.

33

253347A1

NUT,Hex, M10 x 1.5

special, lock, brass, M10 - 1.5

1шт.

34

239955A1

CABLE ASSY.

ground, engine to frame, 42-1/2 in, (1080 mm)

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP retaining, 15 in

1шт.

36

L127676

WIRE HARNESS

disconnect switch

1шт.
