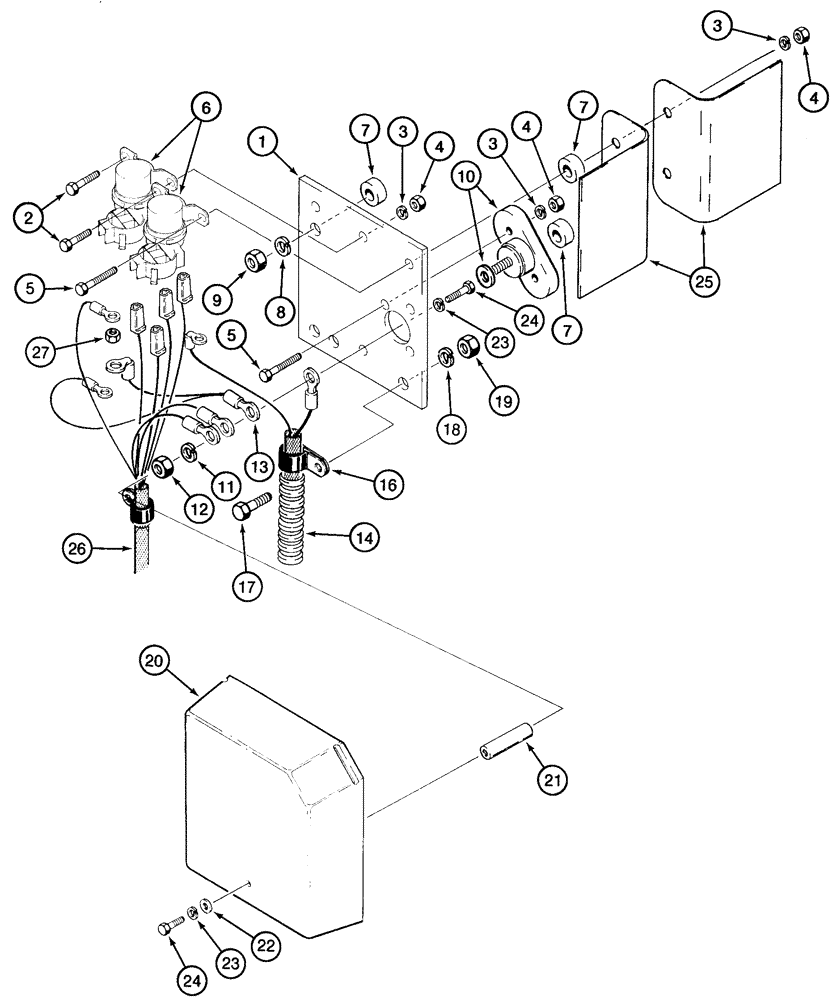

Запчасти Case 621C (04-044) - HARNESS, REAR RELAY PANEL (04) - ELECTRICAL SYSTEMS

1

125058A1

LARGE PLATE

PLATE, LARGE base, relay

1шт.

2

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

4

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

4шт.

5

627-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 10.9, Full Thd

4шт.

6

120398A1

RELAY

24V

2шт.

7

D44696

BUSHING

SPACER

4шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

L124085

CONNECTOR, ELEC

CONNECTOR BLOCK terminal, Consists of: Refs. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

128785A1

ELECTRICAL WIRE

WIRE jumper

1шт.

14

128784A1

HARNESS

CABLE

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

19

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

20

L114612

COVER

1шт.

21

253065A1

SPACER

relay cover

1шт.

22

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

1шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

24

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

25

L125774

PROTECTOR

terminal block

1-2шт.

26

284510A2

HARNESS

relay

1шт.
