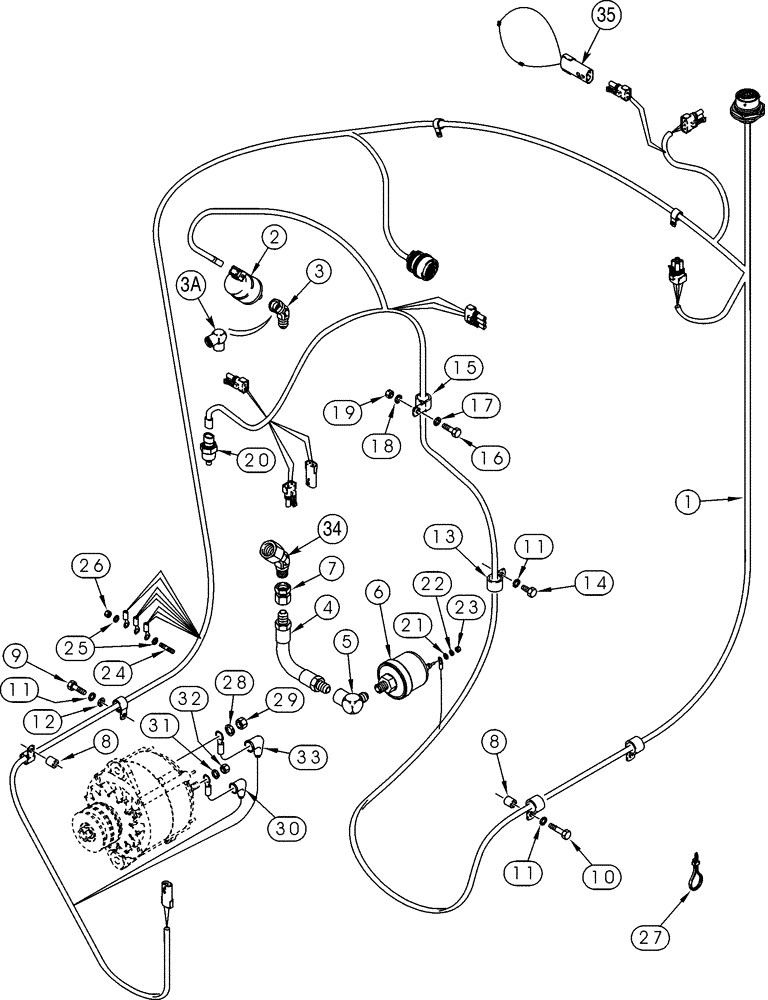

Запчасти Case 621C (04-040) - HARNESS, REAR, ENGINE AND TRANSMISSION (04) - ELECTRICAL SYSTEMS

1

284513A2

HARNESS

engine and transmission, no longer used, Order: P/N 284513A4

1шт.

1

284513A4

HARNESS

engine and transmission, Replaces: P/N 284513A2, P/N 284513A3

1шт.

2

293797A1

RESTRICTION SWITCH

Air Cleaner

1шт.

3

221-1365

ELBOW,45 Degree, 1/8" NPT

90 Deg., 1/8 PT, no longer used, Order: P/N 217-1050

1шт.

3a

217-1050

90 ELBOW,1/8" - 27 NPTF Female

Replaces P/N 221-1365

1шт.

4

335976A1

HOSE ASSY.

1шт.

5

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

6

253041A1

SENSOR

engine oil pressure, no longer available, Order: P/N 358040A2

1шт.

6

358040A2

SENDER UNIT

SENDER engine oil pressure, Replaces: P/N 253041A1

1шт.

7

218-1557

HYD CONNECTOR,37º, Sw, 7/16"-20 x 1/8"-27 NPTF

1шт.

8

L58752

TUBE SPACER,13.53mm ID x 19.05mm OD x 18.28mm L

Harness clamp

2шт.

9

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.

10

614-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

1шт.

11

892-11012

LOCK WASHER,M12

4шт.

12

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

13

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

14

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

No longer used, Order P/N 514-864

1шт.

14

514-864

BOLT,Hex, M12 x 1.5 x 25mm, Cl 8.8, Full Thd

Replaces P/N 627-12025

1шт.

15

515-2563

CLAMP,1/4", Insul, 1/2" Bolt

1шт.

16

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

17

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

19

425-108

NUT,1/2" - 13, Gr 5

1шт.

20

321446A1

SENSOR

engine temperature

1шт.

21

495-31025

WASHER,3/16"

1/4 x 9/16 x 3/64

1шт.

22

492-11010

LOCK WASHER,#10

1шт.

23

225-20210

NUT,#10-32, Brass

1шт.

24

L127553

STUD

special, brass

1шт.

25

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

special

2шт.

26

L127555

NUT,Hex, 3/8" - 16

special, brass, 3/8

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

28

492-11044

LOCK WASHER,7/16"

1шт.

29

425-107

NUT,7/16"-14, G5

1шт.

30

S64612

BOOT

rubber

1шт.

31

892-11004

LOCK WASHER,M4

1шт.

32

825-1404

NUT,M4, Cl 8

1шт.

33

L126713

BOOT

plastic

1шт.

34

218-5170

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Female JIC

90 Deg., 7/16 fl x sw

1шт.

35

337065A1

RESISTOR

transmission filter restriction

1шт.
