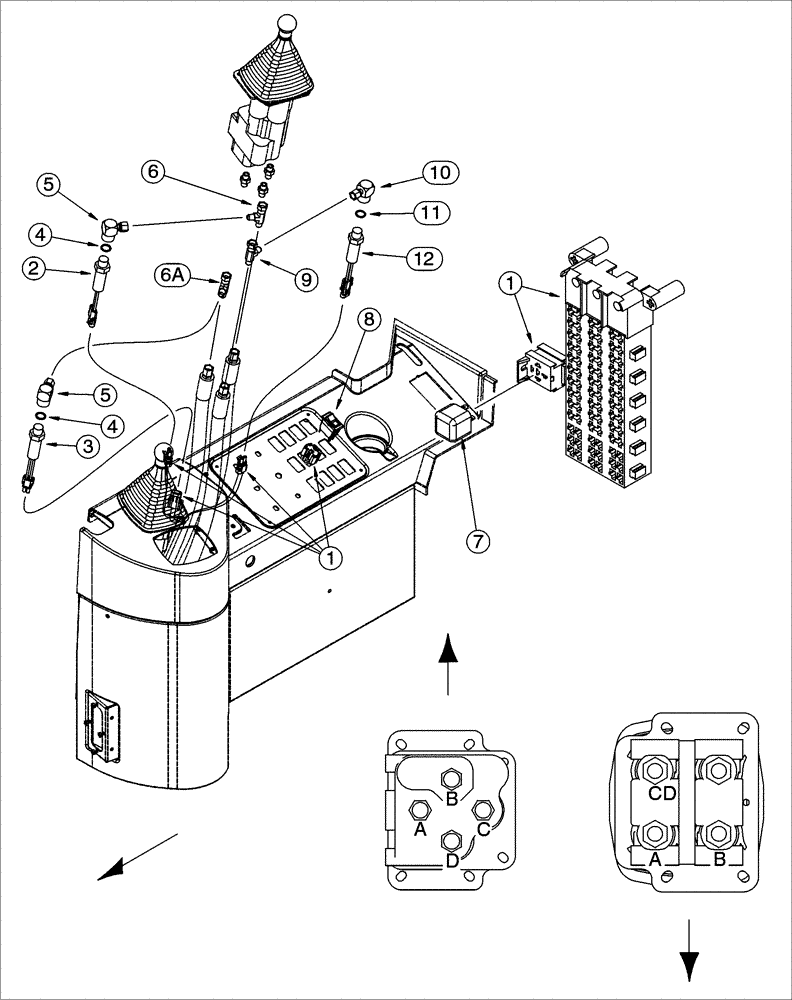

Запчасти Case 621C (04-038) - HARNESS - RIDE CONTROL, ALL NORTH AMERICAN LOADERS, EUROPEAN Z-BAR LOADERS ONLY (04) - ELECTRICAL SYSTEMS

1

242101A4

HARNESS

cab main, Replaces: P/N 242101A2, P/N 242101A3

1шт.

2

132905A1

SWITCH

bucket tilt circuit

1шт.

3

132906A1

SWITCH

loader lift circuit

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

5

131248A1

ELBOW,90 Degree, 9/16"-18 37 Degree Sw x 3/4"-16 O-Ring Fem

Special

2шт.

6

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

ELBOW 90 Deg., port C of controller, See note

1шт.

6a

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

ELBOW 90 Deg., port D of controller

1шт.

7

326845A1

RELAY,24V

24V

1шт.

8

234198A1

SWITCH

ride control

1шт.

9

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Port A of controller

1шт.

10

131248A1

ELBOW,90 Degree, 9/16"-18 37 Degree Sw x 3/4"-16 O-Ring Fem

Special

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

132905A1

SWITCH

rollback circuit

1шт.
