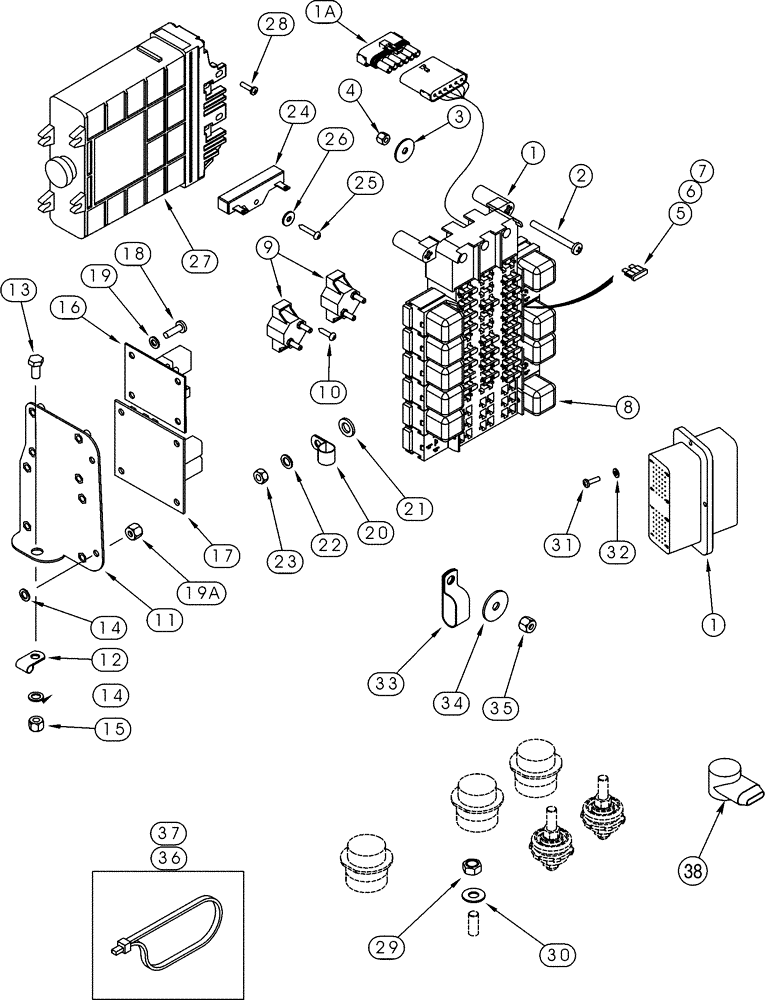

Запчасти Case 621C (04-034) - HARNESS - CANOPY, MAIN, POWER DISTRIBUTION CENTER, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS

1

242101A4

HARNESS

cab main, Replaces: P/N 242101A2 and P/N 242101A3

1шт.

1a

A187813

DIODE

1шт.

2

840-1660

SCREW,Pan HD, M6 x 60mm, Cl 4.8

3шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Replaces P/N 895-15006

2шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

Replaces P/N 832-10406

2шт.

5

A149798

FUSE

5 amp, tan

12шт.

6

A149800

FUSE,10 Amp

10 amp, red

4шт.

7

A149799

FUSE

7.5 amp, brown

4шт.

8

326845A1

RELAY,24V

24V

9шт.

9

S243558

CIRCUIT-BREAKER,12.5A

2шт.

10

760-14319

SELF-TAP SCREW,Pan Hd, M4.2 x 19

4шт.

11

249152A2

SUPPORT

1шт.

12

515-23254

CLAMP,1", Insul, 3/8" Bolt

Replaces 515-2395

1шт.

13

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

16

232363A1

MODULE

TIMER power off

1шт.

17

232364A1

FLASHER UNIT

No. 10

1шт.

18

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

Replaces 840-1620

8шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

19a

832-10406

NUT,M6 x 1, Cl 8

2шт.

20

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

22

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

24

F22316

RESISTOR,75 Ohms 0.2 Amps DC

75 ohm

1шт.

25

760-14325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

1шт.

26

895-25005

WASHER,M5 x 15 x 1.6

1шт.

27

296764A1

MODULE

transmission control

1шт.

27

296764A1R

REMAN ELECT CONTROL

621C CASE WHEEL LOADER, transmission control (1/99-)

1шт.

27

296764A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

28

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

4шт.

29

253347A1

NUT,Hex, M10 x 1.5

brass, M10 - 1.5

1шт.

30

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

brass

1шт.

31

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

Replaces P/N 840-1414

4шт.

32

892-11004

LOCK WASHER,M4

Replaces: P/N 895-11004

4шт.

33

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

34

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

35

832-10406

NUT,M6 x 1, Cl 8

1шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

37

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

38

357906A1

BOOT

1шт.
