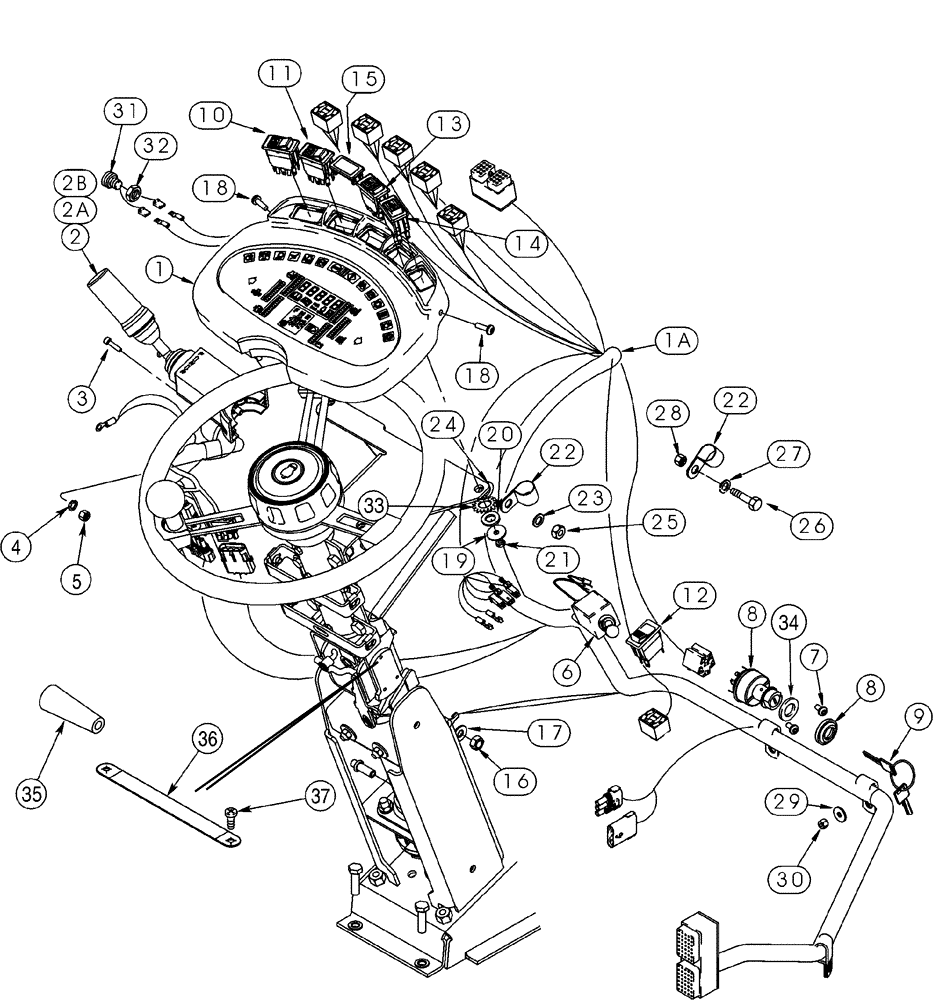

Запчасти Case 621C (04-022) - HARNESS PEDESTAL (04) - ELECTRICAL SYSTEMS

278823A4

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Replaces P/N 278823A2, 278823A3

1шт.

278823A4R

CLUSTER, INSTR.

Cluster, Instrument Reman For 621C

1шт.

278823A4C

CLUSTER, INSTR.

Cluster, Instrument, Return Part Number

1шт.

1a

232325A2

HARNESS

front pedestal

1шт.

2

238270A1

CONTROL

LEVER ASSY., Includes: Refs. 2A and 2B

1шт.

2

238270A1R

REMAN-JOYSTICK

621C - CASE WHEEL LOADER (1/99-)

1шт.

2

238270A1C

CORE-JOYSTICK

Return Part Number

1шт.

2a

NSS

NOT SOLD SEPARAT

COVER

1шт.

2b

NSS

NOT SOLD SEPARAT

SEAL

1шт.

3

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

2шт.

4

892-11005

LOCK WASHER,M5

2шт.

5

824-1405

NUT,M5, Cl 5

2шт.

6

1987555C1

SWITCH

turn signal and dimmer

1шт.

7

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

Special, Replaces: P/N 1270742C1

2шт.

8

282775A1

IGNITION SWITCH

Includes: Ref. 9

1шт.

9

1964831C2

IGNITION KEY

Padded

1шт.

10

234201A1

SWITCH

rocker, hazard warning

1шт.

11

234276A1

SWITCH

rocker, pilot control

1шт.

12

316758A1

SWITCH

rocker, parking

1шт.

13

234199A1

SWITCH

rocker, up/down count

1шт.

14

234200A1

SWITCH

rocker, program reset

1шт.

15

86000535

PLUG,1.427" x .62", Plastic

Switch Opening

1шт.

16

253347A1

NUT,Hex, M10 x 1.5

brass, M10 - 1.5

2шт.

17

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

brass

2шт.

18

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

Special

2шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

20

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

21

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

4шт.

22

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

3шт.

23

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

26

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

29

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

3шт.

30

832-10406

NUT,M6 x 1, Cl 8

3шт.

31

A135520

SWITCH

cold start

1шт.

32

425-1110

NUT,5/8"-18, G5

1шт.

33

893-11012

LOCK WASHER,Ext Tooth, M12

4шт.

34

495-81072

WASHER,1 1/32" x 1 3/4" x .030"

(26.02 x 44.5 x 0.8 mm)

1шт.

35

283095A2

BALL KNOB

steering tilt

1шт.

36

349372A1

GROUND CABLE

ground

1шт.

37

353169A1

SCREW

1/4 x 3/4

2шт.
