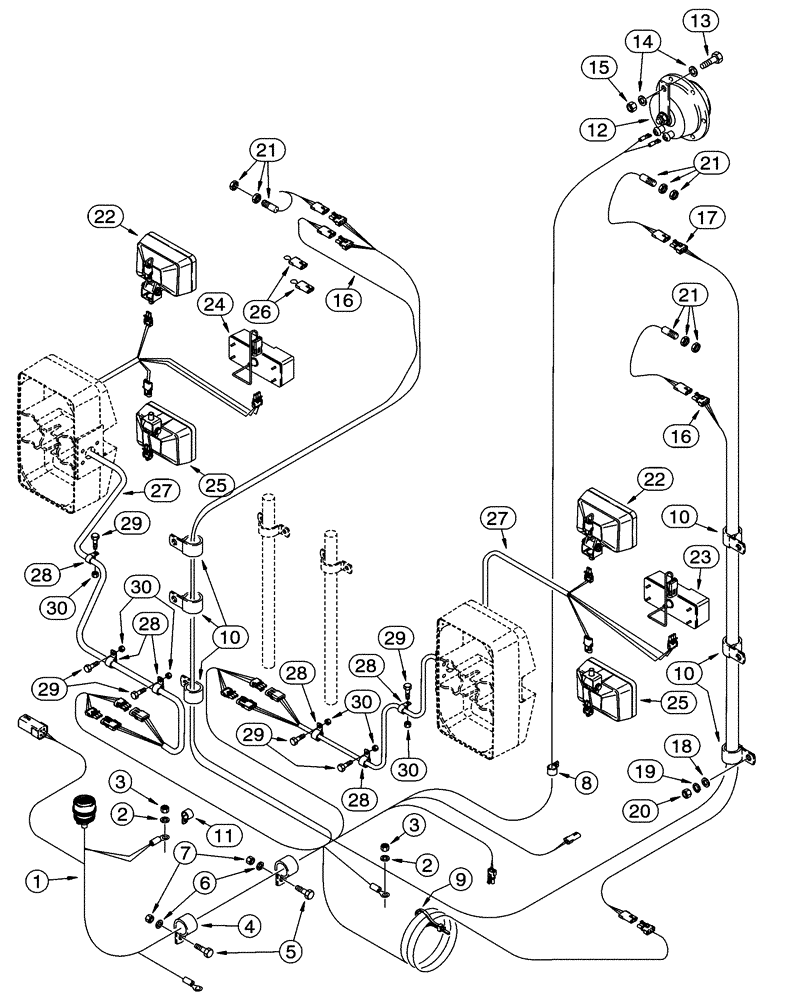

Запчасти Case 621C (04-018) - HARNESS, FRONT LAMPS AND SWITCHES, XT LOADER (04) - ELECTRICAL SYSTEMS

1

284511A2

HARNESS

front

1шт.

2

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

brass

2шт.

3

253347A1

NUT,Hex, M10 x 1.5

brass, M10 - 1.5

2шт.

4

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

Front

1шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

6

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Use existing hardware

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

10

L19029

CLAMP

WIRE jumper, upper four clamps, use existing hardware, 1/2 ID

6шт.

11

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

12

251444A1

ASSEMBLY

300 HZ

1шт.

13

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

14

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

16

115863A1

HARNESS

jumper, height control, Serial Range: return-transport

1шт.

17

118134A1

HARNESS

jumper, Serial Range: return-dig

1шт.

18

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

4шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

20

425-106

NUT,3/8"-16, Cl 5

2шт.

21

1546498C1

SWITCH

proximity, height control, return to transport, return to dig, includes hardware

3шт.

22

A187519

LIGHT ASSY.,24V, 70W, Clear

Driving, See figure 4-85

2шт.

23

A187992

LIGHT ASSY.,24V, 27W, Amber/Clear

Turn signal and flasher, right hand, See figure 4-87

1шт.

24

A187993

LIGHT ASSY.,24V, 27W, Amber/Clear

Turn signal and flasher, left hand, See figure 4-87

1шт.

25

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood, See figure 4-85

2шт.

26

L127785

HARNESS

WIRE jumper, use when height control and return to transport option is not used

2шт.

27

238176A1

HARNESS

extension

2шт.

28

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

4-6шт.

29

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4-6шт.

30

231-1448

NUT,1/2"-13, GB

4-6шт.
