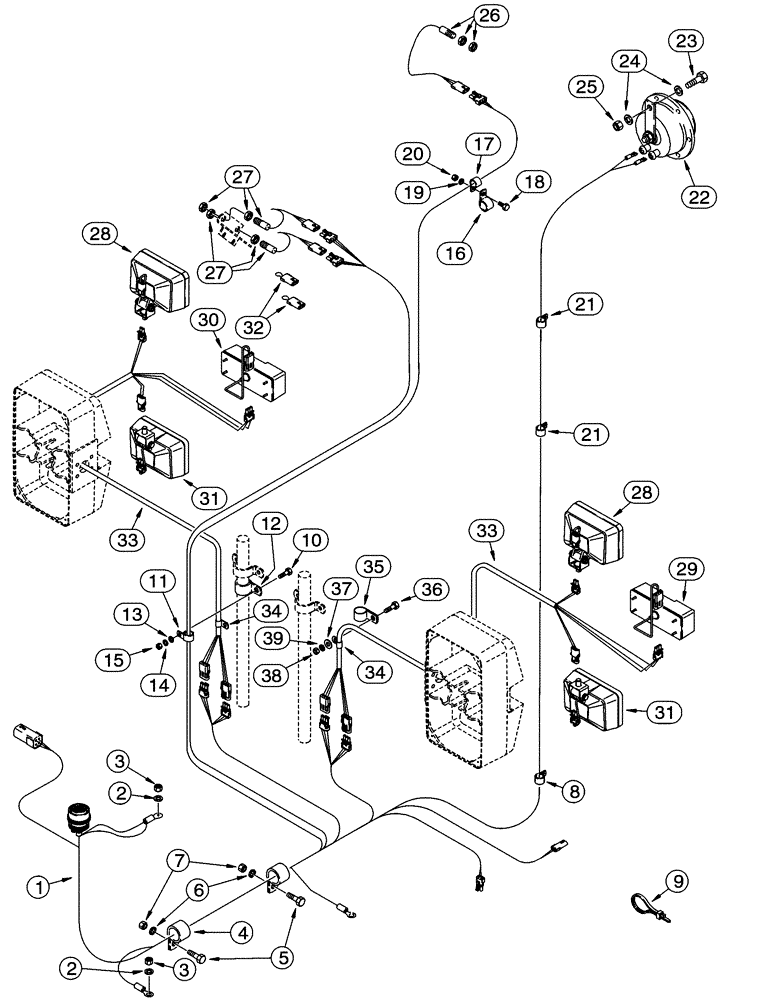

Запчасти Case 621C (04-014) - HARNESS, FRONT LAMPS AND SWITCHES, Z-BAR LOADER (04) - ELECTRICAL SYSTEMS

1

284511A2

HARNESS

front

1шт.

2

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

brass

2шт.

3

253347A1

NUT,Hex, M10 x 1.5

brass, special, M10 - 1.5

2шт.

4

515-23254

CLAMP,1", Insul, 3/8" Bolt

Front, Use existing hardware

1шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

6

892-11010

LOCK WASHER,M10

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Use existing hardware

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

11

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

12

D34033

CLAMP

1-3/16 ID, left hand

1шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

14

892-11010

LOCK WASHER,M10

1шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

16

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

Tube bucket cylinder, 1-1/2 ID

1шт.

17

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Harness To Clamp On Bucket Cylinder Tube

1шт.

18

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

19

892-11010

LOCK WASHER,M10

1шт.

20

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

21

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

harness to clamp on bucket cylinder tube, 1/4 ID

2шт.

22

251444A1

ASSEMBLY

300 HZ

1шт.

23

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

24

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

26

1546497C1

SWITCH

proximity, return to dig, includes hardware

1шт.

27

1546498C1

SWITCH

proximity, height control, return to transport, includes hardware

2шт.

28

A187519

LIGHT ASSY.,24V, 70W, Clear

Driving, See figure 4-85

2шт.

29

A187992

LIGHT ASSY.,24V, 27W, Amber/Clear

Turn signal and flasher, right hand, See figure 4-87

1шт.

30

A187993

LIGHT ASSY.,24V, 27W, Amber/Clear

Turn signal and flasher, left hand, See figure 4-87

1шт.

31

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood, See figure 4-85

2шт.

32

L127785

HARNESS

WIRE jumper, use when height control and return to transport option is not used

2шт.

33

238176A1

HARNESS

extension

2шт.

34

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

35

D34033

CLAMP

1-3/16 ID

1шт.

36

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

1шт.

37

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

1шт.

38

425-106

NUT,3/8"-16, Cl 5

1шт.

39

492-11038

LOCK WASHER,3/8"

1шт.
