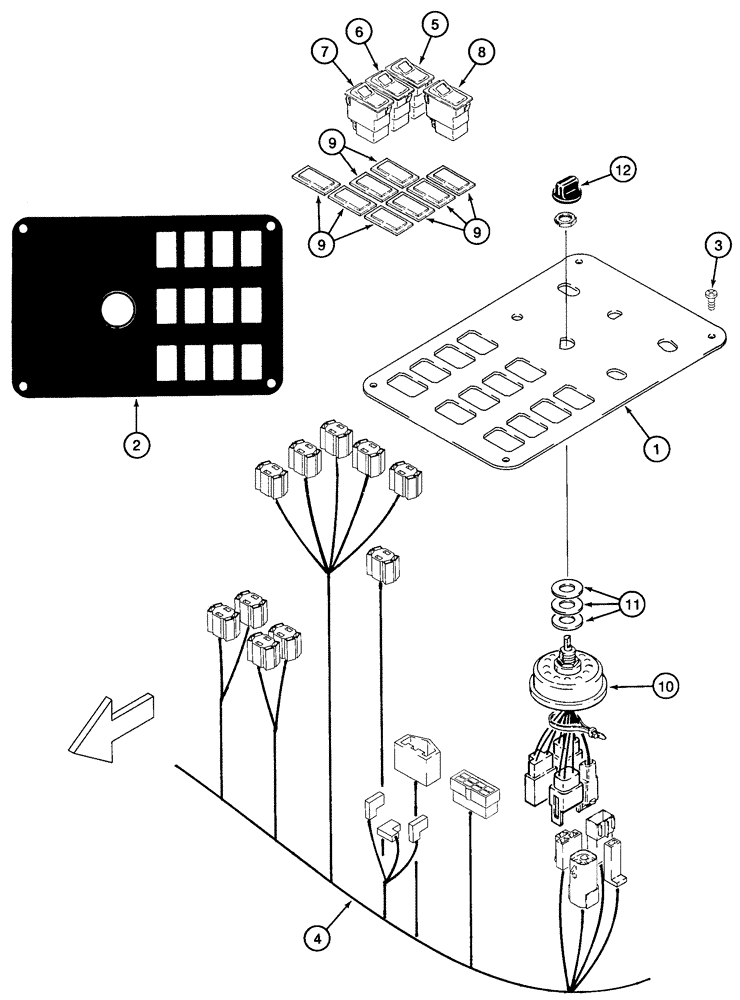

Запчасти Case 621C (04-010) - PANEL, CONTROL, WITH CANOPY, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS

1

197377A1

PANEL

control

1шт.

2

283426A1

DECAL

canopy switches

1шт.

3

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

Replaces: P/N 940-1412

4шт.

4

242101A4

HARNESS

cab main, Replaces: P/N 242101A2, P/N 242101A3

1шт.

5

234196A1

SWITCH

declutch

1шт.

6

234205A1

SWITCH

detent

1шт.

7

234206A1

SWITCH

, Serial Range: return-travel

1шт.

8

234949A1

SWITCH

Trans., auto

1шт.

9

86000535

PLUG,1.427" x .62", Plastic

Switch Opening

8шт.

10

1994716C1

LIGHT SWITCH

Lamp

1шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

3шт.

12

1994720C1

KNOB

control

1шт.
