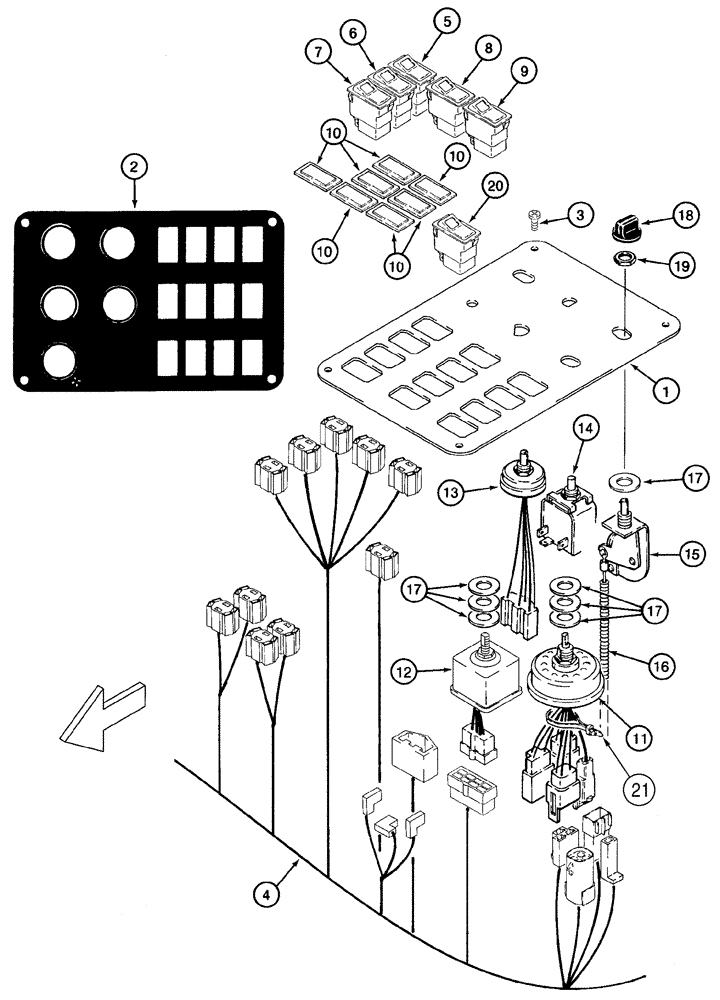

Запчасти Case 621C (04-008) - PANEL, CONTROL, WITH CAB (04) - ELECTRICAL SYSTEMS

1

197377A1

PANEL

control

1шт.

2

283423A1

DECAL

cab switches

1шт.

3

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

Replaces: P/N 940-1412

4шт.

4

242101A4

HARNESS

cab, main, Replaces: P/N 242101A2, P/N 242101A3

1шт.

5

234196A1

SWITCH

rocker, declutch

1шт.

6

234205A1

SWITCH

detent

1шт.

7

234206A1

SWITCH

, Serial Range: return-travel

1шт.

8

234949A1

SWITCH

Trans., auto

1шт.

9

234195A1

SWITCH

rocker, rear wiper and washer

1шт.

10

86000535

PLUG,1.427" x .62", Plastic

Switch Opening

6-7шт.

11

1994716C1

LIGHT SWITCH

Lamp

1шт.

12

197952A1

SWITCH

windshield wiper, front

1шт.

13

92100C2

SWITCH

blower motor

1шт.

14

A187954

SWITCH

thermostat

1шт.

250742A1

ELECTRIC CABLE

Consists of: Refs. 15 and 16

1шт.

15

1954651C2

CONTROL

1шт.

16

250739A1

CABLE,510mm L

1шт.

17

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

7шт.

18

1994720C1

KNOB

control

5шт.

19

109311H

JAM NUT

7/16 NF

1шт.

20

234207A1

SWITCH

rear fog lamp, if used

1шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.
