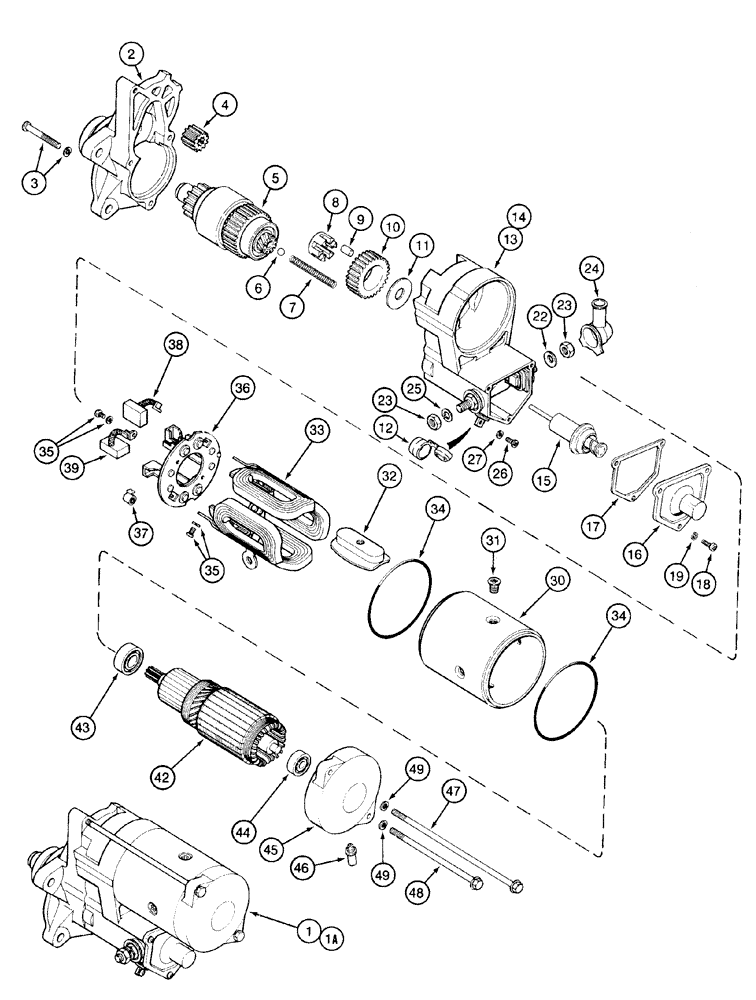

Запчасти Case 621C (04-004) - STARTER (04) - ELECTRICAL SYSTEMS

1

1987566C1

STARTER MOTOR,24V, 5.5kW

ASSY., Nippondenso No. 128000-2561, Includes: Refs. 2 - 49, if used

1шт.

1

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

1

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

1

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

1

332443A1

STARTING MOTOR

ASSY., Nippondenso No. 228000-8570, Includes: Refs. 2 - 49, if used

1шт.

2

A49797

HOUSING

1шт.

3

A47129

CAPTIVE WASHER SCREW

3шт.

4

A49809

PINION

GEAR

1шт.

5

A49802

CLUTCH

no longer available, Order: P/N 1981576C1

1шт.

5

1981576C1

CLUTCH

Replaces: P/N A49802

1шт.

6

211-1311

BALL,11/32" Dia

200, CRS

1шт.

7

A47232

SPRING

2-13/16

1шт.

8

A47236

RETAINER

1шт.

9

A47235

ROLLER BEARING

5шт.

10

A49810

GEAR

1шт.

11

A47234

WASHER

1шт.

12

104589A1

BUSHING

1шт.

14

104598A1

SOLENOID SWITCH

Assy, Includes: Refs. 15 - 19

1шт.

15

NSS

NOT SOLD SEPARAT

SOLENOID

1шт.

16

NSS

NOT SOLD SEPARAT

COVER

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET cover

1шт.

18

NSS

NOT SOLD SEPARAT

BOLT

3шт.

22

A10454

WAVE WASHER

spring

1шт.

23

825-1410

NUT,M10, Cl 8

2шт.

24

A49805

COVER

1шт.

25

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

Replaces P/N 892-11010

1шт.

26

A46950

SCREW,M5 x 0.8 x 0.8mm

M5 x 8

1шт.

27

892-11005

LOCK WASHER,M5

1шт.

30

A49804

HOUSING

Includes: Refs. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW

4шт.

32

NSS

NOT SOLD SEPARAT

SHOE

4шт.

33

NSS

NOT SOLD SEPARAT

COIL

1шт.

34

298253A1

SEAL,2.1mm Thk x 93mm ID

Replaces: P/N A49812

2шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

ASSY.

4шт.

36

A49806

BRUSH HOLDER

Includes: Ref. 37

1шт.

37

A47249

SPRING

4шт.

38

A49807

COMMUTATOR BRUSH

2шт.

39

A49808

COMMUTATOR BRUSH

2шт.

42

A49801

ROTOR

ARMATURE ASSY., Includes: Refs. 43 and 44

1шт.

43

A49800

BALL BEARING,15 mm ID x 35 mm OD x 11 mm

15 x 35 x 11 mm, if used

1шт.

44

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

1-2шт.

45

A49811

COVER ASSY

FRAME, no longer used, Order: P/N 298255A1

1шт.

45

298255A1

HOUSING

Replaces: P/N A49811

1шт.

46

A49803

BREATHER

1шт.

47

104593A1

FLANGE BOLT

7 x 206 mm

1шт.

48

104594A1

FLANGE BOLT

7 x 144 mm

1шт.

49

A49815

LOCK WASHER

lock

2шт.
