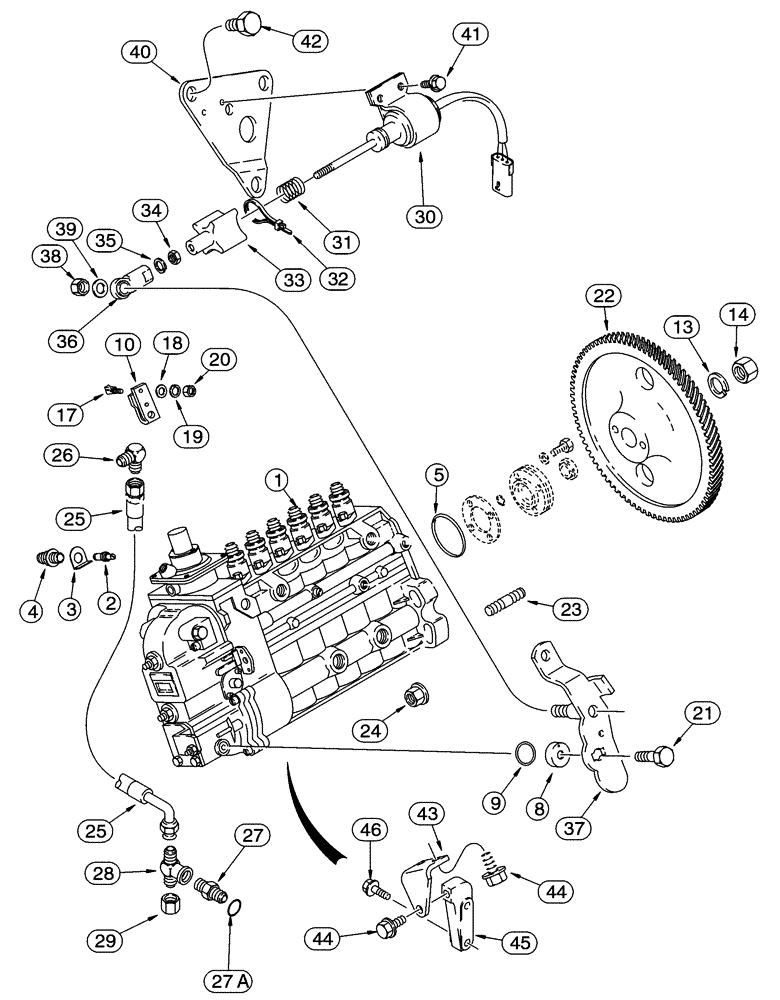

Запчасти Case 621C (03-016) - FUEL INJECTION - PUMP AND DRIVE (NORTH AMERICA/EUROPE), 6T-590 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
J929406
PUMP, FUEL INJECTION
PUMP, INJECTION ASSY., Consists of: Refs. 2 - 21
1шт.
1
JR929406
REMAN-INJECTION PUMP
Remanufactured Pump Assy
1шт.
1
JC929406
CORE-INJECTION PUMP
Return Number
1шт.
2
A77720
PIN
1шт.
3
J928981
LOCK WASHER
1шт.
5
J935032
SEAL
O-RING
1шт.
8
691292C1
RETAINER
HOUSING
1шт.
9
680187C1
O-RING,2.5mm Thk x 9mm ID
O-RING
1шт.
10
1808728C1
LEVER
1шт.
13
A77775
LOCK WASHER
1шт.
14
A41852
LOCK NUT
1шт.
17
1808822C1
THUMB SCREW,M6 x 26mm
BOLT
1шт.
18
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
1шт.
19
892-11006
LOCK WASHER,M6
1шт.
20
829-1306
NUT,M6, Cl 10
1шт.
21
628-6016
BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd
1шт.
22
J934636
PINION
GEAR
1шт.
23
J915036
STUD
2-5/32 in, (55 mm)
4шт.
24
825-2410
FLANGE NUT,M10 x 1.5, Flg, Cl 8
4шт.
25
J918536
FLEXIBLE HOSE,295.00 mm
1шт.
26
A77512
ELBOW
90 Deg., male
1шт.
27
J932321
UNION
ADAPTER, Includes: Ref. 27A
1шт.
27a
637-62081
O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro
1шт.
28
J924346
TEE
1/8 PT x 7/16
1шт.
29
218-752
CAP,37 Degree, 7/16"-20
1шт.
30
J932530
SOLENOID
24V, Consists of: Refs. 31 - 36
1шт.
31
311100A1
SPRING
1шт.
32
473321C1
CABLE TIE,8" OAL x 0.098" W
CABLE STRAP
1шт.
33
J925171
BOOT
1шт.
34
425-154
JAM NUT,Jam, 1/4"-28, G5
1шт.
35
492-11025
LOCK WASHER,1/4"
1шт.
36
311099A1
JOINT
ball
1шт.
J802998
PACKAGE,SERVICE
Consists of: Refs. 37, 38, 39
1шт.
37
NSS
NOT SOLD SEPARAT
LEVER
1шт.
38
832-41306
NUT,M6 x 1, Cl 10
1шт.
39
J934022
WASHER
1шт.
40
J930589
SUPPORT
BRACKET
1шт.
41
844-6012
BOLT,Hvy Hex, M6 x 12mm, Cl 8.8
2шт.
42
J929456
SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8
3шт.
43
J863311
BRACE
1шт.
44
854-10020
BOLT,Hvy Hex, M10 x 20mm, Cl 10.9
3шт.
45
J863312
BRACE
1шт.
46
844-8035
BOLT,Hvy Hex, M8 x 35mm, Cl 8.8
2шт.
Выбрано товаров: 44
