Запчасти Case 621C (03-012) - FUEL FILTER - PUMP, TRANSFER (NORTH AMERICA/EUROPE), 6T-590 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

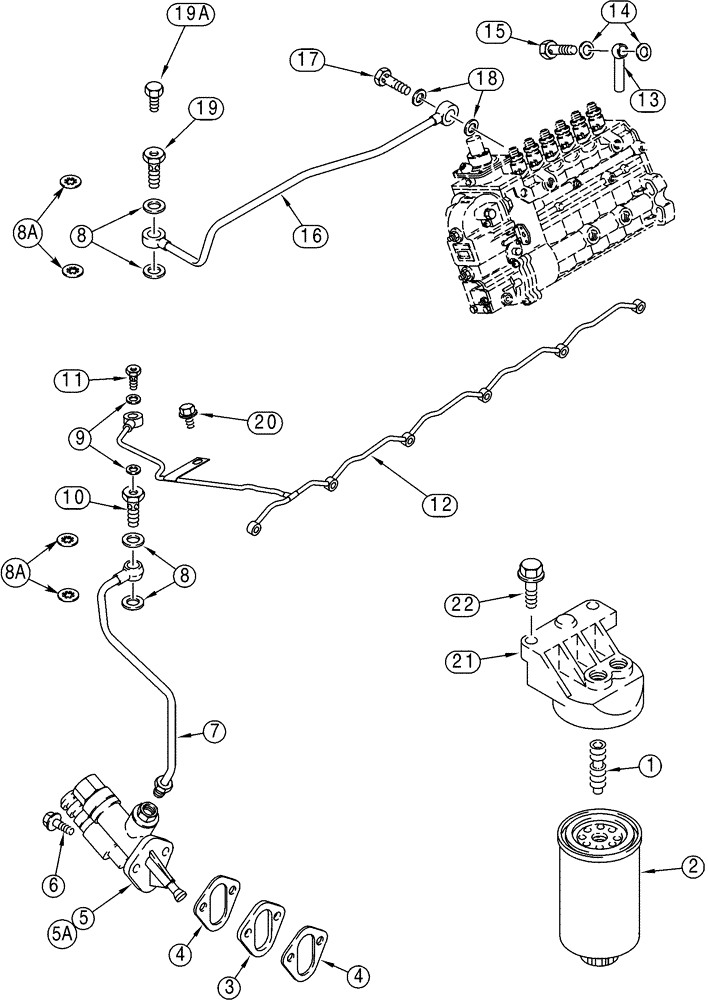

Схема запчастей Case 621C - (03-012) - FUEL FILTER - PUMP, TRANSFER (NORTH AMERICA/EUROPE), 6T-590 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
15
19
9
17
19a
3
1
5
4
8
14
22
18
4
8a
8
7
16
11
12
2
10
13
6
5a
20
8a
21

Артикул

Название

Примечание

Количество

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

2

J931062

FILTER

fuel

1шт.

3

J914284

SPACER

1шт.

4

J931059

GASKET

mounting

2шт.

5

J933252

FEED PUMP

no longer used, Order: P/N J936316

1шт.

5a

J936316

FUEL PUMP

Replaces: P/N J933252

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J928423

FUEL TUBE,8 mm OD x 323.9 mm L

1шт.

8

J918191

PACKING RING

WASHER, 12 x 18 x 1 mm, no longer used, Order: P/N J935171

4шт.

8a

J935171

SEALING WASHER

12 x 19 x 1.5 mm, Replaces: P/N J918191

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

10

J916361

BANJO BOLT

M12 x 24

1шт.

11

J924726

BANJO BOLT

check

1шт.

12

J933295

MANIFOLD

1шт.

13

J911447

CONNECTOR, ELEC

CONNECTOR

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

15

J932096

VALVE

1шт.

16

J930735

FUEL TUBE,8 mm OD

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

J905860

BANJO BOLT

Consists of: Refs. 19 and 19A

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT

1шт.

19a

NSS

NOT SOLD SEPARAT

SCREW

1шт.

20

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

21

J933752

HEAD

1шт.

22

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

Выбрано товаров: 26
