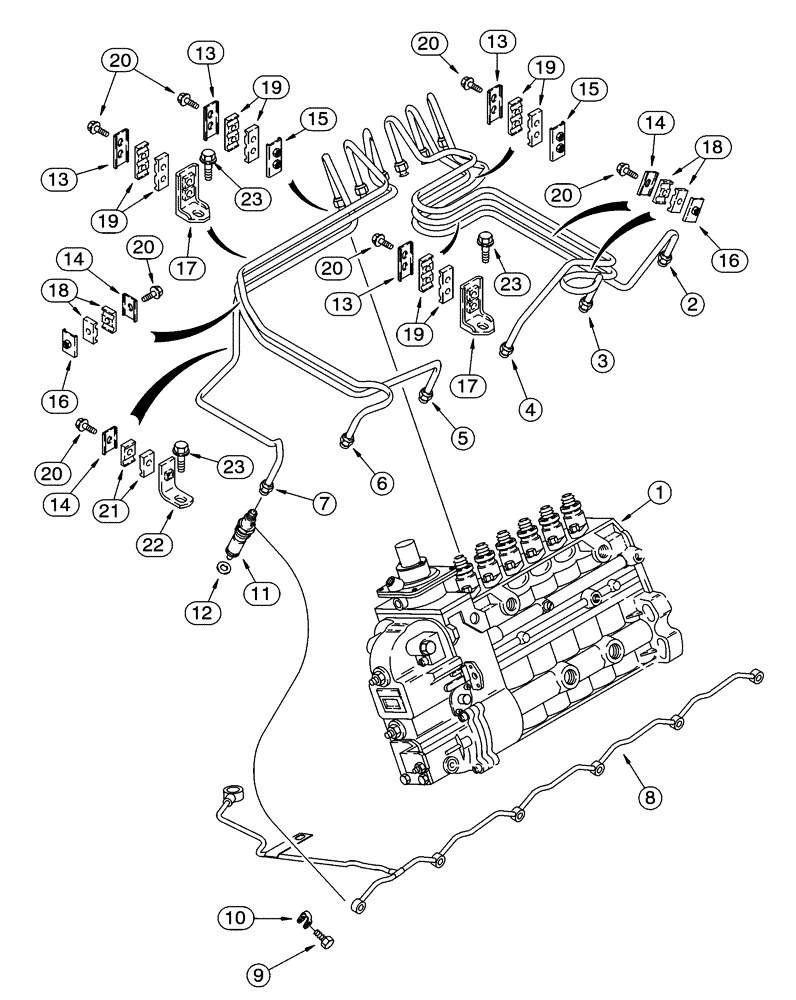

Запчасти Case 621C (03-010) - FUEL INJECTION SYSTEM (NORTH AMERICA/EUROPE), 6T-590 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J929406

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY, See figure 3-17

1шт.

2

J929462

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 1

1шт.

3

J929463

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 2

1шт.

4

J929464

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 3

1шт.

5

J929465

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 4

1шт.

6

J929466

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 5

1шт.

7

J932495

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

No. 6

1шт.

8

J933295

MANIFOLD

TUBE

1шт.

9

J905307

BANJO BOLT,M6 x 1 x 14.30mm

6шт.

10

J903380

SEAL

6шт.

11

J929490

NOZZLE INJECTION

ASSY, See figure, 3-21

6шт.

11

JR929490

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

6шт.

11

JC929490

CORE-FUEL INJECTOR

Return Number, INJECTION NOZZLE

6шт.

12

J906659

SEAL

1.5 mm

6шт.

13

J904519

SUPPORT

4шт.

14

CURJ904711

CLAMP

4шт.

15

J917716

BRACE

2шт.

16

J917717

BRACE

3шт.

17

J282942

BRACKET

2шт.

18

J917746

CLAMP

5шт.

19

J917747

CLAMP

8шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

14шт.

21

J919359

CLAMP

2шт.

22

J940840

BRACE

1шт.

23

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.
