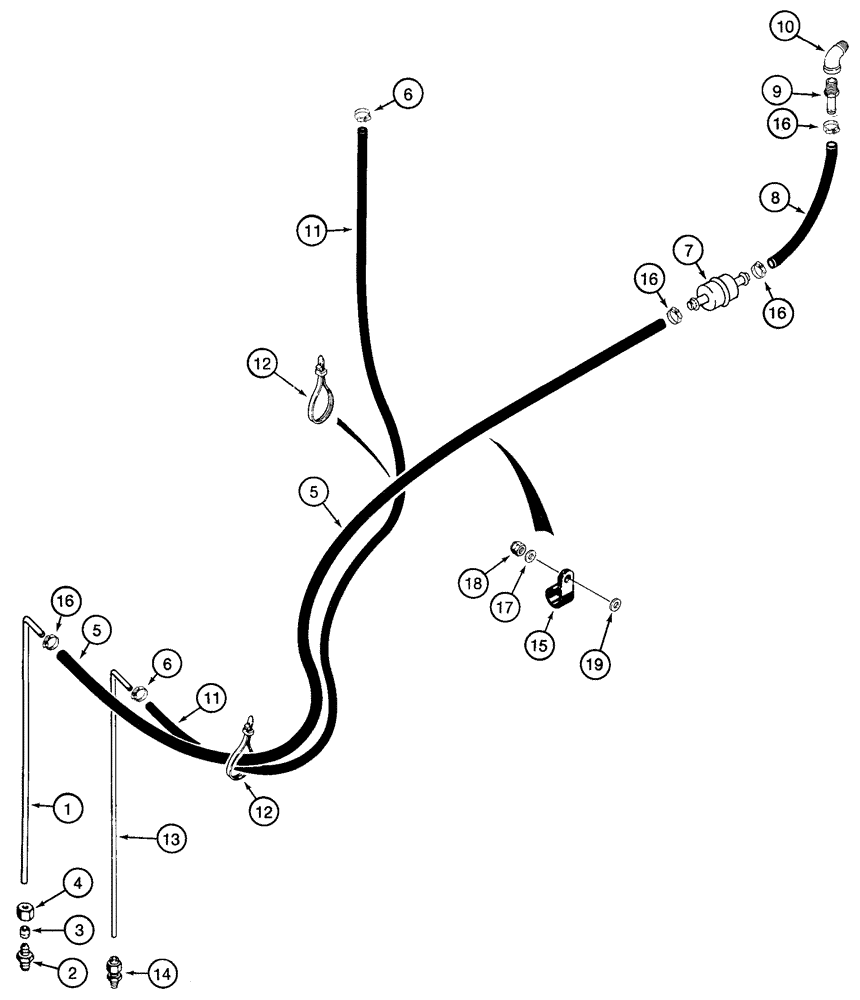

Запчасти Case 621C (03-006) - FUEL LINES FILTER, IN-LINE FUEL (03) - FUEL SYSTEM

1

248051A1

FUEL TUBE,12.7 mm OD, 478, 46 mm Length

supply

1шт.

222-649

FITTING,5/8"-24 x 1/2" NPT, Comp

1/2 tube O.D. x 1/2 PT, compression, Includes: Refs. 2-4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

222-656

SLEEVE

1/2 tube O.D.

1шт.

4

222-666

NUT,5/8"-24, 45 Degree Fl, Comp

1/2 tube O.D. x 11/16

1шт.

5

226615A1

FUEL HOSE

56 in, (1422 mm), cut from P/N 32-80

1шт.

6

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

7

194199A1

FUEL FILTER

in line

1шт.

8

226084A1

HOSE, BULK

HOSE, METERS 9-1/2 in, (241 mm), cut from P/N 32-80

1шт.

9

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

10

217-1096

ELBOW,90 Degree, 1/2"-14 Male x 3/8"-18 Female

1шт.

11

226616A1

FUEL HOSE

42 in, (1067 mm), return, cut from 31-2855

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

13

L126216

FUEL TUBE,7.94 mm OD x 478, 46 mm L

TUBE

1шт.

14

L125532

FITTING

ADAPTER, component parts not serviced separately

1шт.

15

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

16

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

19

S95569

WASHER

special

1шт.
