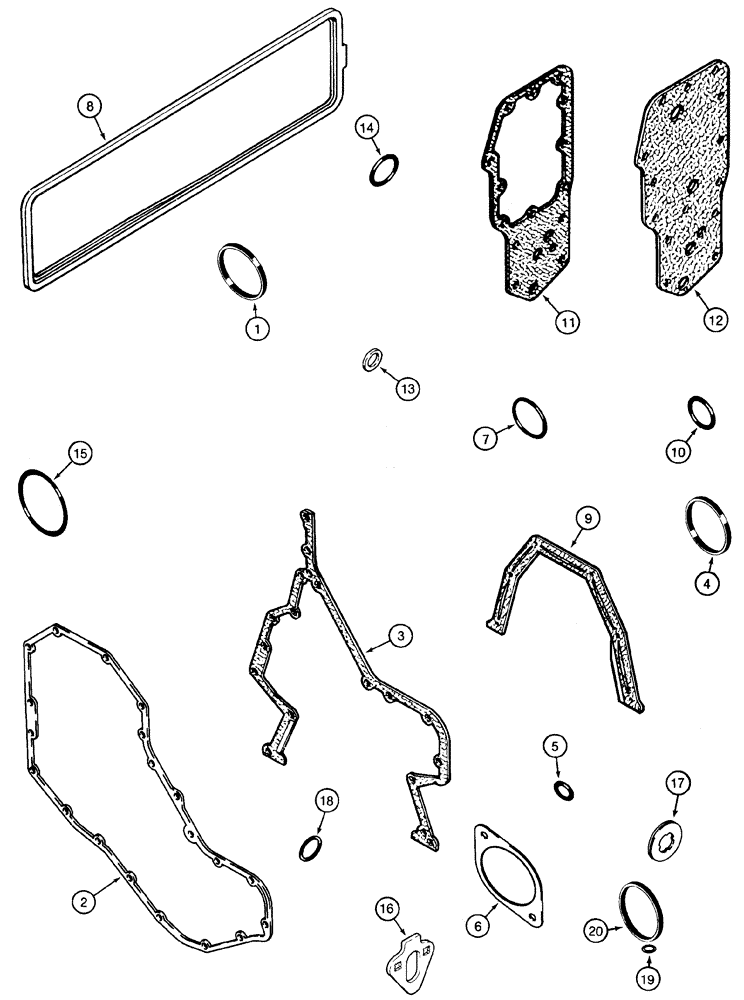

Запчасти Case 621C (02-025) - GASKET KIT (NORTH AMERICA/EUROPE), 6T-590 EMISSIONS CERTIFIED ENGINE, CYLINDER BLOCK (02) - ENGINE

A77868

SEAL PACKAGE

Consists of: Refs. 1 - 20

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See figure 2-27

1шт.

2

J918673

GASKET,1.02mm Thk

See figure 2-27

1шт.

3

J931351

GASKET

See figure 2-27

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING See figure 2-27

1шт.

5

J913994

O-RING

See figure 2-27

1шт.

6

J929751

GASKET

See figure 2-27

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

See figure 2-23, 2-25

1шт.

8

J928832

GASKET

See figure 2-55, 2-63, no longer used, Order: P/N J284623

1шт.

8

J284623

GASKET

See figure 2-55, 2-63, Replaces: P/N J928832

1шт.

9

J928493

GASKET

See figure 2-69, no longer used, Order: P/N J938159

1шт.

9

J938159

GASKET

See figure 2-69, Replaces: P/N J928493

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See figure 2-55, 2-63

1шт.

11

J929791

GASKET

See figure 2-33, no longer used, Order: P/N J942914

1шт.

11

J942914

GASKET

See figure 2-33, Replaces: P/N J929791

1шт.

12

J929792

GASKET,1.2mm Thk

See figure 2-33

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See figure 2-35, 2-37

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID, not used in this application

1шт.

15

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See figure 2-75

1шт.

16

J931059

GASKET

See figure 3-13

1шт.

17

J928759

SEALING WASHER

See figure 2-53, 2-63

8шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

See figure 2-75

1шт.

19

J929457

O-RING

23/32 ID x 7/64, See figure 2-33

1шт.

20

J935032

SEAL

See figure 3-17

1шт.
