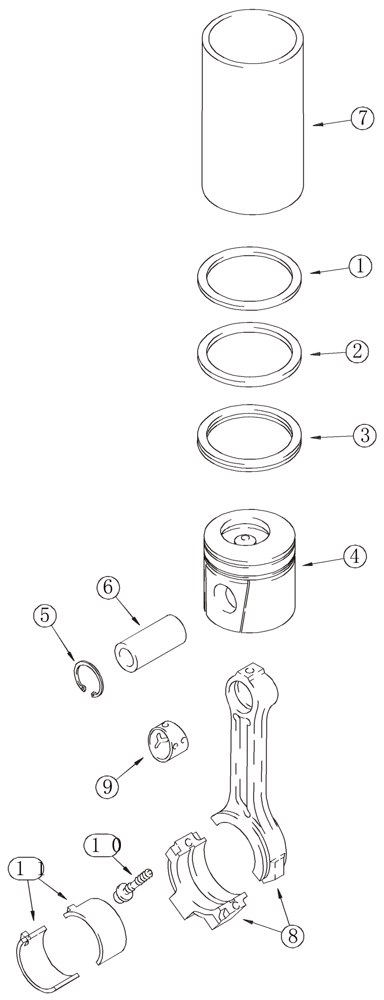

Запчасти Case 621C (02-023) - PISTONS - CONNECTING RODS (NORTH AMERICA/EUROPE), 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

standard, Consists of: P/N J802746, and Refs. 1 - 5

6шт.

J802746

PISTON RING SET

Consists of: Refs. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON standard

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

J802764

PISTON & RINGS KIT

0.5 mm, Oversize 0.5 mm, Consists of: P/N J802422, Refs.1 - 5

6шт.

J802422

PISTON RING SET

0.5 mm, Consists of: Refs. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON, oversize 0.5 mm

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

J802765

PISTON & RINGS KIT

1.0 mm, Oversize 1.0 mm, Consists of: P/N J802423, Refs. 1 - 5

6шт.

J802423

PISTON RING SET

1.0 mm, Consists of: Refs. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING top

1шт.

2

NSS

NOT SOLD SEPARAT

RING middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON, oversize 1.0 mm

1шт.

5

J901706

RING

2шт.

6

J919053

PISTON PIN

1шт.

7

J904166

SLEEVE

use with P/N J802747

1шт.

7

JR942581

REMAN-CONNECTING ROD

Reman for New PN J904166

1шт.

7

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod

1шт.

J942581

ROD, CONNECTING

ASSY., Consists of: Refs. 8 - 10, connecting rod

1шт.

1

84145405R

REMAN-CONNECTING ROD

621C (1/99-), Reman For New PN J942581

1шт.

1

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

ROD, connecting

1шт.

9

J941476

BUSHING

Connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59, connecting rod

2шт.

11

A77465

BEARING SET

standard, connecting rod

6шт.

11

A77466

BEARING SET

0.25 mm, undersize 0.25 mm, connecting rod

6шт.

11

A77467

BEARING LINER

0.50 mm, undersize 0.50 mm, connecting rod

6шт.

11

A77468

BEARING SET

0.75 mm, undersize 0.75 mm, connecting rod

6шт.

11

A77469

BEARING SET

1.0 mm, undersize 1.00 mm, connecting rod

6шт.
