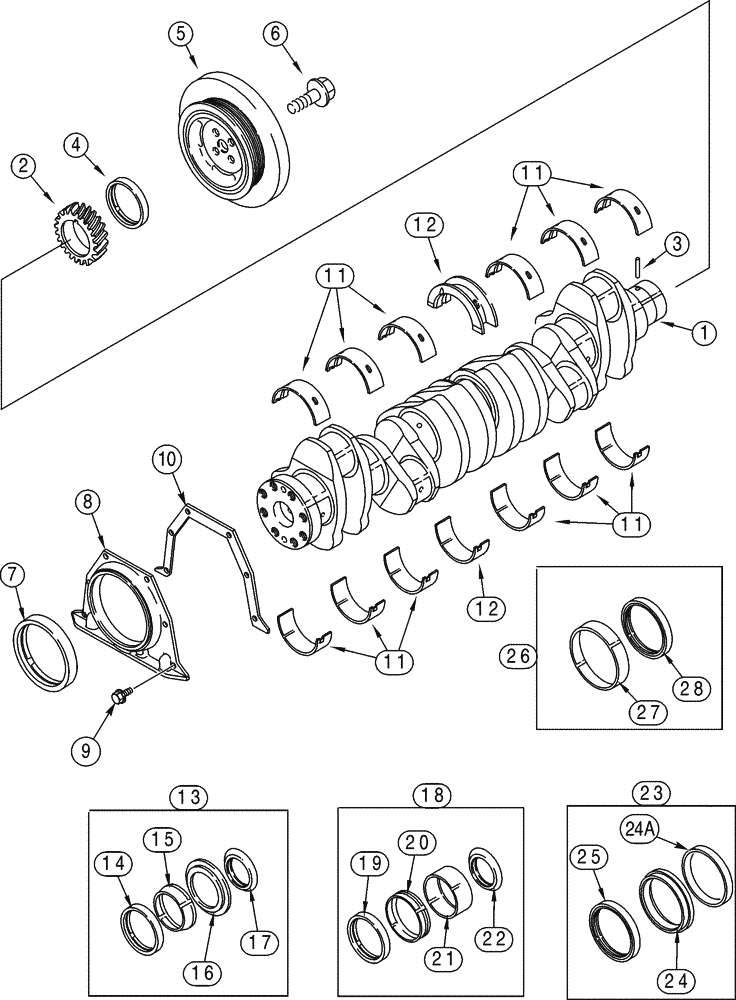

Запчасти Case 621C (02-021) - CRANKSHAFT (NORTH AMERICA/EUROPE), 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

JR908032

REMAN-CRANKSHAFT

ASSY., North America only, Order: P/N J908032

1шт.

JC908032

CORE-CRANKSHAFT

1шт.

1

J908032

CRANKSHAFT

ASSY., Consists of: 2 and 3

1шт.

2

J929027

PINION

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, Order: P/N A77889, See figure 2-73

1шт.

5

J914454

DAMPER

PULLEY

1шт.

6

J903857

BOLT,Hex, M12 x 1.25 x 36mm

flange, M12 x 36

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL, Order: P/N J909411, See figure 2-73

1шт.

8

J921043

REAR COVER

RETAINER, no longer available, Order: P/N J936904

1шт.

8

J936904

REAR COVER

Replaces: P/N J921043

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J928493

GASKET

mounting, no longer used, Order: P/N J938159

1шт.

10

J938159

GASKET

mounting, Replaces: P/N J928493

1шт.

11

A77405

CRANKSHAFT BEARING

standard

6шт.

11

A77472

BEARING SET

0.25 mm, Undersize

6шт.

11

A77474

BEARING SET

0.50 mm, Undersize

6шт.

11

A77476

BEARING SET

0.75 mm, Undersize

6шт.

11

A77478

BEARING SET

1.0 mm, Undersize

6шт.

12

A77896

BEARING SET

CRANKSHAFT, standard

1шт.

12

A77473

THRUST BEARING

0.25 mm, Undersize

1шт.

12

A77475

THRUST BEARING

CRANKSHAFT, 0.50 mm, Undersize

1шт.

12

A77477

THRUST BEARING

CRANKSHAFT, 0.75 mm, Undersize

1шт.

12

A77479

THRUST BEARING

CRANKSHAFT, 1.0 mm, Undersize

1шт.

12

A77841

THRUST BEARING

CRANKSHAFT, 0.50 mm, Undersize, Oversize 0.50 mm

1шт.

12

A77840

THRUST BEARING

CRANKSHAFT, 1.0 mm, Undersize 1.00 mm, Oversize 1.00 mm

1шт.

13

A77889

SEAL PACKAGE

CRANKSHAFT front, Consists of: Refs. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL

1шт.

17

NSS

NOT SOLD SEPARAT

SHIELD

1шт.

18

A77890

SEAL PACKAGE

CRANKSHAFT front, Consists of: Refs. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD

1шт.

23

J909411

SEAL

CRANKSHAFT rear, Consists of: Refs. 24 - 25

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL

1шт.

24a

NSS

NOT SOLD SEPARAT

TOOL

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL

1шт.

26

J929106

SEAL

CRANKSHAFT rear, Consists of: Refs. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL

1шт.
