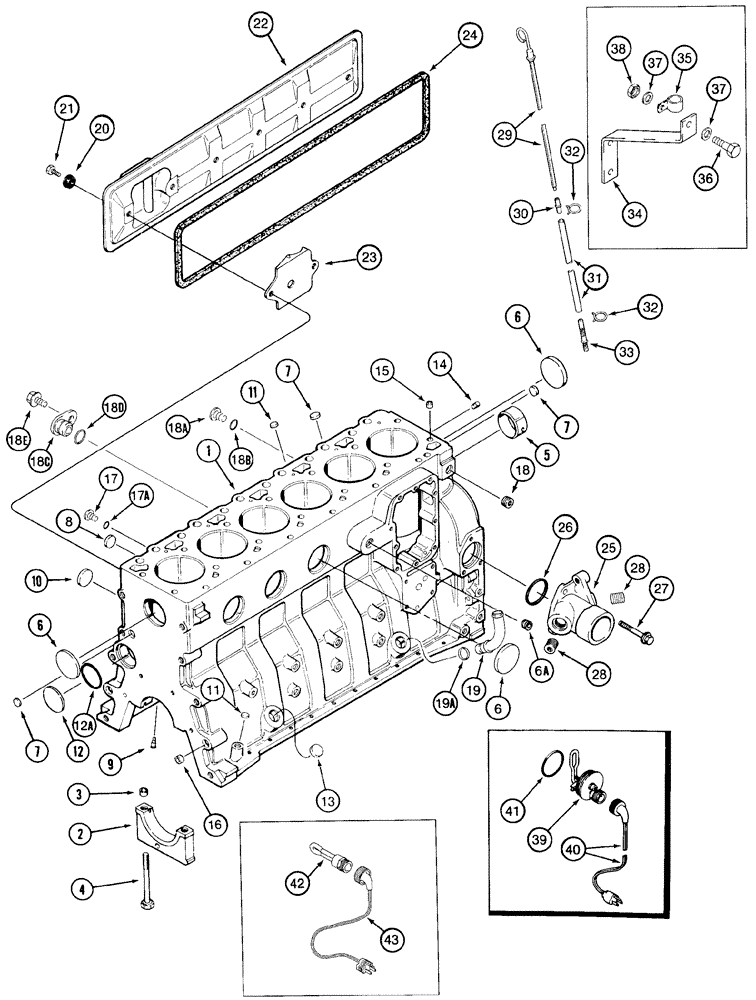

Запчасти Case 621C (02-020) - CYLINDER BLOCK EUROPE, 6T-590 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

296651A1

Complete Engine, Less: Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order: P/N 246148A2

1шт.

246148A2

BASIC ENGINE

Less: Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler; See Note

1шт.

J933645

SKELETON ENGINE

short, with: Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Consists of Refs. 1 - 8

1шт.

JR933645

REMAN-SHORT ENGINE

Remanufactured

1шт.

6-590-SHBC

CORE-SHORT ENGINE

Return Part Number, Block Assy., Engine Cyl. Short 6T/6TA

1шт.

1

J933712

CYLINDER BLOCK

ASSY., stripped, Consists of: Refs. 2 - 8, Order: P/N J933220

1шт.

2

J903492

BEARING CAP

includes P/N J900068

7шт.

3

J900068

BEARING WASHER

18 mm O.D.

14шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

14шт.

5

REF

INSTRUCTION

BUSHING front, see figure 2-47

1шт.

6

A77782

PLUG

58 mm

6шт.

6a

A77505

PLUG

3/4 PT

1шт.

8

41-1616

PLUG,Cup, 1", Stainless

4шт.

J933220

PACKAGE,SERVICE

KIT block, Includes: Refs. 9 - 18D

1шт.

9

J930139

NOZZLE CAP

no longer used, Order: P/N J937214

6шт.

9

J937214

NOZZLE CAP

Replaces: P/N J930139

6шт.

10

J900958

PLUG

32 mm O.D.

1шт.

11

J900955

PLUG

10 mm O.D.

3шт.

12

172599

PLUG,Exp, 2 3/8"

60 mm O.D.

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

13

J920706

PLUG

22 mm

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

15

J902343

DOWEL

16 mm O.D.

2шт.

16

J900068

BEARING WASHER

18 mm O.D.

2шт.

17

J678923

PLUG,M10 x 1

10 mm, Includes: Ref. 17A

3шт.

17a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

18

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

1шт.

18a

J678921

PLUG

14 mm, Includes: Ref.18B

1шт.

18b

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

18c

J932296

PLUG

Includes: Ref.18D

1шт.

18d

J330478

O-RING,0.07" Thk x 0.676" ID

1шт.

18e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

19

J931973

TUBE,0.875" OD

used with P/N J931824

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

20

J900267

SEAL

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

22

J927913

COVER

1шт.

23

J907586

BAFFLE

Also Order: P/N J823494

1шт.

23a

J823494

SEALANT

3 oz., not illustrated

1шт.

24

J928832

GASKET

no longer used, Order: P/N J284623

1шт.

24

J284623

GASKET

Replaces: P/N J928832

1шт.

25

J916625

CONNECTING BLOCK

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

27

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

28

A77429

PLUG

1/2 PT

2шт.

29

J914923

DIPSTICK,678.8mm L

1шт.

30

J905802

FITTING,9.53 mm OD x 39 mm L

1шт.

31

J280812

TUBE

no longer used, Order: P/N J285961

1шт.

31

J285961

TUBE,9.7 mm ID x 12.7 mm OD

Replaces: P/N J280812

1шт.

32

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

33

J905127

TUBE,9.52 mm OD x 180 mm L

1шт.

34

247726A1

SUPPORT

1шт.

35

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

1шт.

36

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

1шт.

37

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

38

425-104

NUT,1/4"-20, Cl 5

1шт.

124340A1

KIT

coolant heater, 40V, Consists of: Refs. 39 - 41, Engine Block

1шт.

39

NSS

NOT SOLD SEPARAT

ELEMENT, Engine Block Heater

1шт.

40

J905114

ELECTRIC CABLE

72 in., (1829), Engine Block Heater

1шт.

41

J910517

O-RING

Engine Block Heater

1шт.

309652A1

KIT

240V, Consists of: Refs. 42, 43

1шт.

42

NSS

NOT SOLD SEPARAT

ELEMENT, Replaces: P/N A77505

1шт.

43

196466A1

ELECTRIC CABLE

72 in, (1829 mm), no longer used, Order: P/N J905114

1шт.

43

J905114

ELECTRIC CABLE

72 in, (1829), Replaces: P/N 196466A1

1шт.

A77886

PACKAGE, REPAIR

BLOCK engine, not illustrated, Repair Kit, Consists of: Refs. 44 - 51

1шт.

44

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

See Figure 2-77, Repair Kit

6шт.

45

J919053

PISTON PIN

See Figure 2-77, Repair Kit

6шт.

46

A77465

BEARING SET

See Figure 2-81, Repair Kit

6шт.

47

A77405

CRANKSHAFT BEARING

See Figure 2-69, Repair Kit

6шт.

48

A77896

BEARING SET

See Figure 2-71, Repair Kit

1шт.

49

A77871

SEAL PACKAGE

See Figure 2-83, no longer available, Order: P/N A77925, Repair Kit

1шт.

49

A77925

GASKET KIT

See Figure 2-83, Replaces: P/N A77871, Repair Kit

1шт.

50

J283335

GASKET,2.32mm Thk

See Figure 2-41, Repair Kit

1шт.

51

A77676

GASKET KIT

See Figure 2-37, no longer used, Order: P/N A77979, Repair Kit

1шт.

51

A77979

GASKET KIT

See Figure 2-37, Replaces: P/N A77676, Repair Kit

1шт.
