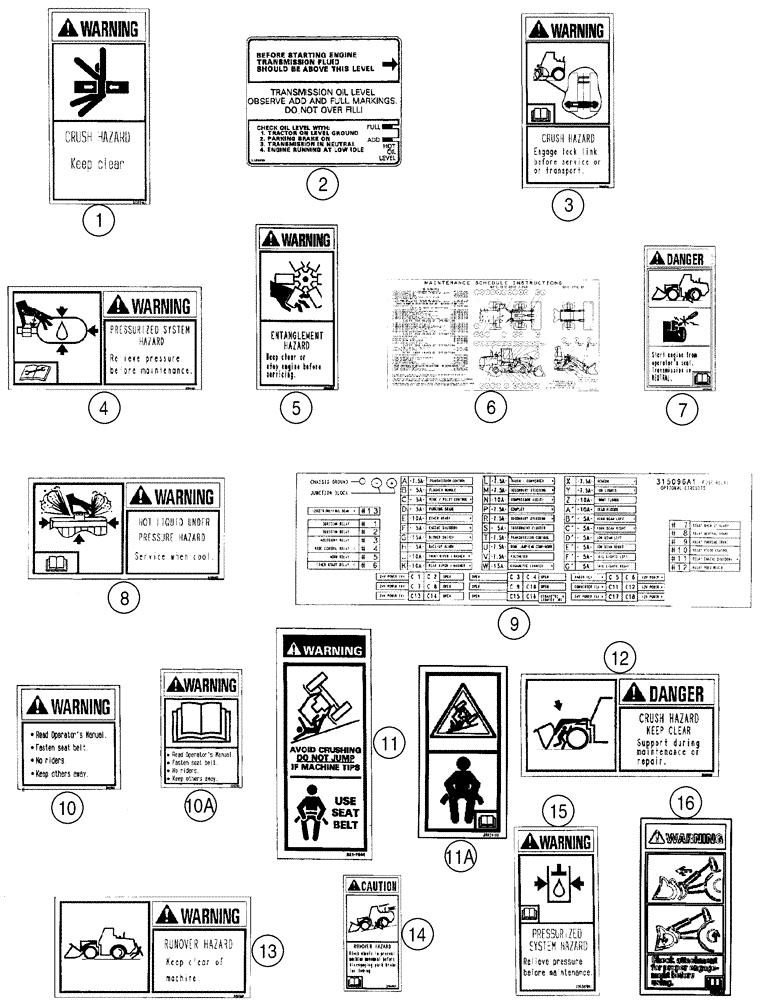

Запчасти Case 621C (09-066) - DECALS- ENGLISH (09) - CHASSIS

REF

INSTRUCTION

ENGLISH

1шт.

1

323694A1

DECAL

crush hazard

2шт.

2

L125910

DECAL

transmission oil level

1шт.

3

329047A1

DECAL

crush hazard

1шт.

4

328904A1

DECAL

pressurized system hazard

1шт.

5

332512A1

DECAL

fan

2шт.

6

315092A2

DECAL

maintenance chart, XT and Z-Bar loader

1шт.

7

334456A1

DECAL

starting in gear

1шт.

8

329044A1

WARNING DECAL,168mm x 88mm H

Hot Liquid Hazard

1шт.

9

315096A1

DECAL

fuse location

1шт.

10

251749A1

DECAL

read the operator's manual, no longer used, Order: P/N 382622A1

1шт.

10a

382622A1

DECAL,60mm x 90mm H

read the operator's manual, Replaces: P/N 251749A1

1шт.

11

321-7030

WARNING DECAL

Do Not Jump, If used

1шт.

11a

386241A1

WARNING DECAL

do not jump, if used

1шт.

12

328754A1

DANGER DECAL

crush hazard

1шт.

13

328752A1

DECAL

runover hazard

1шт.

14

329049A1

DECAL

block wheels

1шт.

15

335889A1

DECAL

pressurized system hazard

2шт.

16

364742A1

DECAL

check attachment

1шт.

REF

INSTRUCTION

PORTUGUESE

1шт.

1

334575A1

DECAL

crush hazard

2шт.

2

147109A1

DECAL

transmission oil level

1шт.

3

334572A1

DECAL

crush hazard

1шт.

4

334016A1

DECAL

pressurized system hazard

1шт.

5

334035A1

DECAL

fan

2шт.

6

315112A2

DECAL

maintenance chart, XT and Z-Bar loader

1шт.

7

334566A1

DECAL

starting in gear

1шт.

8

334665A1

WARNING DECAL

Hot Liquid Hazard

1шт.

9

318160A1

DECAL

fuse location

1шт.

10

334001A1

DECAL

read the operator's manual, no longer used, Order: P/N 334001A2

1шт.

10a

334001A2

DECAL

read the operator's manual, Replaces 334001A1

1шт.

11

124273A1

DECAL

do not jump, if used

1шт.

11a

386241A1

WARNING DECAL

do not jump, if used

1шт.

12

334676A1

DECAL

crush hazard

1шт.

13

334691A1

DECAL

runover hazard

1шт.

14

334703A1

DECAL

block wheels

1шт.

15

336009A1

DECAL

pressurized system hazard

2шт.

16

364920A1

DECAL

check attachment

1шт.

REF

INSTRUCTION

FRENCH

1шт.

1

334577A1

DECAL

crush hazard

2шт.

2

E133092

DECAL

transmission oil level

1шт.

3

334574A1

DECAL

crush hazard

1шт.

4

334012A1

DECAL

pressurized system hazard

1шт.

5

334033A1

DECAL

fan

2шт.

6

315104A2

DECAL

maintenance chart, XT and Z-Bar loader

1шт.

7

334568A1

DECAL

starting in gear

1шт.

8

334663A1

WARNING DECAL

Hot Liquid Hazard

1шт.

9

315097A1

DECAL

fuse location

1шт.

10

333999A1

DECAL

read the operator's manual, no longer used, Order: P/N 333999A2

1шт.

10a

333999A2

DECAL

read the Operator's Manual, Replaces: P/N 333999A1

1шт.

11

124269A1

DECAL

do not jump, if used

1шт.

11a

386241A1

WARNING DECAL

do not jump, if used

1шт.

12

334678A1

DECAL

crush hazard

1шт.

13

334686A1

DECAL

runover hazard

1шт.

14

334706A1

DECAL

block wheels

1шт.

15

336010A1

DECAL

pressurized system hazard

2шт.

16

364919A1

DECAL

check attachment

1шт.

REF

INSTRUCTION

SPANISH

1шт.

1

334576A1

DECAL

crush hazard

2шт.

2

E133053

DECAL

transmission oil level

1шт.

3

334573A1

DECAL

crush hazard

1шт.

4

334015A1

DECAL

pressurized system hazard

1шт.

5

334034A1

WARNING DECAL

Fan

2шт.

6

315108A2

DECAL

maintenance chart, XT and Z-Bar loader

1шт.

7

334567A1

DECAL

starting in gear

1шт.

8

334664A1

DECAL

hot liquid hazard

1шт.

9

315098A1

DECAL

fuse location

1шт.

10

334000A1

DECAL

read the operator's manual, no longer used, Order: P/N 334000A2

1шт.

10a

334000A2

DECAL

read the operator's manual, Replaces: P/N 334000A1

1шт.

11

124271A1

DECAL

do not jump, if used

1шт.

11a

386241A1

WARNING DECAL

do not jump, if used

1шт.

12

334677A1

DECAL

crush hazard

1шт.

13

334688A1

DECAL

runover hazard

1шт.

14

334704A1

DECAL

block wheels

1шт.

15

336011A1

DECAL

pressurized system hazard

2шт.

16

364918A1

DECAL

check attachment

1шт.
