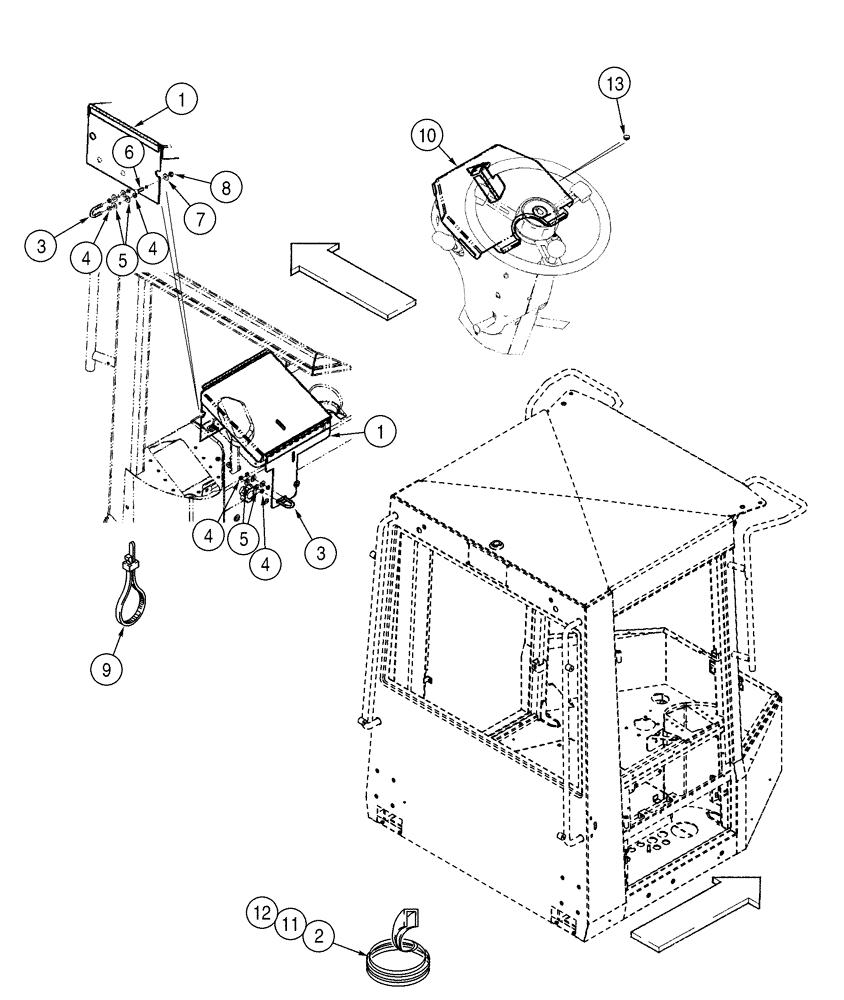

Запчасти Case 621C (09-060) - CANOPY, ROPS COVERS, NORTH AMERICA ONLY, ANTI-VANDALISM (09) - CHASSIS

372337A1

COVER ASSY

control, Includes: Refs. 1 and 2

1шт.

1

368162A1

COVER ASSY

1шт.

2

60-6359T1

GASKET

7-5/8 in, (194 mm), cut from P/N F64277X

2шт.

3

1977938C1

U-BOLT,1/4" - 20 x 1 7/16", Carbon Steel

BOLT "U" 1/4

2шт.

4

425-144

JAM NUT,Jam, 1/4"-20, G5

8шт.

5

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

8шт.

6

811-6025

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 25mm, Cl 8.8

3шт.

7

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

8

832-10406

NUT,M6 x 1, Cl 8

3шт.

9

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

362876A1

COVER ASSY

instrument cluster, Includes: Refs. 10 - 13

1шт.

10

362875A1

COVER ASSY

1шт.

11

60-6358T1

GASKET

TRIM, 2-1/2 in, (66 mm), cut from P/N F64277X

6шт.

12

70-5848T1

SEAL

TRIM, 5-1/2 in, (140 mm), cut from P/N F64277X

1шт.

13

362869A1

SPACER

4шт.
