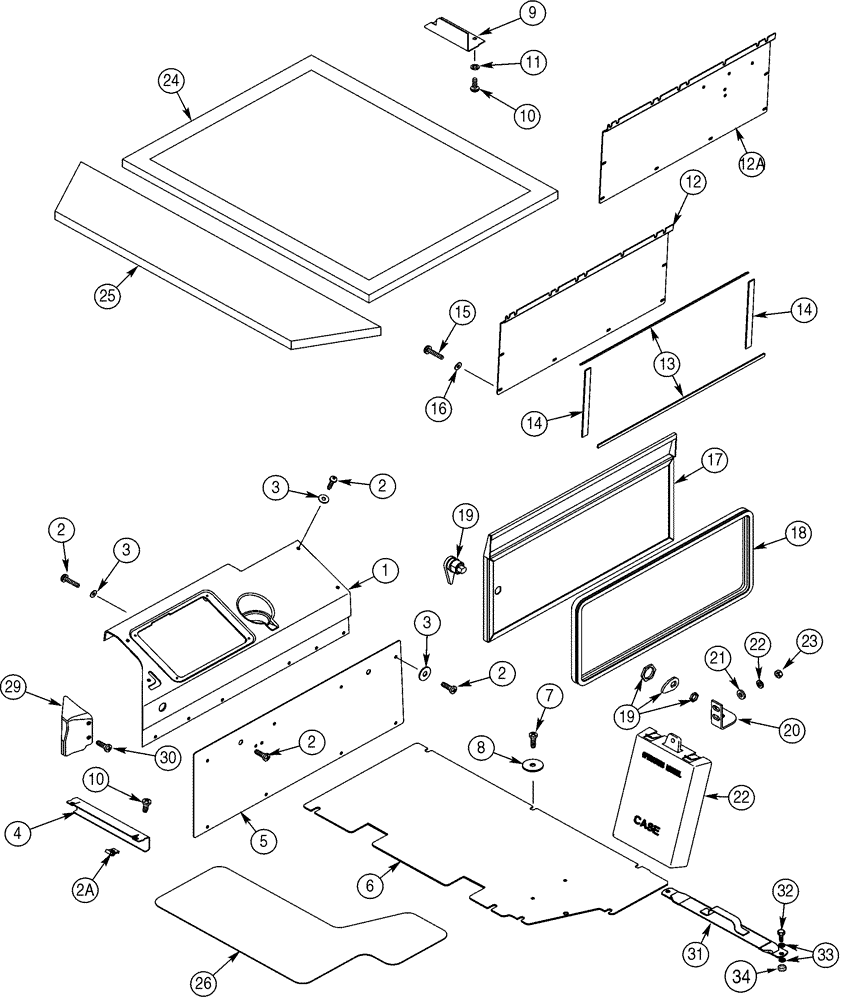

Запчасти Case 621C (09-059) - CANOPY, ROPS COVERS ASN JEE0093239, NORTH AMERICA ONLY (09) - CHASSIS

1

361689A1

BRACKET

CONTROL control, see note

1шт.

2

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

16шт.

2a

833-40306

SPRING NUT,M6, U

2шт.

3

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

14шт.

4

333631A1

COVER

Panel, Front

1шт.

5

361331A2

PANEL

CONSOLE

1шт.

6

294765A1

COVER

rear, floor

1шт.

7

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

Special

8шт.

8

1990503C1

WASHER

special

8шт.

9

324533A1

PANEL

PLATE cover, harness access

1шт.

10

297850A1

SCREW,Cross Pan Hd, M6 x 16

Special

4шт.

11

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

special, M6

2шт.

12

361332A1

PANEL

access, no longer available, Order: P/N 380766A1

1шт.

12a

380766A1

PANEL

access, Replaces: P/N 361332A1

1шт.

13

187787C1

SEALING STRIP

access panel, top, 23-5/8 in, (600 mm), cut from P/N 180624C1

2шт.

14

187782C1

SEALING STRIP

access panel, side

2шт.

15

297850A1

SCREW,Cross Pan Hd, M6 x 16

Special

6шт.

16

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

6шт.

17

237718A1

DOOR

access

1шт.

18

238856A2

DOOR SEAL,1786mm L

70-5/16 in, (1786 mm)

1шт.

19

255065A1

LATCH

1шт.

20

221104A1

LATCH

Catch, Door

1шт.

21

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

Special

2шт.

22

892-11006

LOCK WASHER,M6

2шт.

23

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

24

302851A1

ROOF LINING

HEADLINER rear, canopy roof

1шт.

25

302852A1

ROOF LINING

front, canopy roof

1шт.

26

L126989

FLOOR MAT

non skid

1шт.

27

R46464

CASE

BOX manual

1шт.

28

151-522

RIVET,Pop, 3/16" x .575"

3шт.

29

279517A2

COVER

harness

1шт.

30

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

Special

2шт.

31

348580A1

STRAP

storage

1шт.

32

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

33

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

34

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
