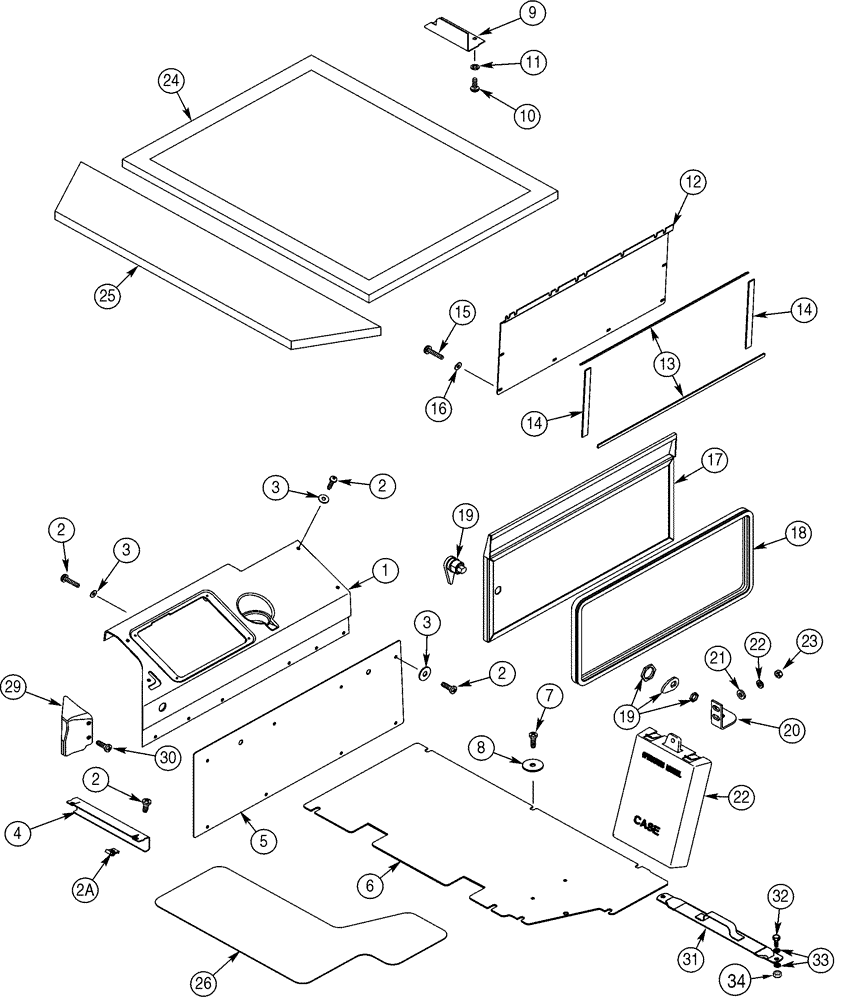

Запчасти Case 621C (09-058) - CANOPY, ROPS COVERS BSN JEE0093238, NORTH AMERICA ONLY (09) - CHASSIS

1

284764A1

BRACKET

CONSOLE control, see note

1шт.

2

239111A1

SCREW,Cross Pan Hd, M4 x 18mm

16шт.

2a

833-40306

SPRING NUT,M6, U

2шт.

3

239186A1

WASHER

4.3 x 12 x 0.8 mm

16шт.

4

333631A1

COVER

Front

1шт.

5

238681A1

SHEET

CONSOLE

1шт.

6

294765A1

COVER

floor

1шт.

7

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

Special

8шт.

8

1990503C1

WASHER

special

8шт.

9

324533A1

PANEL

PLATE cover, harness access

1шт.

10

297850A1

SCREW,Cross Pan Hd, M6 x 16

Special

2шт.

11

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

M6

2шт.

12

324532A1

PANEL

access

1шт.

13

187787C1

SEALING STRIP

23-5/8 in, (600 mm), access panel, top, cut from P/N 180624C1

2шт.

14

187782C1

SEALING STRIP

access panel, side, Replaces: P/N 239814A1

2шт.

15

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

Special

6шт.

16

239186A1

WASHER

special, 4.3 x 12 x 0.8 mm

6шт.

17

237718A1

DOOR

access

1шт.

18

238856A2

DOOR SEAL,1786mm L

70-5/16 in, (1786 mm)

1шт.

19

255065A1

LATCH

1шт.

20

221104A1

LATCH

Door

1шт.

21

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

Special

2шт.

22

892-11006

LOCK WASHER,M6

2шт.

23

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

24

302851A1

ROOF LINING

HEADLINER rear, canopy roof

1шт.

25

302852A1

ROOF LINING

front, canopy roof

1шт.

26

L126989

FLOOR MAT

non skid

1шт.

27

R46464

CASE

BOX manual

1шт.

28

151-522

RIVET,Pop, 3/16" x .575"

3шт.

29

279517A2

COVER

harness

1шт.

30

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

Special

2шт.

31

348580A1

STRAP

storage

1шт.

32

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

33

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

34

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
