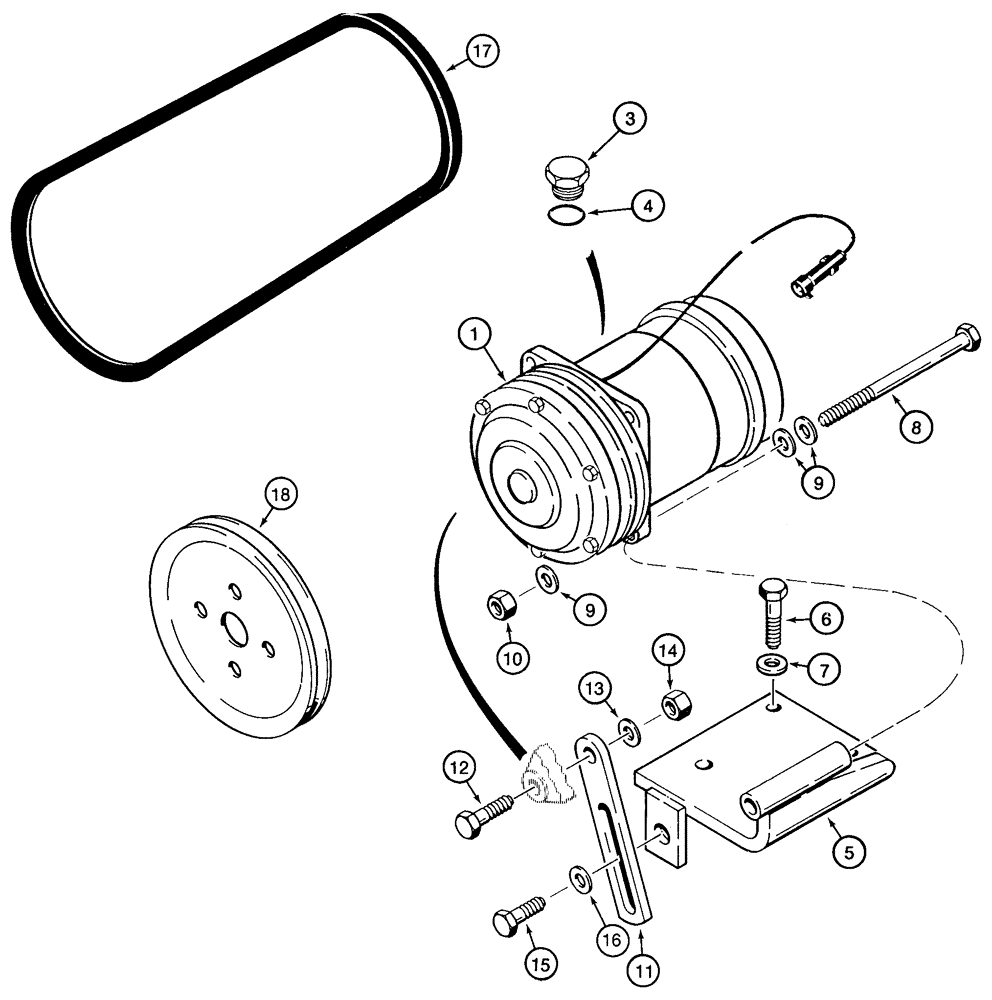

Запчасти Case 621C (09-057) - AIR CONDITIONING COMPRESSOR MOUNTING (09) - CHASSIS

1990760C1

COMPRESSOR

ASSY., air conditioning, Consists of: Refs. 1 - 4

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

621C (1/99), Reman for new P/N 1990760C1

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

COMPRESSOR, component parts not serviced separately

1шт.

2

138886A1

CLUTCH

compressor, not shown

1шт.

3

A49667

PLUG

hex

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

5

84711C1

SUPPORT

BRACKET compressor mounting

1шт.

6

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

7

892-11010

LOCK WASHER,M10

Replaces P/N 895-11010

3шт.

8

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

3шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

11

84716C1

SUPPORT

STRAP adjusting

1шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

15

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

17

S82985

V-BELT,36.70" L

Compressor drive

1шт.

18

A189155

PULLEY

compressor drive

1шт.
