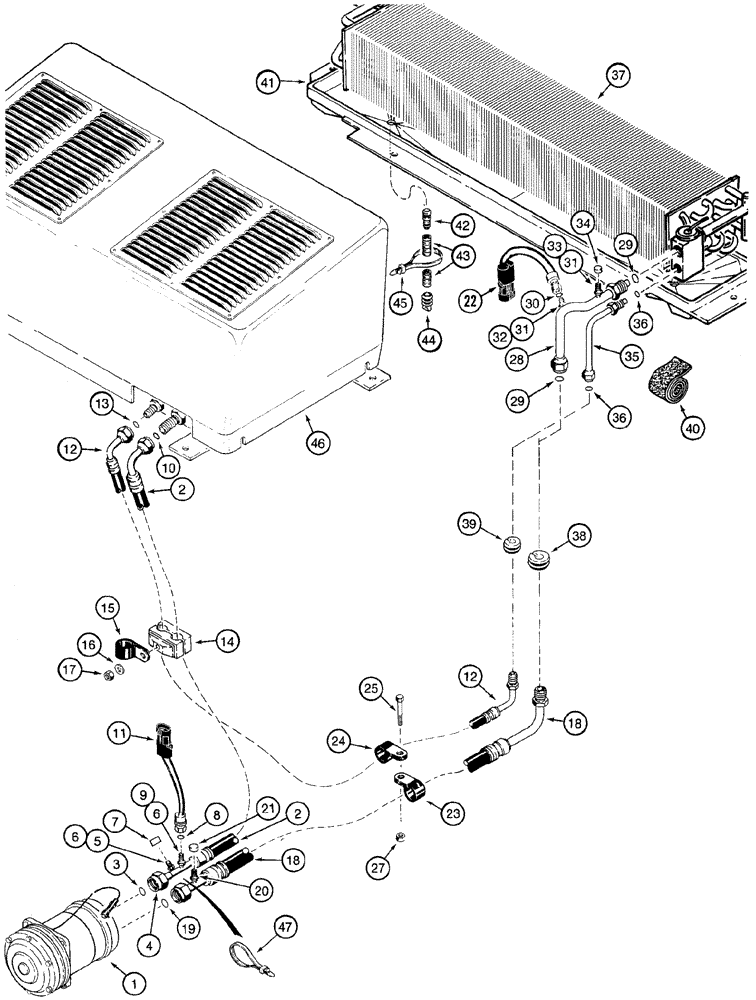

Запчасти Case 621C (09-055) - AIR CONDITIONING, COMPRESSOR TO CONDENSER AND EVAPORATOR CORE (09) - CHASSIS

1

1990760C1

COMPRESSOR

ASSY., air conditioning, component parts not serviced separately, See figure 09-057 for clutch

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

621C (1/99), Reman for new P/N 1990760C1

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

2

133507A1

HOSE ASSY.

46-3/4 in, (1185mm), supply, compressor to condenser, Includes: Refs.3 - 10

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16, at compressor outlet port

1шт.

4

NSS

NOT SOLD SEPARAT

NUT

1шт.

5

NSS

NOT SOLD SEPARAT

FITTING

1шт.

6

1250594C1

CORE

2шт.

7

122554A1

CAP

1шт.

8

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

9

122081A1

FITTING,M10 x 1.25 x 26.43mm L

1шт.

10

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16, at condenser inlet port

1шт.

11

232948A1

SWITCH, A/C HIGH PRE

1шт.

12

233051A1

HOSE ASSY.

84-3/4 in, (2150 mm), return, condenser to evaporator core, Includes: Ref. 13

1шт.

13

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

14

L115095

CLAMP

double

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

18

294084A2

HOSE ASSY.

72 in, (1830 mm), evaporator core to compressor inlet port, Includes: Refs.19 - 21

1шт.

19

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16, at compressor inlet port

1шт.

20

1250594C1

CORE

1шт.

21

122553A1

CAP

1шт.

22

122579A1

SWITCH, A/C LOW PRES

Low

1шт.

23

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

24

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

25

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

28

104399A1

TUBE

upper, Includes: Refs. 29 - 34

1шт.

29

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

30

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

31

1250594C2

CORE

Replaces: P/N 1250594C1

2шт.

32

NSS

NOT SOLD SEPARAT

FITTING

1шт.

33

NSS

NOT SOLD SEPARAT

FITTING

1шт.

34

122553A1

CAP

1шт.

35

104400A1

TUBE,0.375" OD, 115, 53 mm Length

lower, Includes: Ref. 36

1шт.

36

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

37

233424A1

HEATER

heating and air conditioning, See figure 9-227

1шт.

38

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

Upper Tube

1шт.

39

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

Lower tube

1шт.

40

83822C1

TAPE

24 in, (610 mm), air conditioning core tubes, valve, and hoses, cut from P/N 1954475C1

1шт.

41

1339577C3

PAN

condensation, See figure 9-227 for seals and mounting

1шт.

42

1250522C3

FITTING

drain, Serial Range: hose-housing

2шт.

43

1977334C1

HOSE

24-1/8 in, (610 mm), drain, from condensation pan, cut from P/N 198091C1

2шт.

44

109239C2

CHECK VALVE

2шт.

45

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

4шт.

46

178301A1

ASSEMBLY

See figures 9-241 - 9-245

1шт.

47

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.
