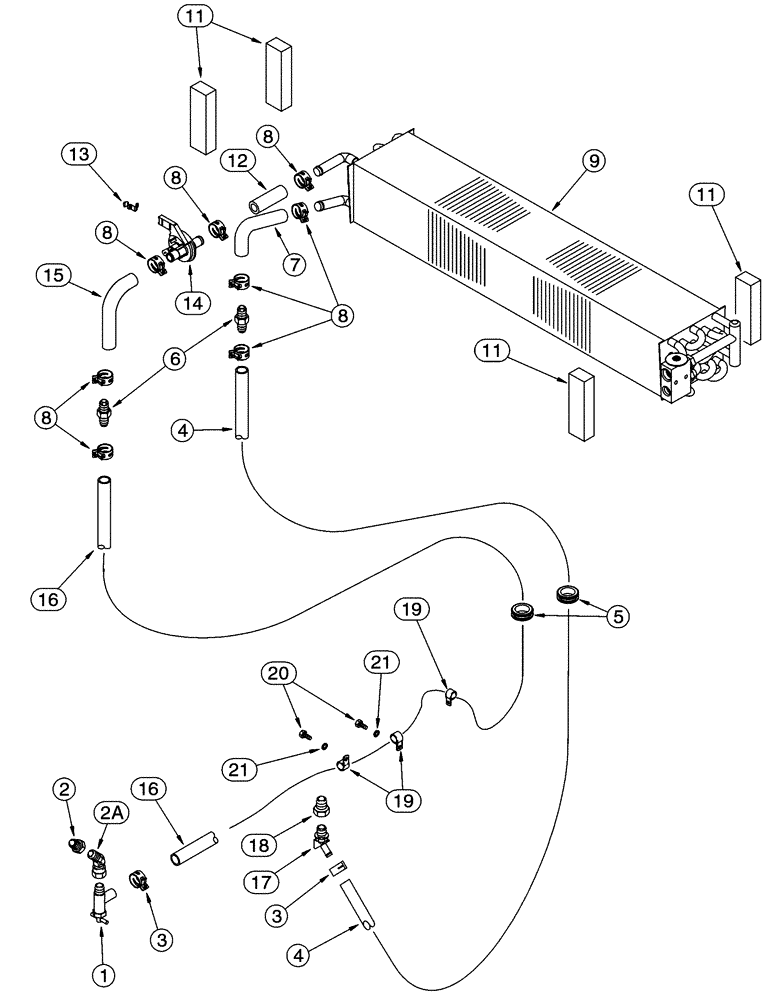

Запчасти Case 621C (09-054) - HEATING SYSTEM (09) - CHASSIS

1

301803R1

SHUT-OFF VALVE

1шт.

2

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

1шт.

2a

217-1087

ELBOW,45 Degree, 3/8"-18 Female x 3/8"-18 Male

Europe only

1шт.

3

1954736C1

HOSE CLAMP,#24

2шт.

4

1327782C2

LARGE HOSE,15.50 mm ID x 3302.00 mm

HOSE,LARGE Supply, With white stripe, Cut from 97252CX

1шт.

5

L116914

GROMMET

heater hoses

2шт.

6

1301342C1

FITTING

ADAPTER

2шт.

7

233213A1

HEATER HOSE,15.00 mm ID x 160.00 mm

Supply, Special

1шт.

8

1954736C1

HOSE CLAMP,#24

8шт.

9

233424A1

HEATER

CORE ASSY., heating and air conditioning, See figure 9-207, Refs. 6 - 9

1шт.

10

234325A1

HEATER

models with heater only, not shown

1шт.

11

1340075C2

SEAL

SEAL, 5-1/8 in, (130 mm), core end, cut from P/N 1999750C1

4шт.

12

R54967

HEATER HOSE,15.50 mm ID x 70.00 mm

Return, Cut from P/N 97252CX

1шт.

13

1954626C1

SPRING CLIP

CLIP heater cable retaining

1шт.

14

1331087C1

HEATER VALVE

ASSY., control

1шт.

15

233224A1

HEATER HOSE,15.00 mm ID x 174.00 mm

Return, Special

1шт.

16

1327781C2

HOSE,15.50 mm ID x 2921.00 mm

Return, Cut from 97252CX

1шт.

17

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

18

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

3/4 x 1/2 fem

1шт.

19

515-23254

CLAMP,1", Insul, 3/8" Bolt

3шт.

20

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.

21

892-11012

LOCK WASHER,M12

2шт.
