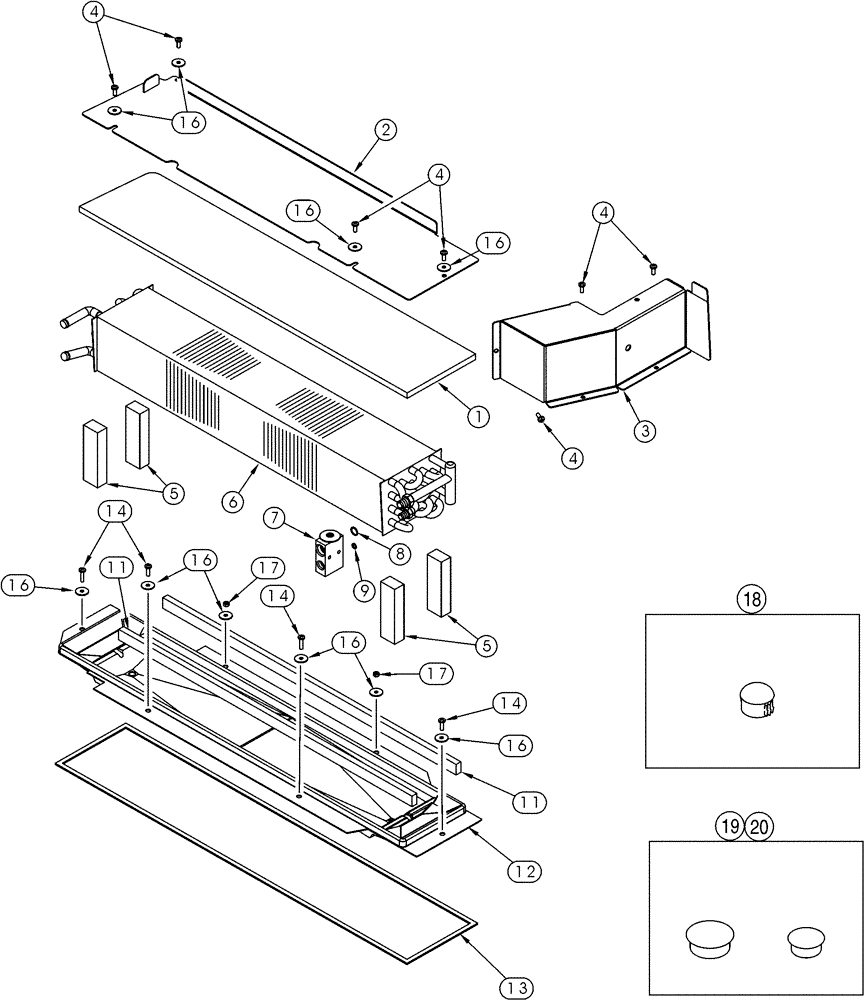

Запчасти Case 621C (09-053) - HEATER AIR CONDITIONING CORE (09) - CHASSIS

1

239943A1

COVER

core, upper

1шт.

2

197696A1

COVER

core

1шт.

3

184680A1

COVER

expansion valve

1шт.

4

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

Pointed

7шт.

5

1340075C2

SEAL

SEAL core end, 5-1/8 in, (130 mm), cut from P/N 1999750C1

4шт.

233424A1

HEATER

CORE ASSY., heating and air conditioning, Consists of: Refs. 6 - 9

1шт.

6

233425A1

HEATER

CORE, See Ref. 10 for core used with heater only

1шт.

7

1990756C2

VALVE

expansion

1шт.

8

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

9

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

10

234325A1

HEATER

CORE, models with heater only, not shown

1шт.

11

98357C1

SEALING STRIP

bottom of drip pan, 31-3/32 in, (790 mm), cut from P/N 98390C1

2шт.

12

1339577C3

PAN

TRAY condensation

1шт.

13

1977907C1

SEAL

87-1/8 in, (2213 mm), floor under condensation tray, cut from P/N 187874C2

1шт.

14

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Replaces 840-1620

4шт.

16

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

9шт.

17

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

18

353-404

PLUG,Dome, .500" hole, Nylon

If Used

2шт.

19

205-105

HOLE PLUG BUTTON,1"

if used

1шт.

20

205-123

HOLE PLUG BUTTON,1 1/4"

if used

1шт.
