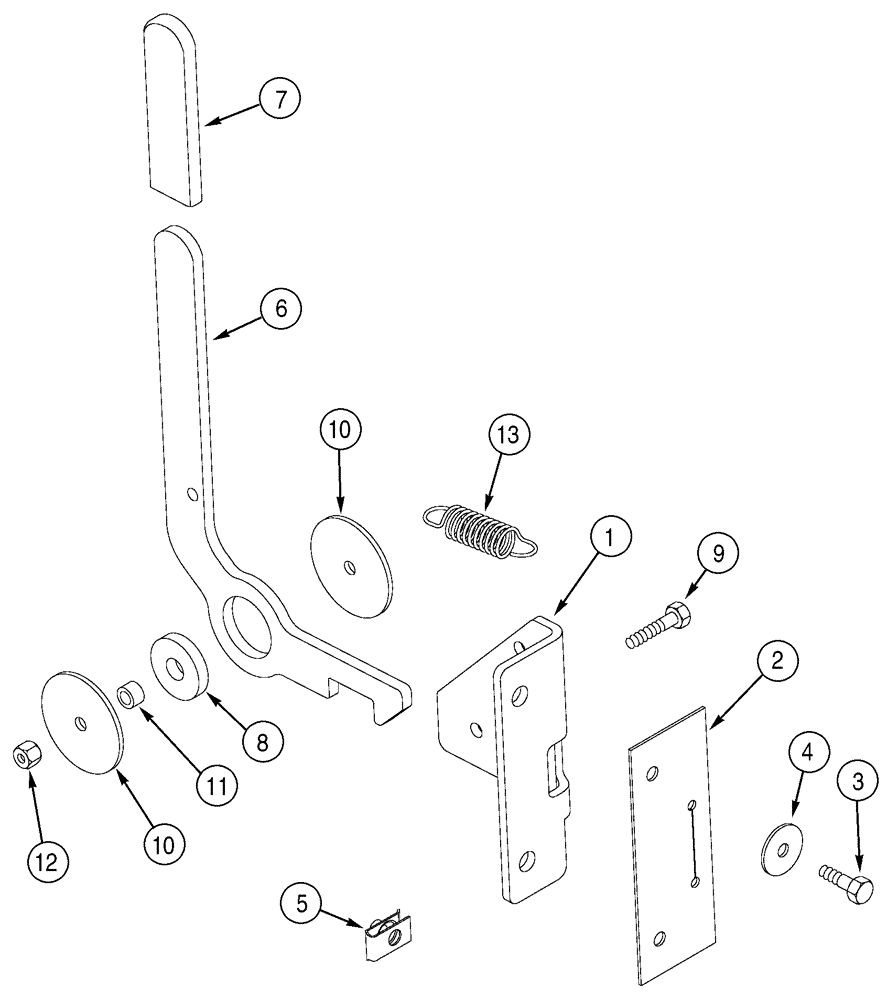

Запчасти Case 621C (09-051) - WINDOW CATCH (09) - CHASSIS

1

231482A1

SUPPORT

BRACKET window catch

1шт.

2

231537A1

SEAL

BRACKET

1шт.

3

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

4

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

5

833-40306

SPRING NUT,M6, U

2шт.

6

324173A2

LATCH ASSY.

window catch, Replaces: P/N 324173A1

1шт.

7

1339797C1

GRIP

black plastic

1шт.

8

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

handle

1шт.

9

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

10

321234A1

WASHER

special

2шт.

11

324286A1

SPACER

BUSHING

1шт.

12

832-10406

NUT,M6 x 1, Cl 8

1шт.

13

A163012

SPRING

return

1шт.
