Запчасти Case 621C (09-047) - CAB HEATER AND AIR CONDITIONING FILTERS (09) - CHASSIS

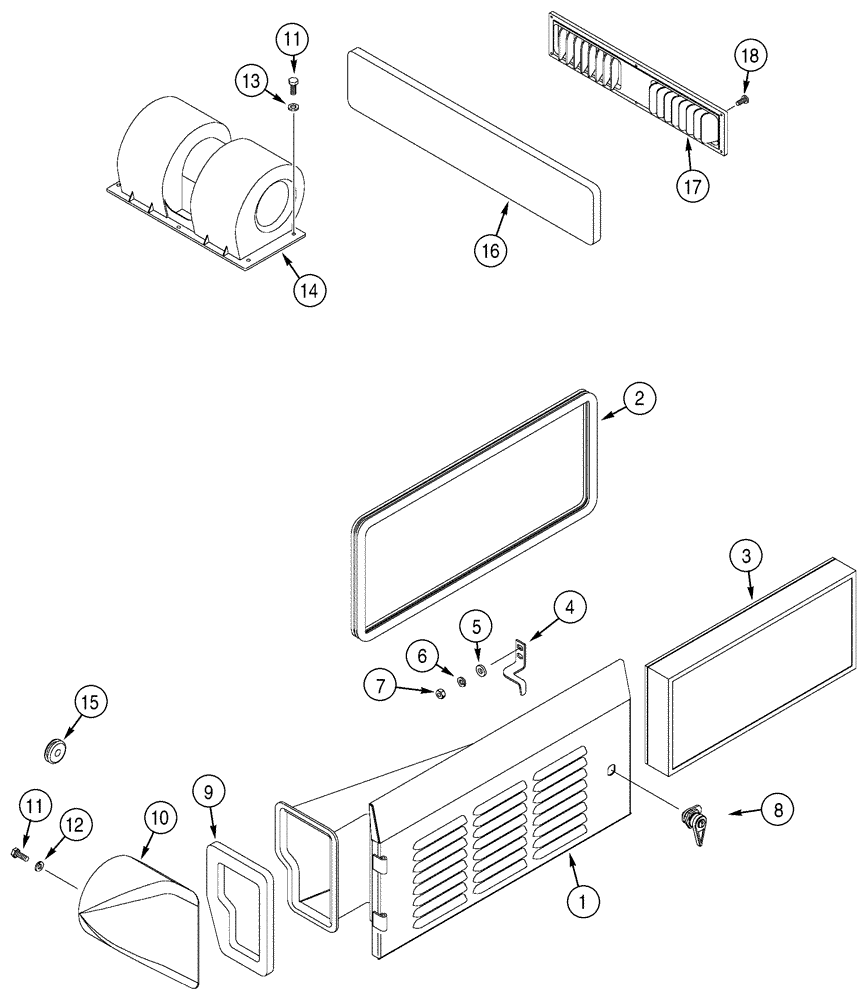

Схема запчастей Case 621C - (09-047) - CAB HEATER AND AIR CONDITIONING FILTERS (09) - CHASSIS
18
12
13
7
2
17
5
16
14
9
11
1
15
10
4
3
8
11
6

Артикул

Название

Примечание

Количество

1

228359A2

DOOR ASSY.

filter, Replaces: P/N 228359A1

1шт.

2

238856A2

DOOR SEAL,1786mm L

70-5/16 in, (1786 mm), Replaces: P/N 238856A1

1шт.

3

330014A1

CAB FILTER

fresh air

1шт.

4

221104A1

LATCH

Filter Door

1шт.

5

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

2шт.

6

892-11006

LOCK WASHER,M6

2шт.

7

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

8

255065A1

LATCH

filter door

1шт.

9

232508A1

FOAM INSULATION

elbow to filter door

1шт.

10

192391A1

ELBOW

air supply

1шт.

11

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

8шт.

12

892-11006

LOCK WASHER,M6

4шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

14

360157A1

BLOWER ASSY.,24V - 3 Spd

cab air, component parts not serviced separately, Replaces: P/N 234794A1

1шт.

15

1546465C1

GROMMET

1шт.

16

257463A1

FILTER

recirculation

1шт.

17

1331102C2

DIFFUSER

air recirculation, if used

1шт.

18

239111A1

SCREW,Cross Pan Hd, M4 x 18mm

Used with 17, Replaces P/N 1535651C1

6шт.

Выбрано товаров: 18
