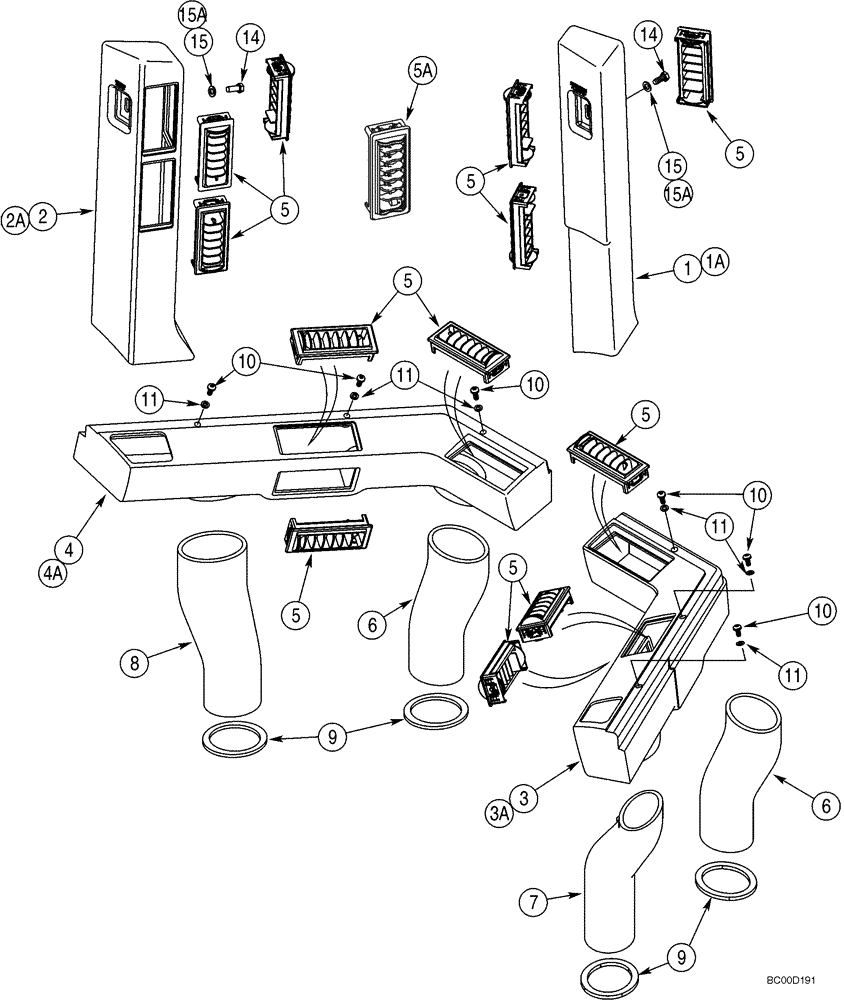

Запчасти Case 621C (09-046) - CAB PLENUMS, DUCTS AND LOUVERS (09) - CHASSIS

1

226332A1

CONDUIT

DUCT vertical plenum, right hand, if used

1шт.

1a

369713A1

AIR DUCT

DUCT vertical plenum, right hand, if used

1шт.

2

226330A1

CONDUIT

DUCT vertical plenum, left hand, if used

1шт.

2a

369714A1

PLASTIC

DUCT vertical plenum, left hand,if used

1шт.

3

226331A1

CONDUIT

DUCT front plenum, right hand, if used

1шт.

3a

369715A1

PLASTIC

DUCT front plenum, right hand, if used

1шт.

4

226329A1

CONDUIT

DUCT front plenum, left hand, if used

1шт.

4a

369716A1

PLASTIC

DUCT front plenum, left hand, if used

1шт.

5

1990950C2

VENT

LOUVER, used with Refs. 1, 2, 3, and 4

12шт.

5a

363921A1

VENT

LOUVER, used with Refs. 1A, 2A, 3A, and 4A

12шт.

6

275495A1

AIR DUCT

floor, front plenum, center

2шт.

7

275498A1

AIR DUCT

floor, front plenum, right hand

1шт.

8

275497A1

AIR DUCT

floor, front plenum, left hand

1шт.

9

233308A1

GASKET

floor duct

4шт.

10

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

6шт.

11

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

special, M6

6шт.

14

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Used with Ref. 1, 2

2шт.

15a

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Used with Ref. 1A, 2A

2шт.
