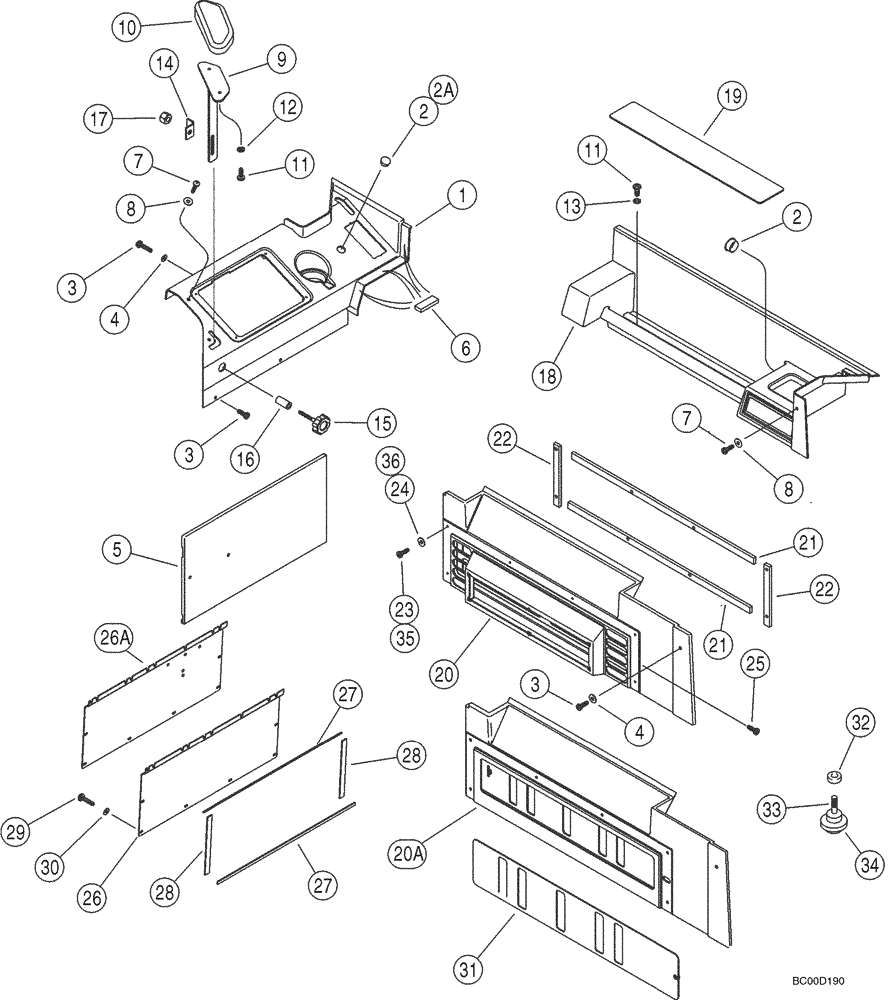

Запчасти Case 621C (09-044) - COVERS CONSOLE AND WRIST SUPPORT, CAB MODELS (09) - CHASSIS

1

256122A2

CONSOLE

control, Replaces: P/N 256122A1

1шт.

2

353-410

PLUG,Dome, .875" hole, Nylon

1-2шт.

2a

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

3

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

Special, Replaces P/N 239111A1

5шт.

4

1990502C1

WASHER

1/4 x 13/16 x 1/16 in, Replaces: P/N 239186A1

3шт.

5

257460A2

PADDING

console

1шт.

6

327332A1

SEAL

2-1/4 in, (56 mm)

3шт.

7

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

Special, Replaces P/N 297851A1

3шт.

8

1990502C1

WASHER

1/4 x 13/16 x 1/16 in, Replaces: P/N 239186A1

3шт.

9

221102A1

SUPPORT

wrist

1шт.

10

221103A1

PAD

wrist support

1шт.

11

297850A1

SCREW,Cross Pan Hd, M6 x 16

Special

4шт.

12

892-11006

LOCK WASHER,M6

2шт.

13

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

M6

2шт.

14

221125A1

RETAINER

wrist support

1шт.

15

221251A1

KNOB

adjusting

1шт.

16

221126A1

SPACER

1шт.

17

231-1445

NUT,5/16"-18, GB

1шт.

18

257459A1

BRACKET

rear storage

1шт.

19

257461A1

PAD

1шт.

20

257462A4

PAD

filter recirculation, if used, Replaces: P/N 257462A3

1шт.

20a

367505A1

PLASTIC

filter recirculation, if used

1шт.

21

327131A1

FOAM INSULATION,20mm W x 685.1mm L x 8.5mm Thk

BOX blower, top

2шт.

22

327132A1

FOAM INSULATION,20mm W x 196mm L x 8.5mm Thk

BOX blower, side

2шт.

23

239108A1

SCREW,Cross Pan Hd, M4 x 25mm

Special, used with Ref. 20

6шт.

24

239186A1

WASHER

4.3 x 12 x 0.8 mm, used with Ref. 20

6шт.

25

760-14113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

If Used

2шт.

26

361332A1

PANEL

access, Replaces: P/N 324532A1, no longer available, Order: P/N 380766A1

1шт.

26a

380766A1

PANEL

access, Replaces: P/N 361332A1

1шт.

27

187787C1

SEALING STRIP

access panel, top, 23-5/8 in, (600 mm), cut from P/N 180624C1

2шт.

28

187782C1

SEALING STRIP

access panel, side, Replaces: P/N 239814A1

2шт.

29

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

Special

6шт.

30

239186A1

WASHER

4.3 x 12 x 0.8 mm

6шт.

31

367817A1

PLATE

louver, used with Ref. 20A

1шт.

32

374646A1

SPACER

used with Ref. 20A

1шт.

33

60-4135T1

STUD,1/4" - 20 x 1-7/16"

used with Ref. 20A

1шт.

34

60-4136T1

KNOB

used with Ref. 20A

1шт.

35

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

Used with 20A

6шт.

36

195-81029

WASHER,#10

(7/32 x 7/16 x 1/16"), Used with Ref.20A

6шт.
