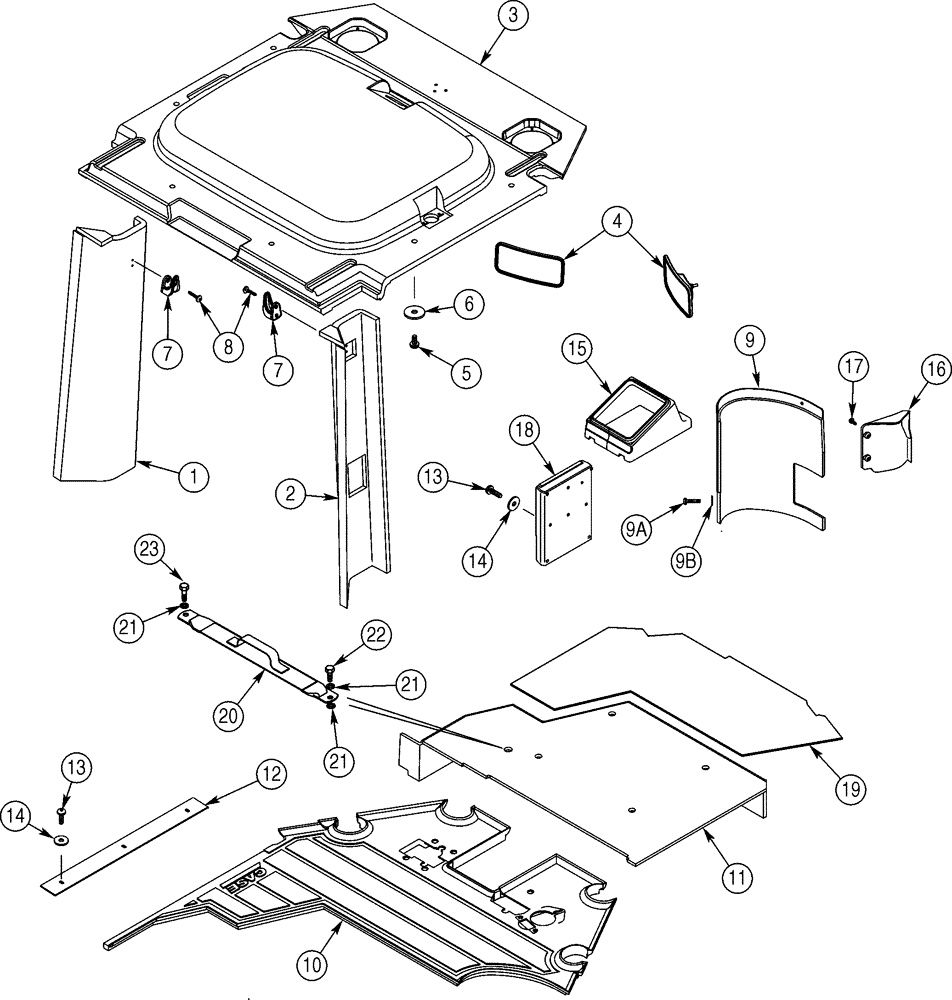

Запчасти Case 621C (09-042) - CAB INTERIOR (09) - CHASSIS

1

231862A1

COVER

rear post, left hand

1шт.

2

231863A1

COVER

rear post, right hand

1шт.

3

253321A2

PADDING

cab roof

1шт.

4

A177462

MIRROR

rear view

2шт.

5

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

6шт.

6

1990503C1

WASHER

special

6шт.

7

114549A1

COAT HOOK

2шт.

8

1276118C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

Pointed

4шт.

9

197494A1

PADDING

tower

1шт.

9a

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

Replaces P/N 239111A1

1шт.

9b

1990502C1

WASHER

1/4 x 13/16 x 1/16 in, Replaces: P/N 239186A1

1шт.

10

234002A2

CARPET

front

1шт.

11

234003A2

FLOOR MAT

platform

1шт.

12

279565A1

PROTECTION STRIP

1шт.

13

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

5шт.

14

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

5шт.

15

234004A1

BOOT

steering pedestal

1шт.

16

279517A2

COVER

HARNESS

1шт.

17

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

Special, Replaces: P/N 1535651C1

2шт.

18

97079C3

BOX

manual

1шт.

19

346600A1

PAD

protective

1шт.

20

348580A1

STRAP

storage

1шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

22

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

23

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.
