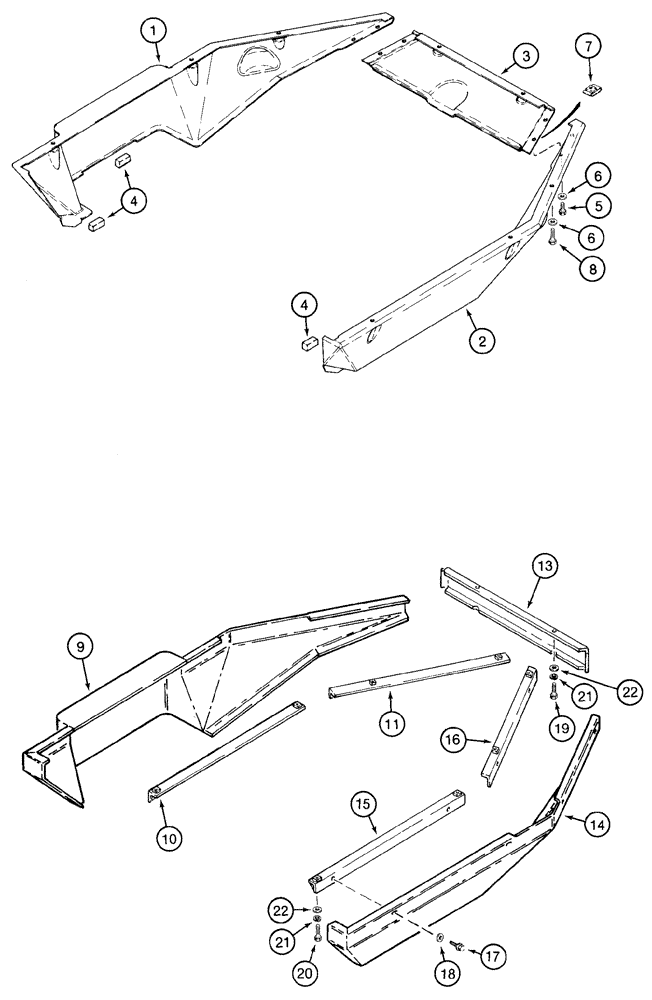

Запчасти Case 621C (09-040) - COVERS - CAB AND CANOPY, LOWER, PLASTIC COVERS (09) - CHASSIS

1

L129054

SKIRT

COVER left hand

1шт.

2

L129055

SKIRT

COVER right hand

1шт.

3

L129056

SKIRT

COVER center

1шт.

4

L129961

SEALING STRIP

adhesive back, 2 in, (51 mm)

3шт.

5

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

12шт.

7

833-40308

SPRING NUT,M8, U

4шт.

8

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

9

L126620

COVER

left hand, metal covers

1шт.

10

322010A1

SUPPORT

BRACKET, left hand rear, metal covers

1шт.

11

322012A1

SUPPORT

BRACKET, left hand front, metal covers

1шт.

13

L129618

SHEET

center, metal covers

1шт.

14

L125718

COVER

skirt, right hand, metal covers

1шт.

15

322009A1

SUPPORT

BRACKET, right hand rear, metal covers

1шт.

16

322011A1

SUPPORT

BRACKET, right hand front, metal covers

1шт.

17

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

Metal covers

8шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Metal Covers

8шт.

19

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Metal covers

2шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

Metal covers

8шт.

21

892-11008

LOCK WASHER,8mm ID

Metal covers

10шт.

22

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Metal covers

10шт.
