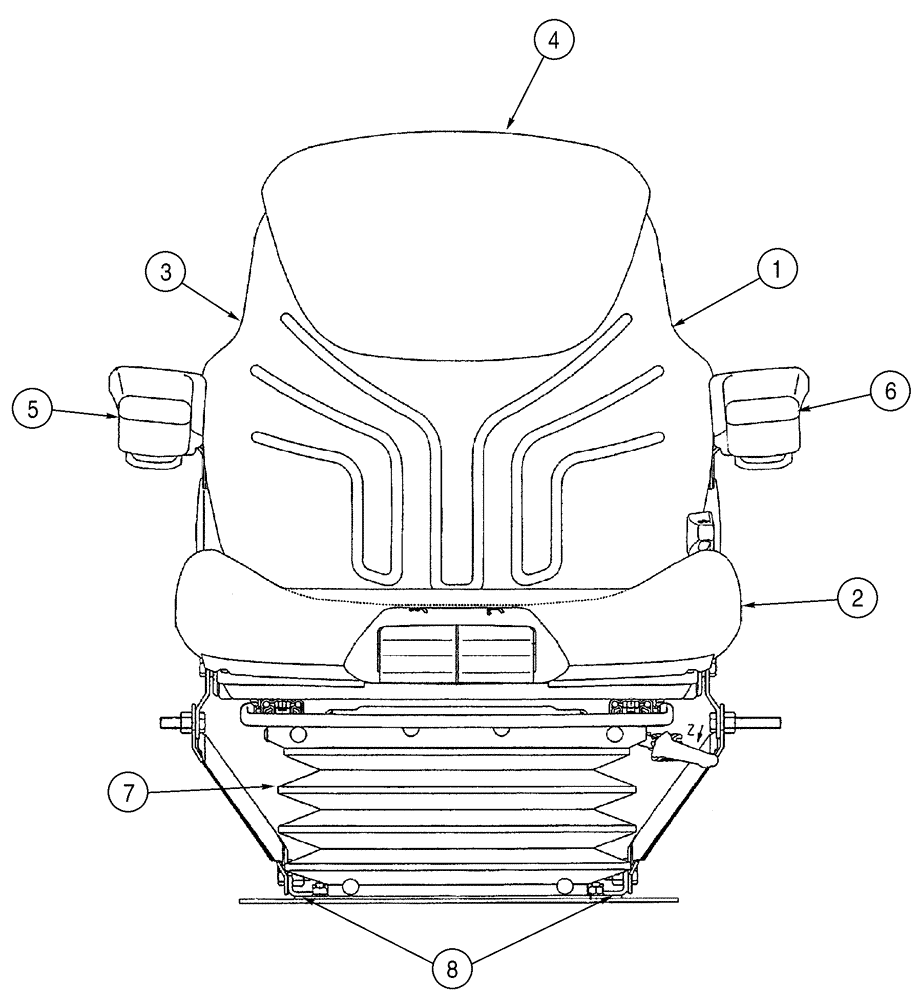

Запчасти Case 621C (09-038) - SEAT ASSY, AIR SUSPENSION (09) - CHASSIS

399259A1

DRIVER SEAT

ASSY., cloth, air suspension, Includes: Refs. 1 - 27, Replaces P/N 328476A1

1шт.

1

345724A1

CUSHION

backrest, See figure 9-151, Ref. 1, 2

1шт.

2

345725A1

CUSHION

seat, See figure 9-151, Ref. 3, 4

1шт.

3

345764A1

BACKREST

cover plate, See figure 9-151, Ref. 5-7

1шт.

4

345727A1

SEAT HEADREST

Cushion

1шт.

5

398152A1

ARMREST

right hand, component parts not available at time of printing

1шт.

6

398151A1

ARMREST

left hand, component parts not available at time of printing

1шт.

7

398149A1

COVER

component parts not available at time of printing

1шт.

399259A1

DRIVER SEAT

cloth, air suspension, Includes: Refs. 1-27, Replaces: P/N 328476A1

1шт.

8

345783A1

RAIL ASSY.

KIT seat slide rails, See figure 9-155, Ref. 45

1шт.

9

345767A1

SUPPORT

KIT lumbar, not illustrated, See figure 9-155, Ref. 31-40

1шт.

10

345747A1

FRAME

not illustrated, See figure 9-155, Refs. 41-41B

1шт.

11

345785A1

KIT

Tether, not illustrated, See figure 9-155, Ref. 44

1шт.

12

345778A1

REPAIR KIT

Hardware, backrest adjustment, not illustrated, See figure 9-153, Ref. 9-19

1шт.

13

300521A1

REPAIR KIT

Parts, not illustrated, See figure 9-167

1шт.

399259A1

DRIVER SEAT

ASSY., cloth, air suspension, Includes: Refs. 1 - 27, Replaces: P/N 328476A1

1шт.

14

345109A1

KIT

Arm, not illustrated, See figure 9-163, Refs. 27-37

1шт.

15

345131A1

STOP

KIT, not illustrated, See figure 9-161, Refs. 22-25

1шт.

16

345114A1

REPAIR KIT

Air spring, not illustrated, See figure 9-163, Refs. 38-43

1шт.

17

345125A1

AIR COMPRESSOR KIT

not illustrated, See figure 9-163, Refs. 44-51

1шт.

18

398142A1

LEVER

control, not illustrated, component parts not available at time of printing

1шт.

399259A1

DRIVER SEAT

ASSY., cloth, air suspension, Includes: Refs. 1 - 27, Replaces: P/N 328476A1

1шт.

19

254782A1

KIT

Air, Includes: Refs. 20, 21, not illustrated, component parts not available at time of printing

1шт.

20

3225292R1

PLUG

CLIP

12шт.

21

60-4895T1

CLAMP

2шт.

22

398150A1

SHOCK ABSORBER

KIT, not illustrated, component parts not available at time of printing

1шт.

23

398148A1

BASE

PLATE ASSY., not illustrated, component parts not available at time of printing

1шт.

24

398143A1

CABLE

not illustrated

1шт.

25

398146A1

CABLE

not illustrated

1шт.

26

398546A1

SUSPENSION

upper, not illustrated

1шт.

27

398147A1

SUSPENSION

24V, not illustrated

1шт.
